Chevy Truck
>>
2002
>>
S10/T10 Blazer 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C401-C433
>>

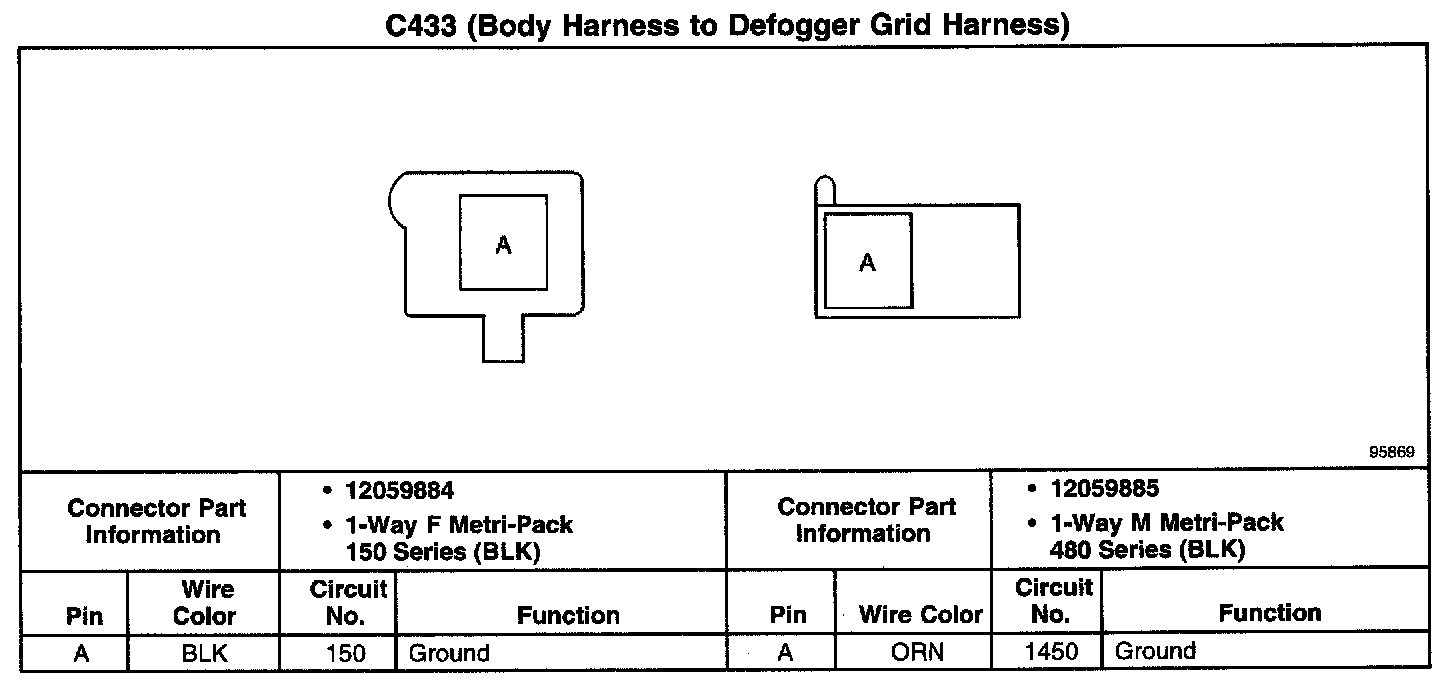

C433 (Body Harness to Defogger Grid Harness)
C433 (Body Harness to Defogger Grid Harness)
C433 (Body Harness To Defogger Grid Harness):
