NVG 233/243-NP1 (Two Speed Selectable)
Transfer Case Control Component Views

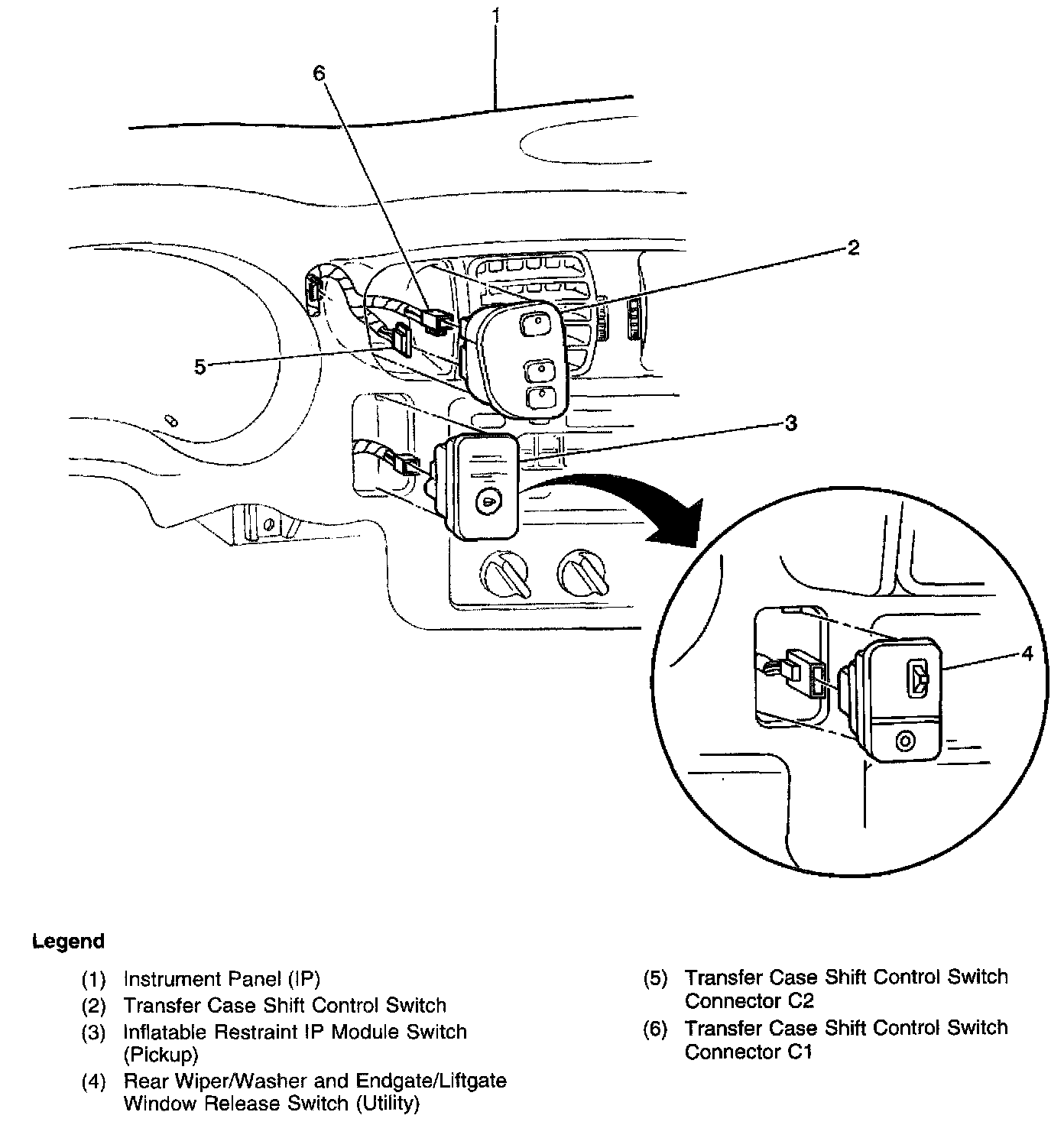

IP Center Switch

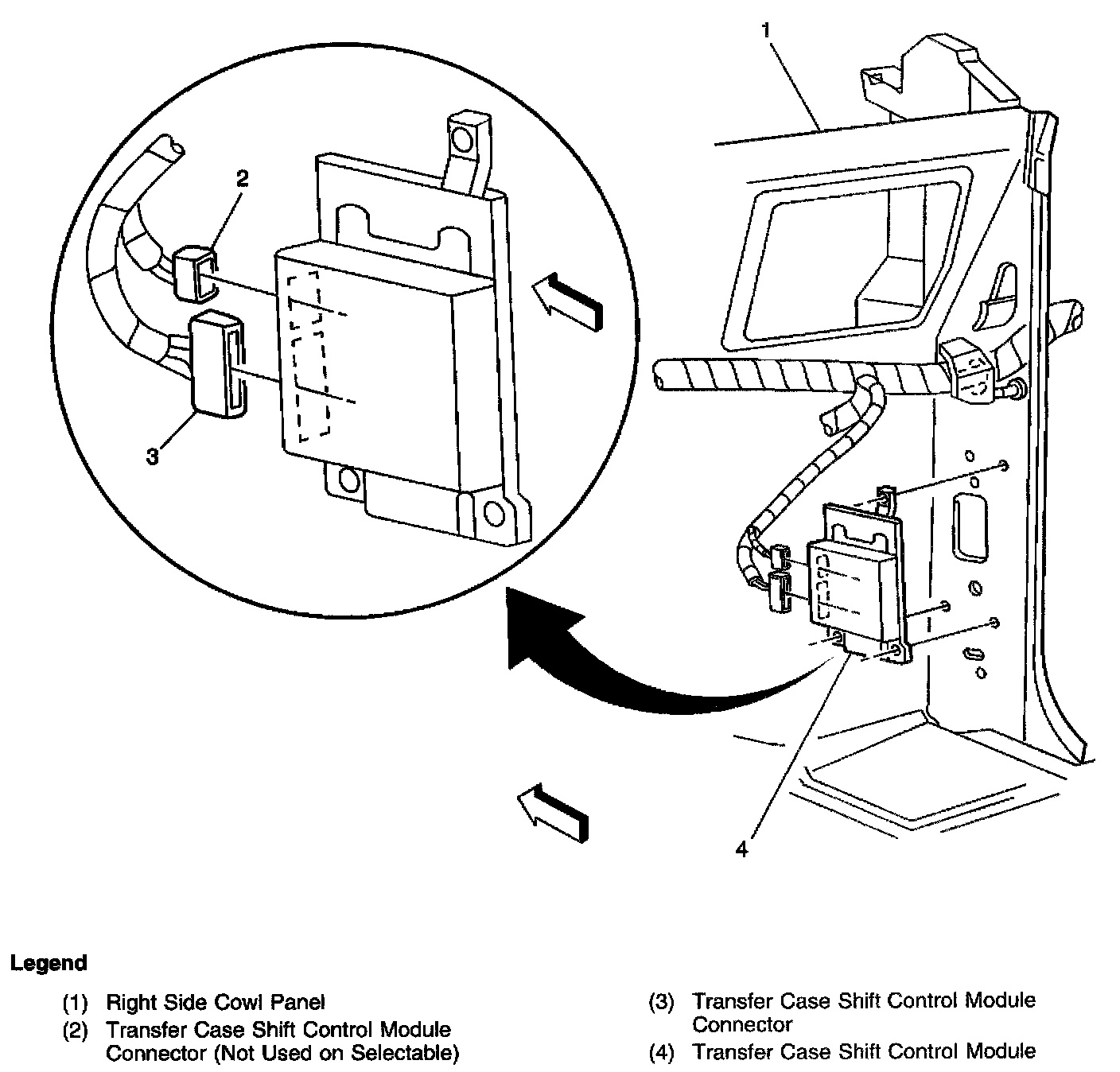

Transfer Case Shift Control Module

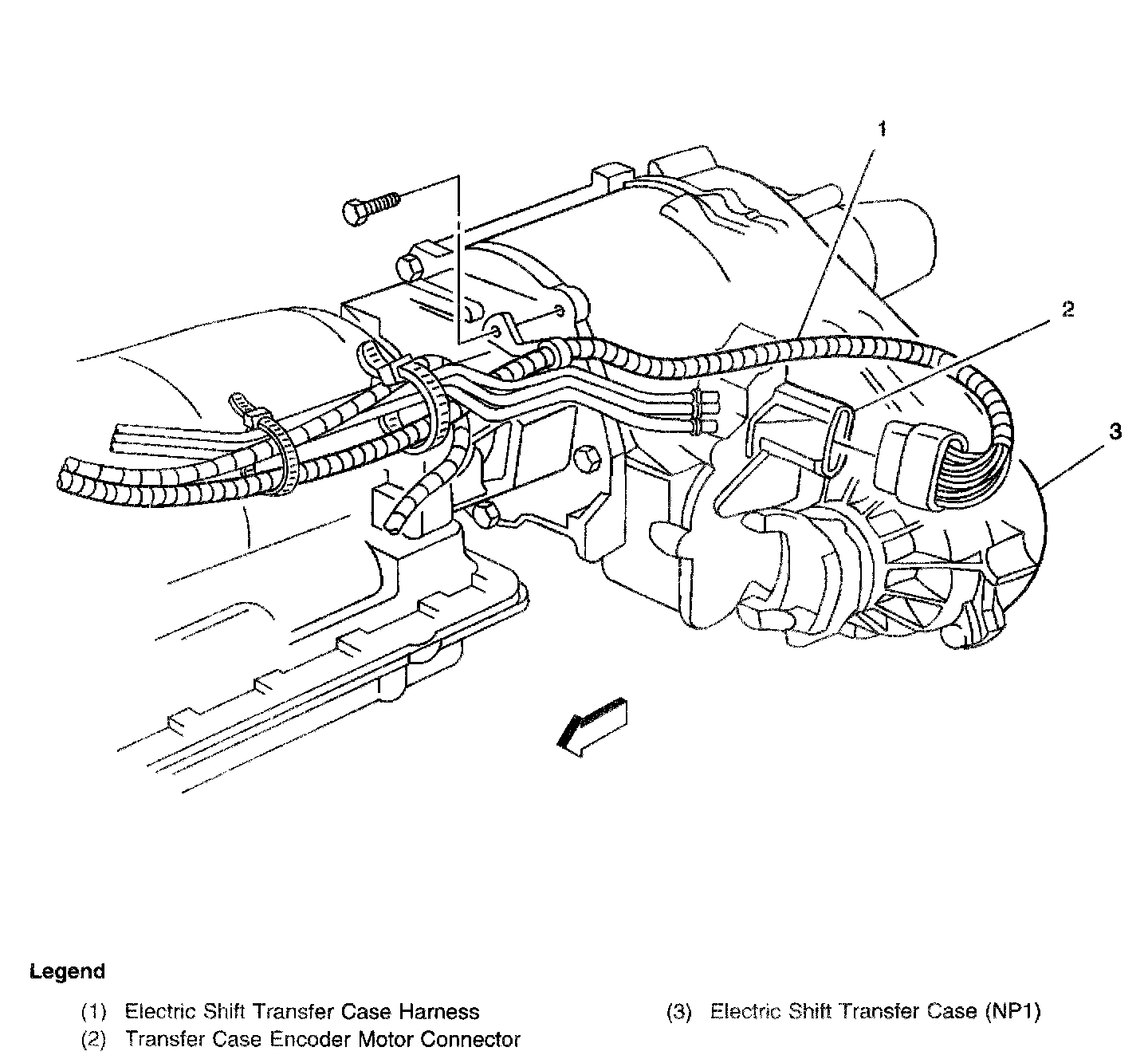

Tranfer Case (NP1) Harness Routing View
Front Axle Switch
IP Center Switch
Transfer Case Shift Control Module
Tranfer Case (NP1) Harness Routing View
Front Axle Switch
