Air Injection Pump
Air Injection Pump

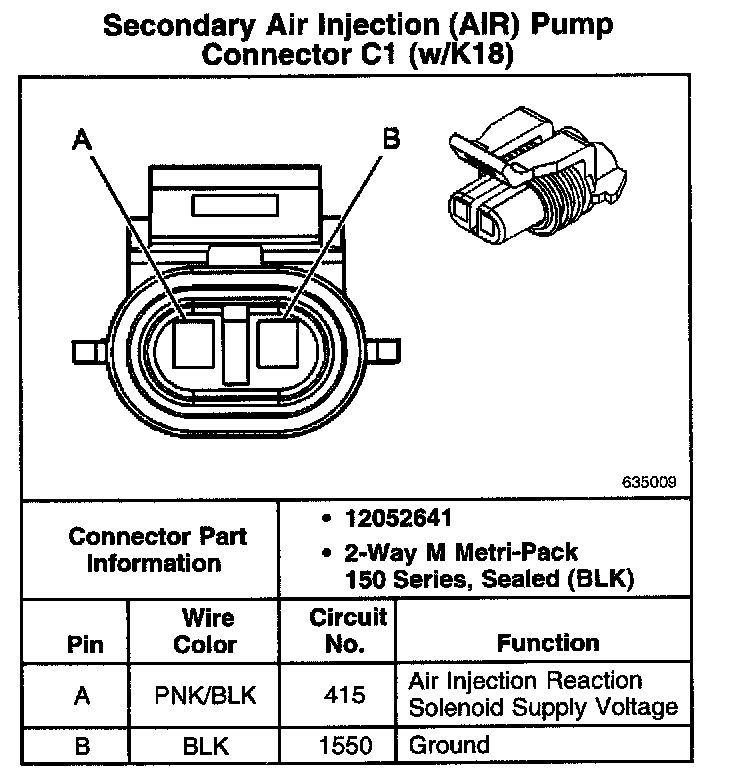

Secondary Air Injection (AIR) Pump Connector C1 (W/K18):
Secondary Air Injection (AIR) Pump Connector C2 (W/K18):
