Driver/Vehicle Information Display
Driver/Vehicle Information Display

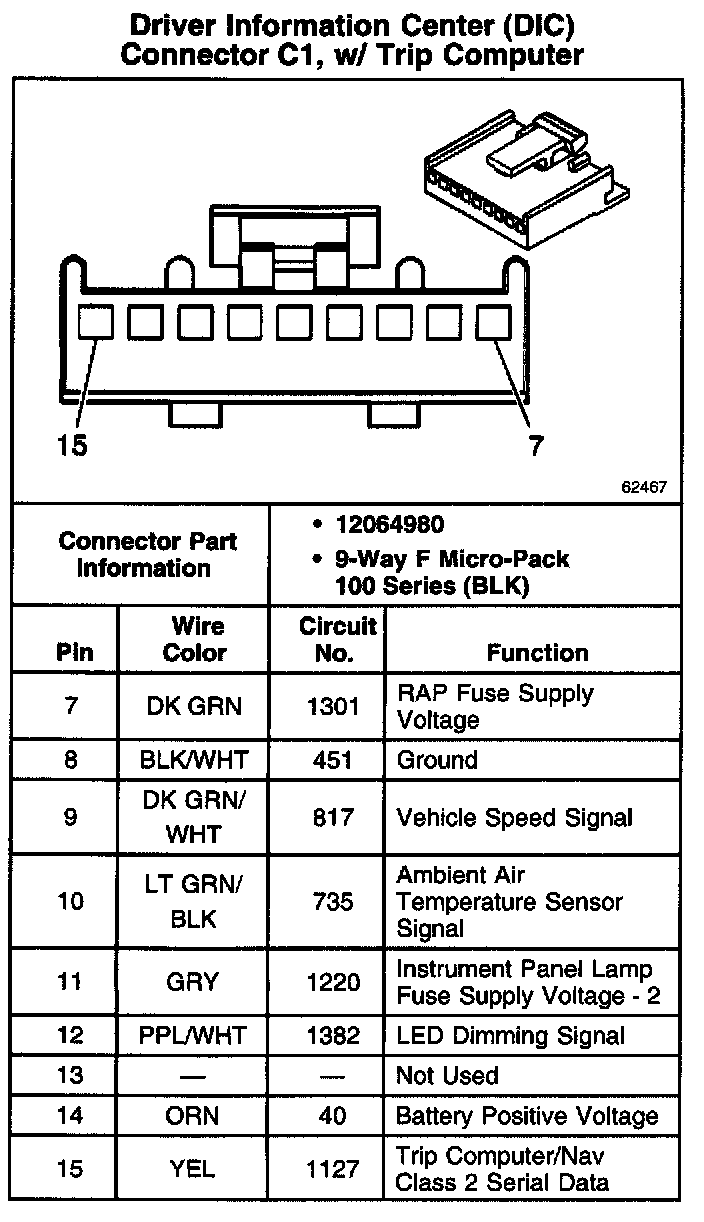

Driver Information Center (DIC) Connector C1, W/Trip Computer:
Driver Information Center (DIC) Connector C1, W/O Trip Computer:

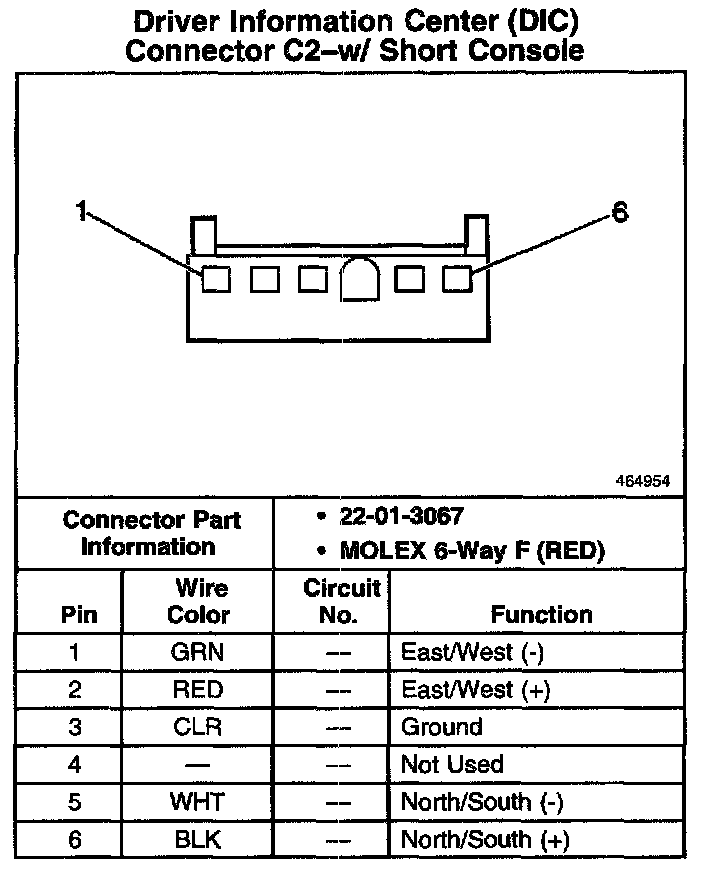

Driver Information Center (DIC) Connector C2 - W/Short Console:
