Front Door Handle Switch
Front Door Handle Switch
Door Handle Switch - Right-W/Keyless Entry:

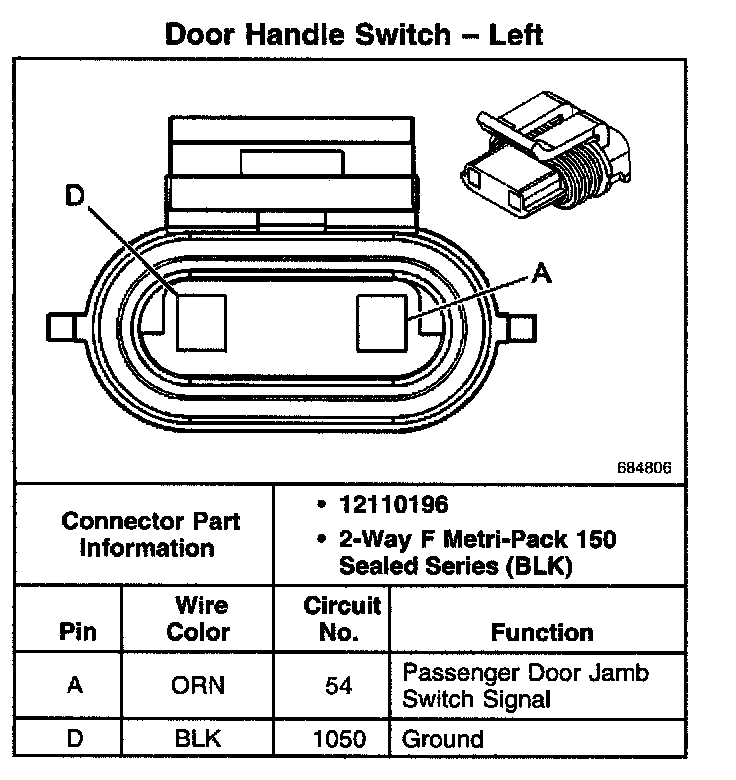

Door Handle Switch - Left:

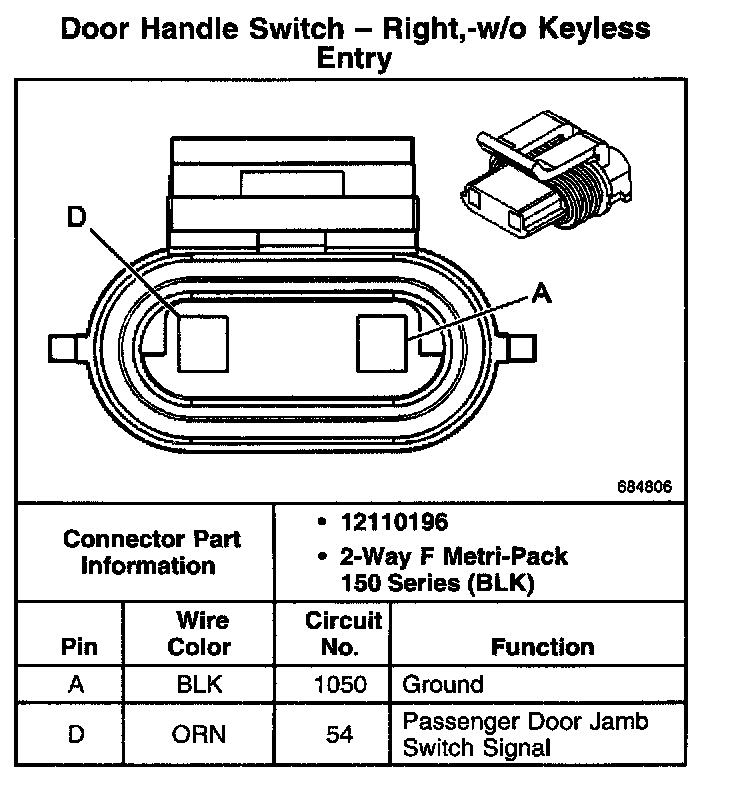

Door Handle Switch - Right, W/O Keyless Entry:
