Ignition Control Module
Ignition Control Module
Ignition Control Module (ICM) Connector C1:

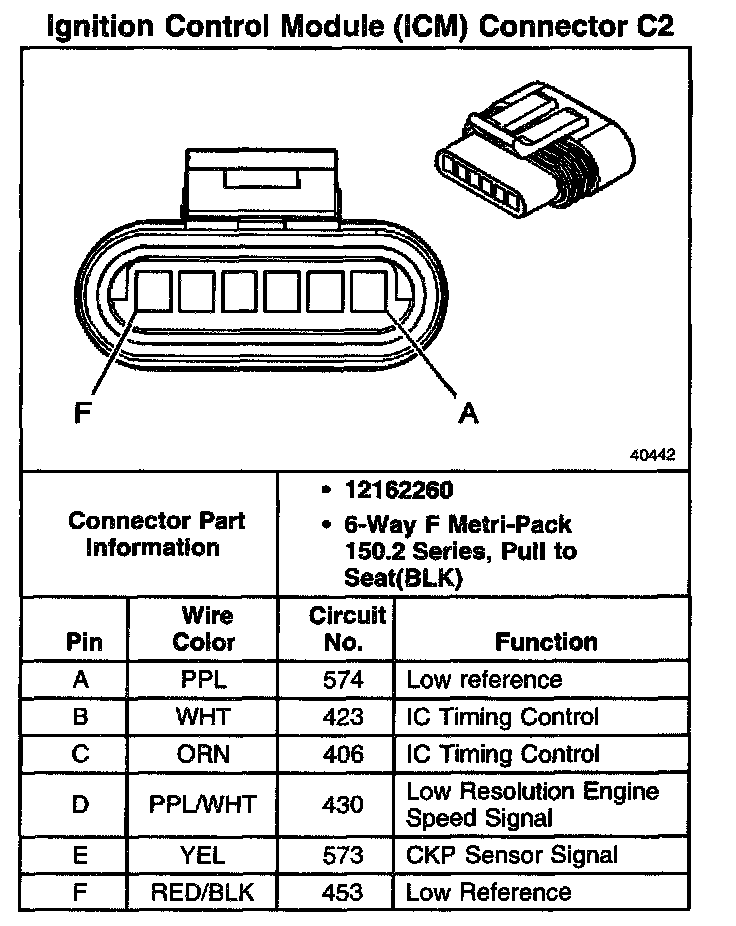

Ignition Control Module (ICM) Connector C2:
