Power Door Lock Actuator
Power Door Lock Actuator

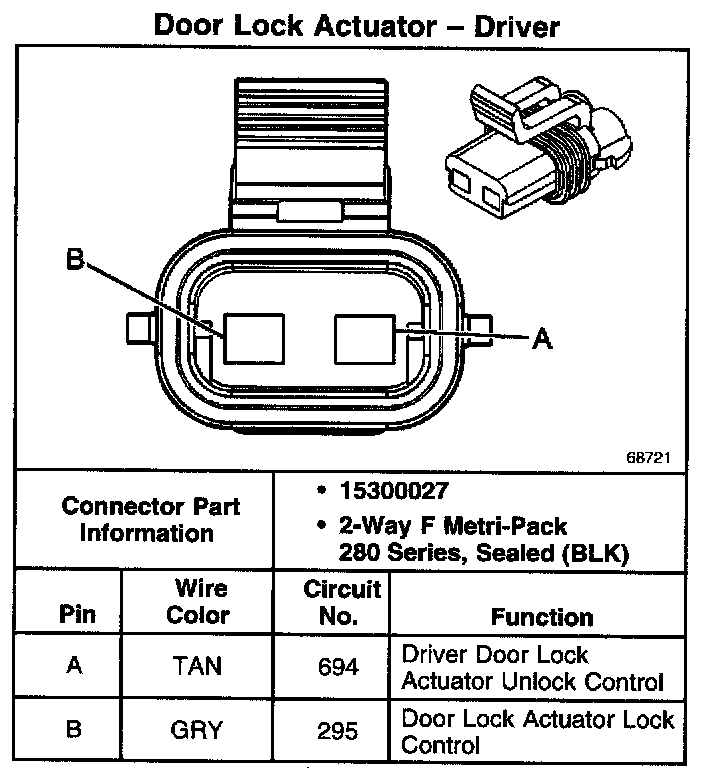

Door Lock Actuator - Driver:

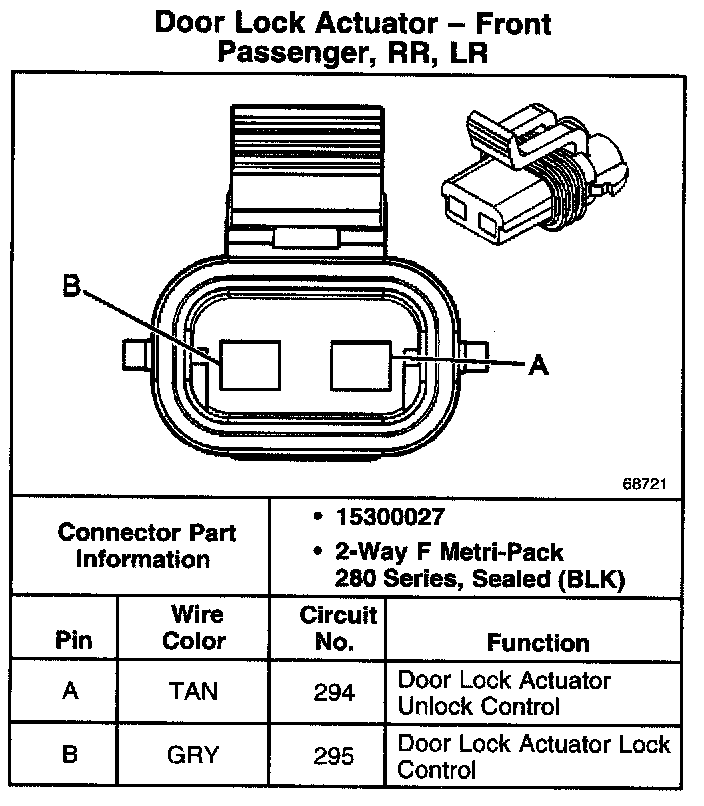

Door Lock Actuator - Front Passenger, RR, LR:
