Power Seat Control Module
Power Seat Control Module
Memory Seat Module - Driver C1:

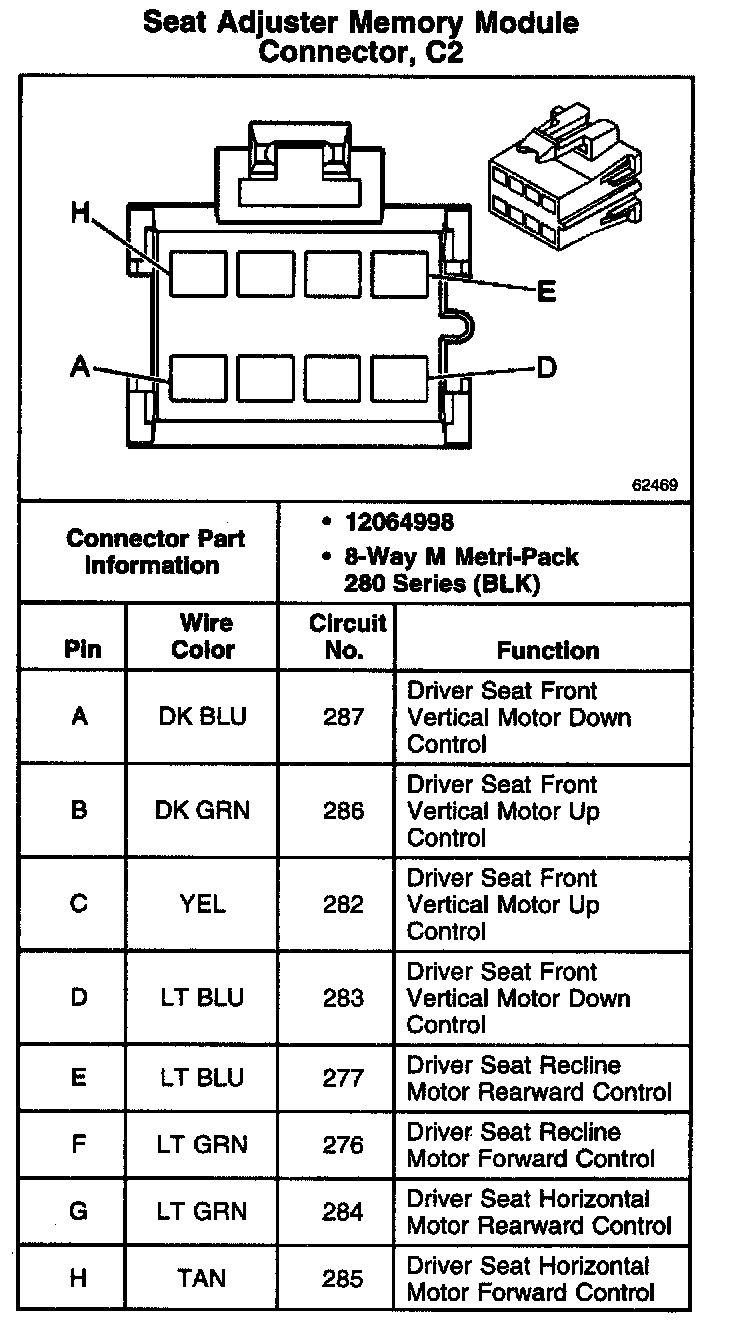

Seat Adjuster Memory Module Connector, C2:
Seat Adjuster Memory Module Connector, C3:
