Manual Transmission/Transaxle

Schematic and Routing Diagrams





Manual Transmission Schematic (Shift Indicator)

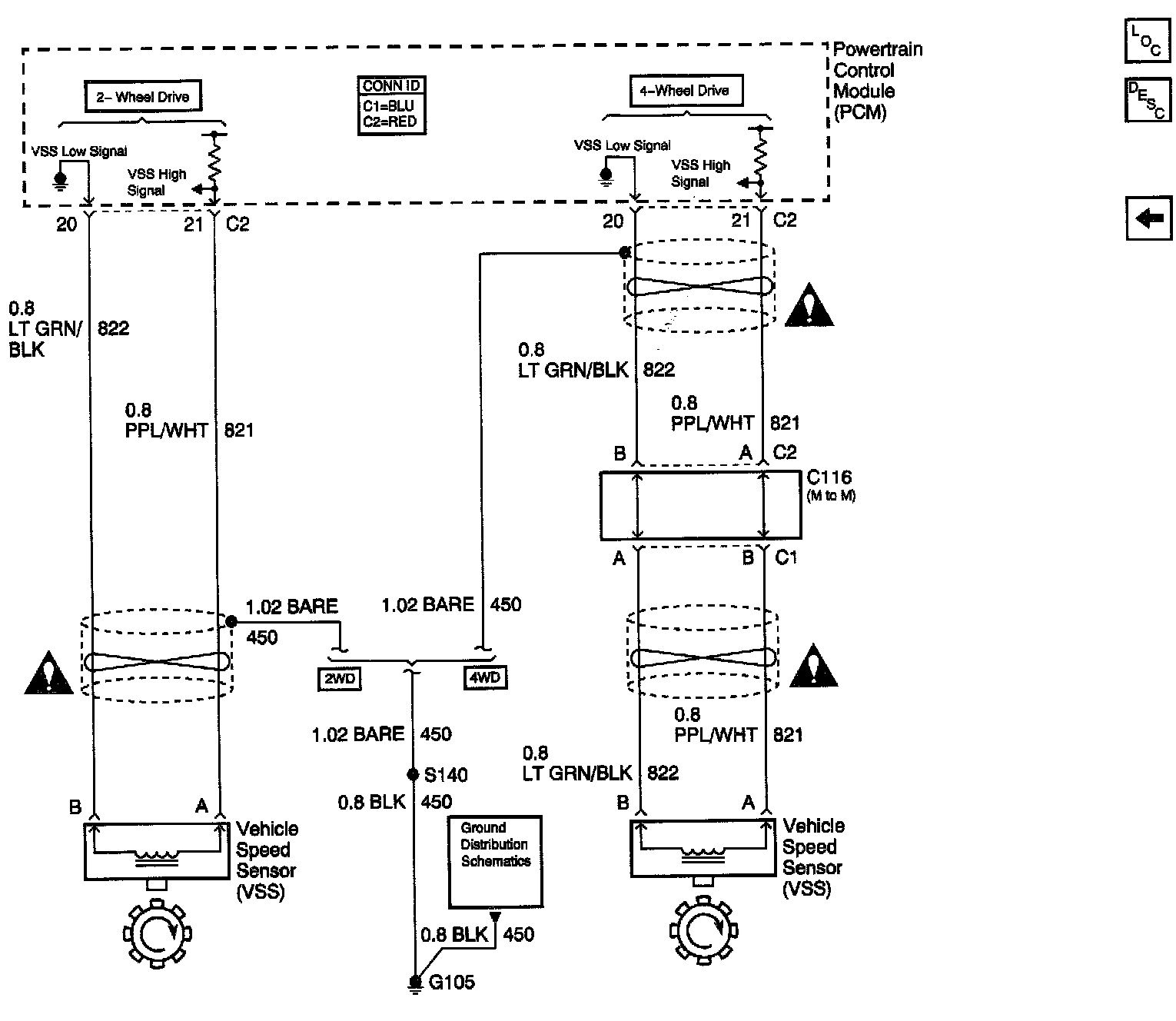

Manual Transmission Schematic (Vehicle Speed Sensor (VSS))
