Steering Mounted Controls Transmitter

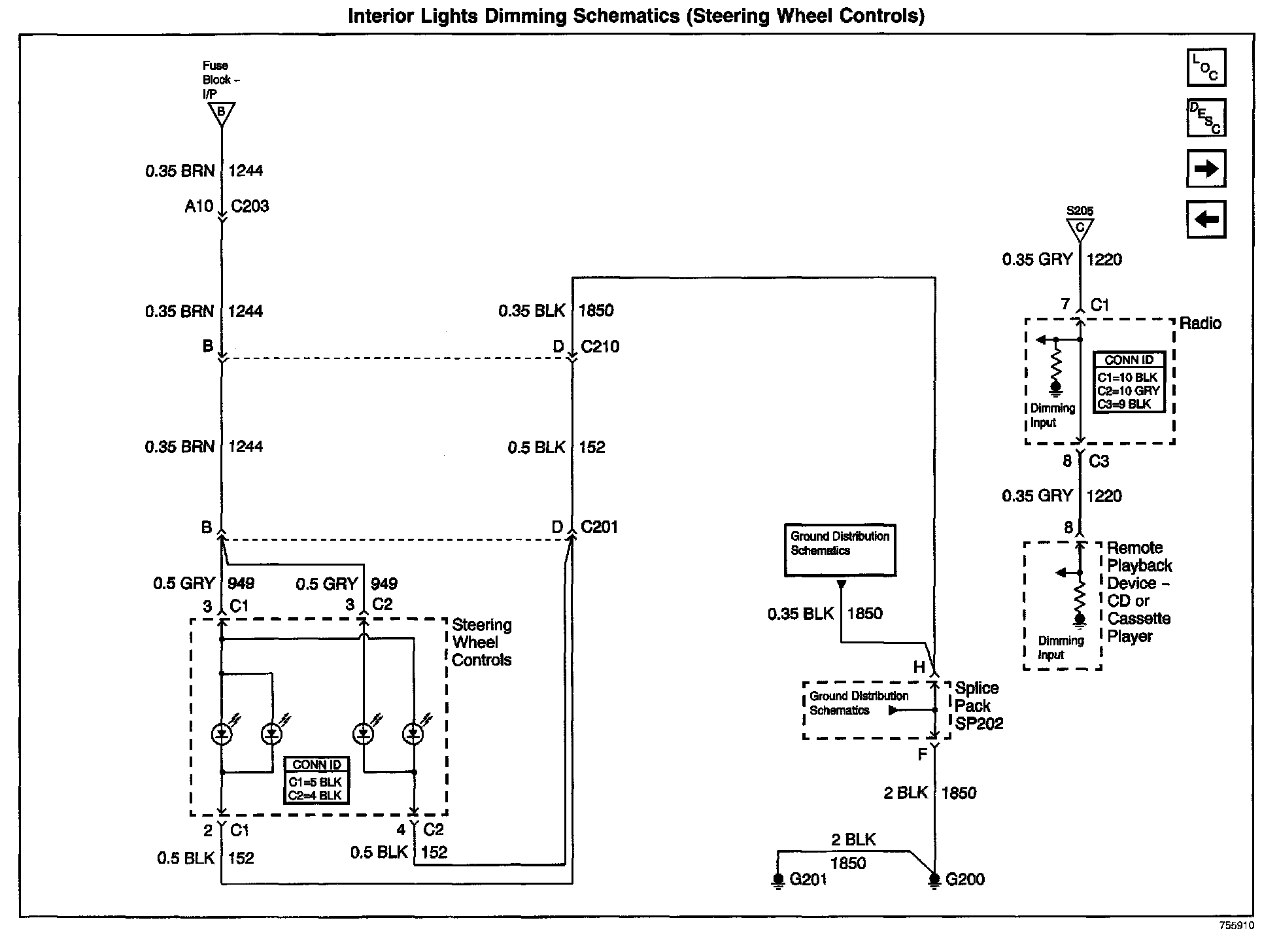

Interior Lights Dimming Schematics: Steering Wheel Controls:

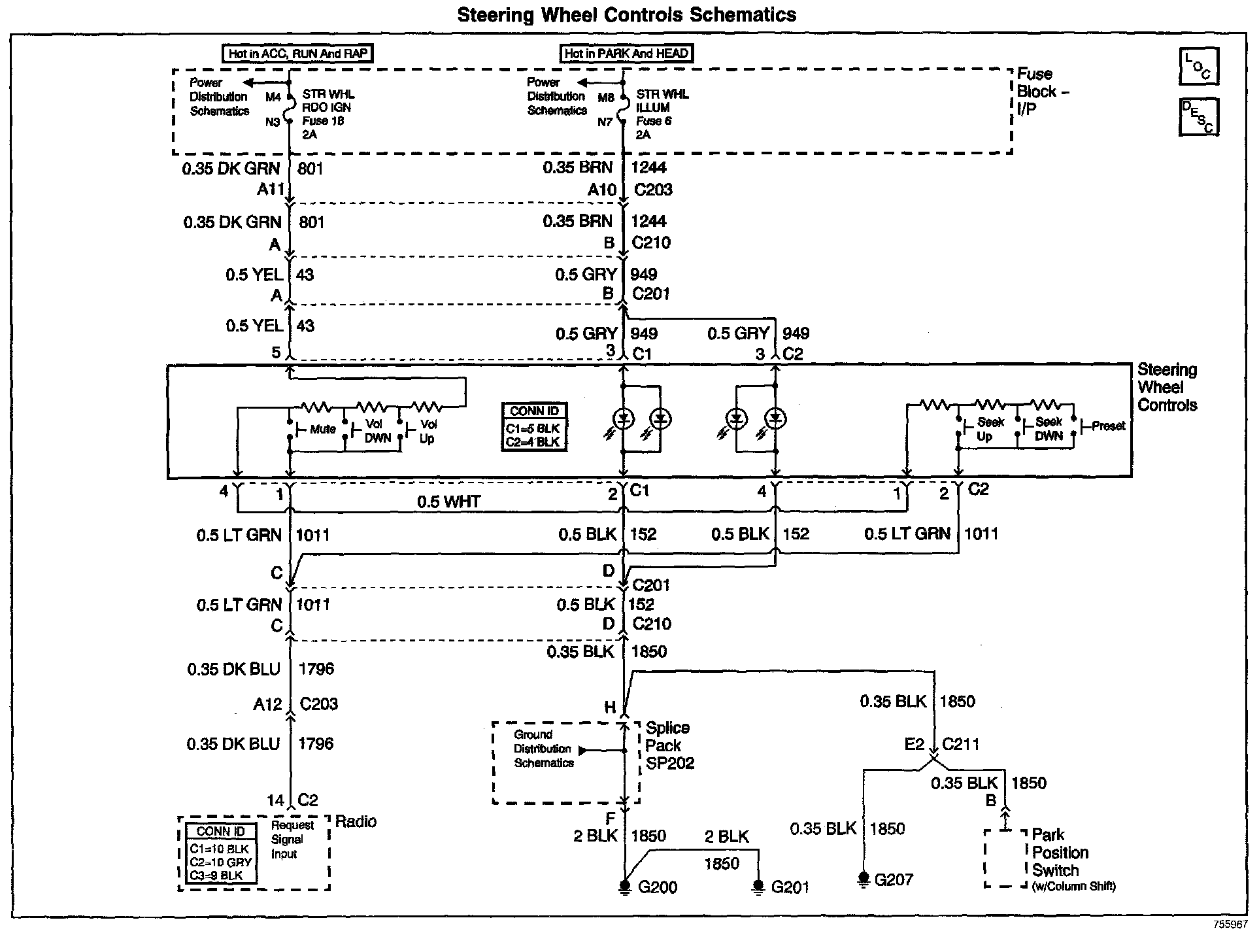

Steering Wheel Controls Schematics:
