Transmission Control Systems
Schematic and Routing Diagrams

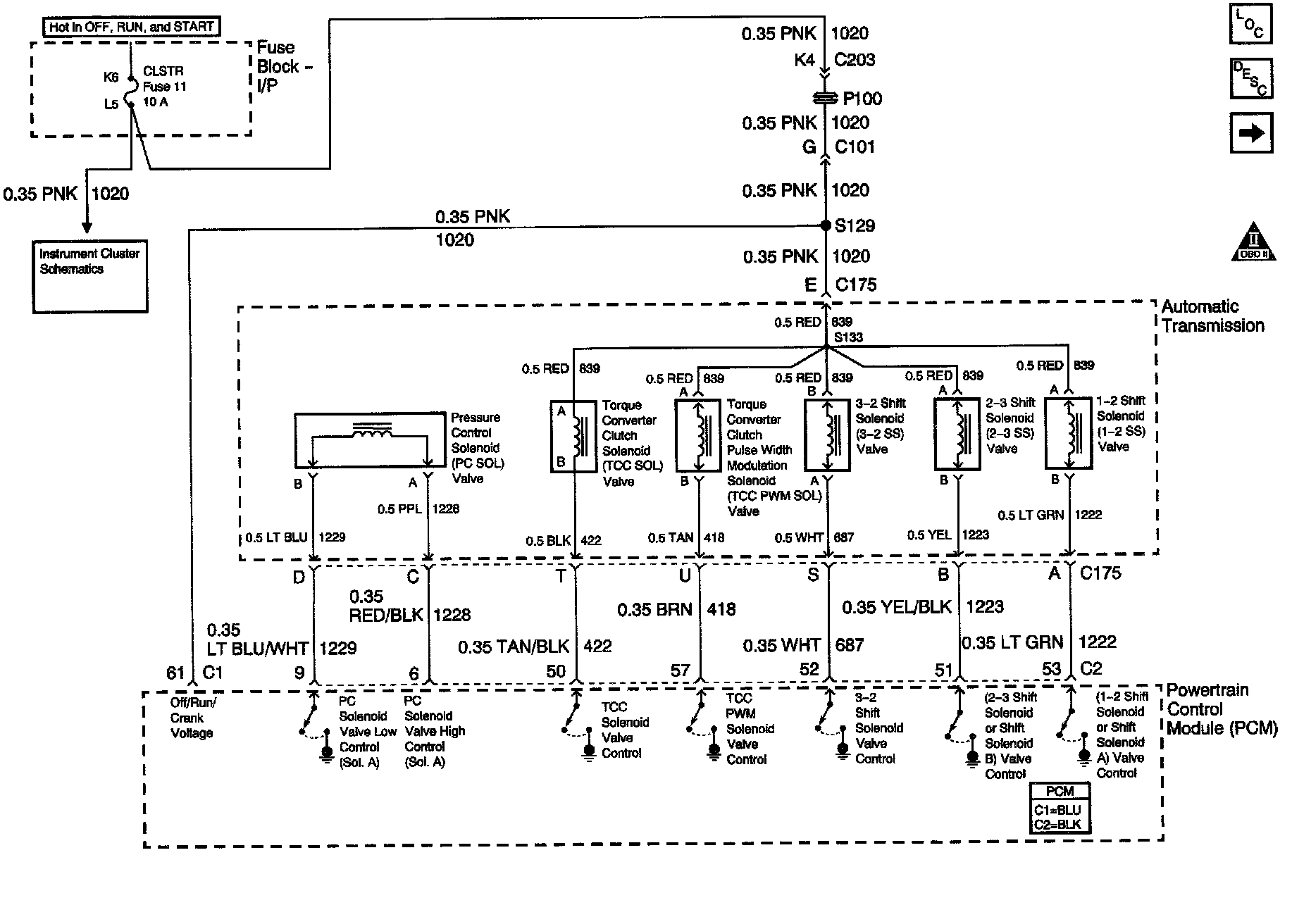

Automatic Transmission Control Schematics (Valve Controls 2.2L)

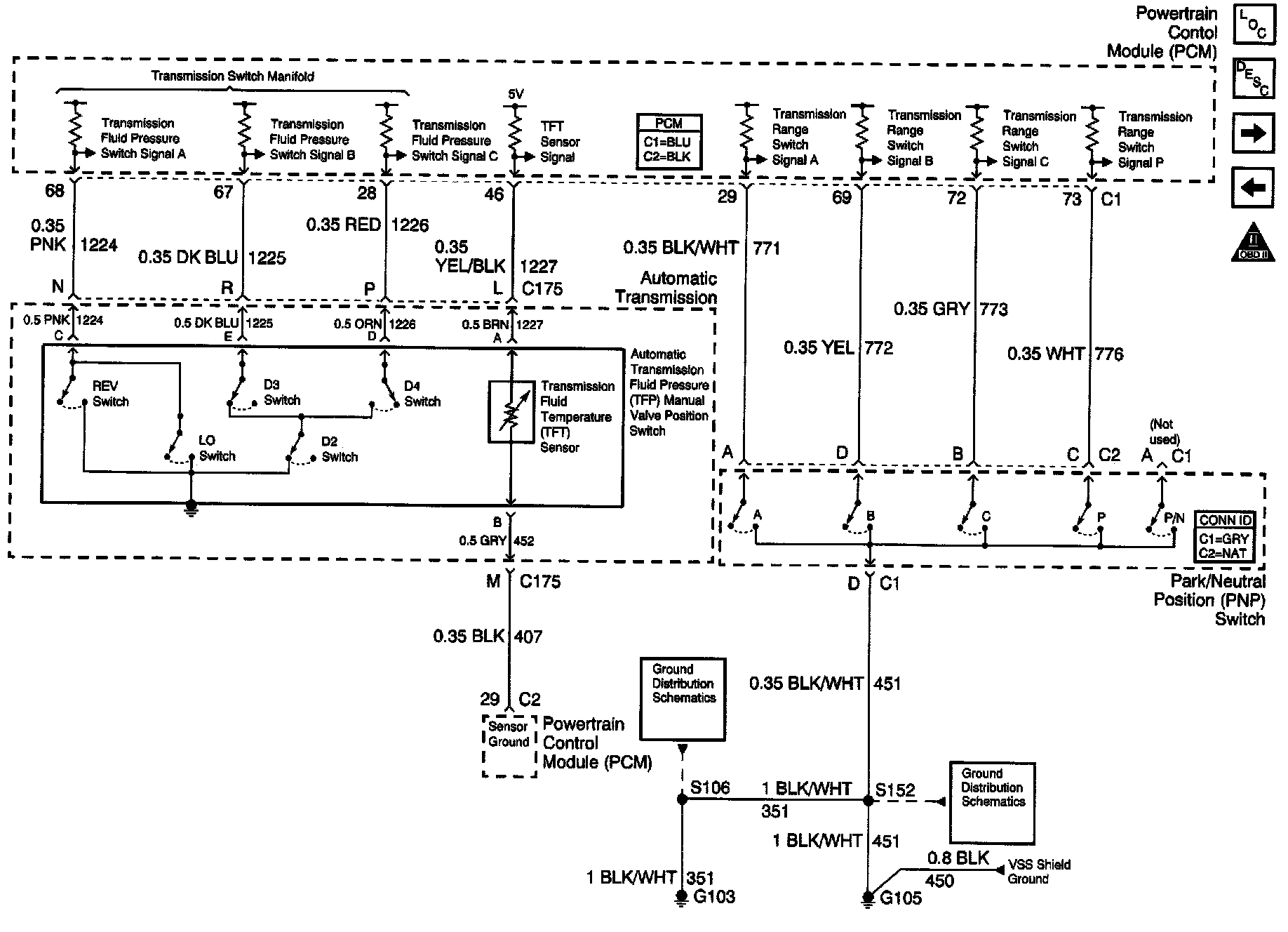

Automatic Transmission Control Schematics (Switch Inputs and PNP Switch 2.2L)
Automatic Transmission Control Schematics (Brake Switch, VSS Inputs 2.2L)
