Condenser HVAC: Service and Repair
CONDENSER REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.
2. Remove the radiator.
3. Remove the compressor hose assembly from the condenser.
4. Remove the evaporator tube from the condenser.

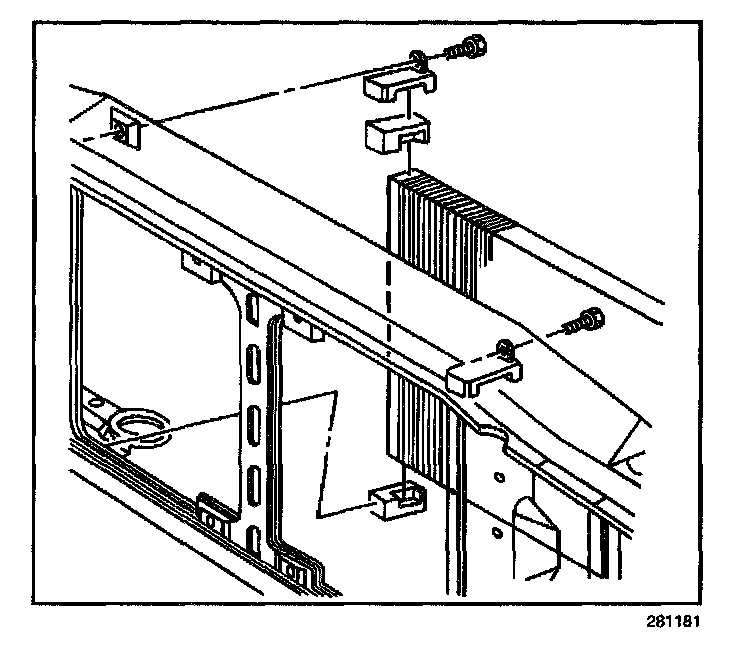

5. Remove the insulator retainer bolts and the upper insulator retainers.
6. Remove the condenser from the vehicle.
INSTALLATION PROCEDURE
1. Install the condenser to the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the upper insulator retainers and the insulator retainer bolts.
Tighten
Tighten the bolts to 1.9 N.m (17 lb in).
3. Install the evaporator tube to the condenser.
4. Install the compressor hose assembly to the condenser.
5. Install the radiator.
6. Fill the engine coolant. Refer to Draining and Filling Cooling System in Cooling System.
7. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging
8. Leak test the fittings components using the J 39400-A.
