Automatic Transmission/Transaxle: Locations

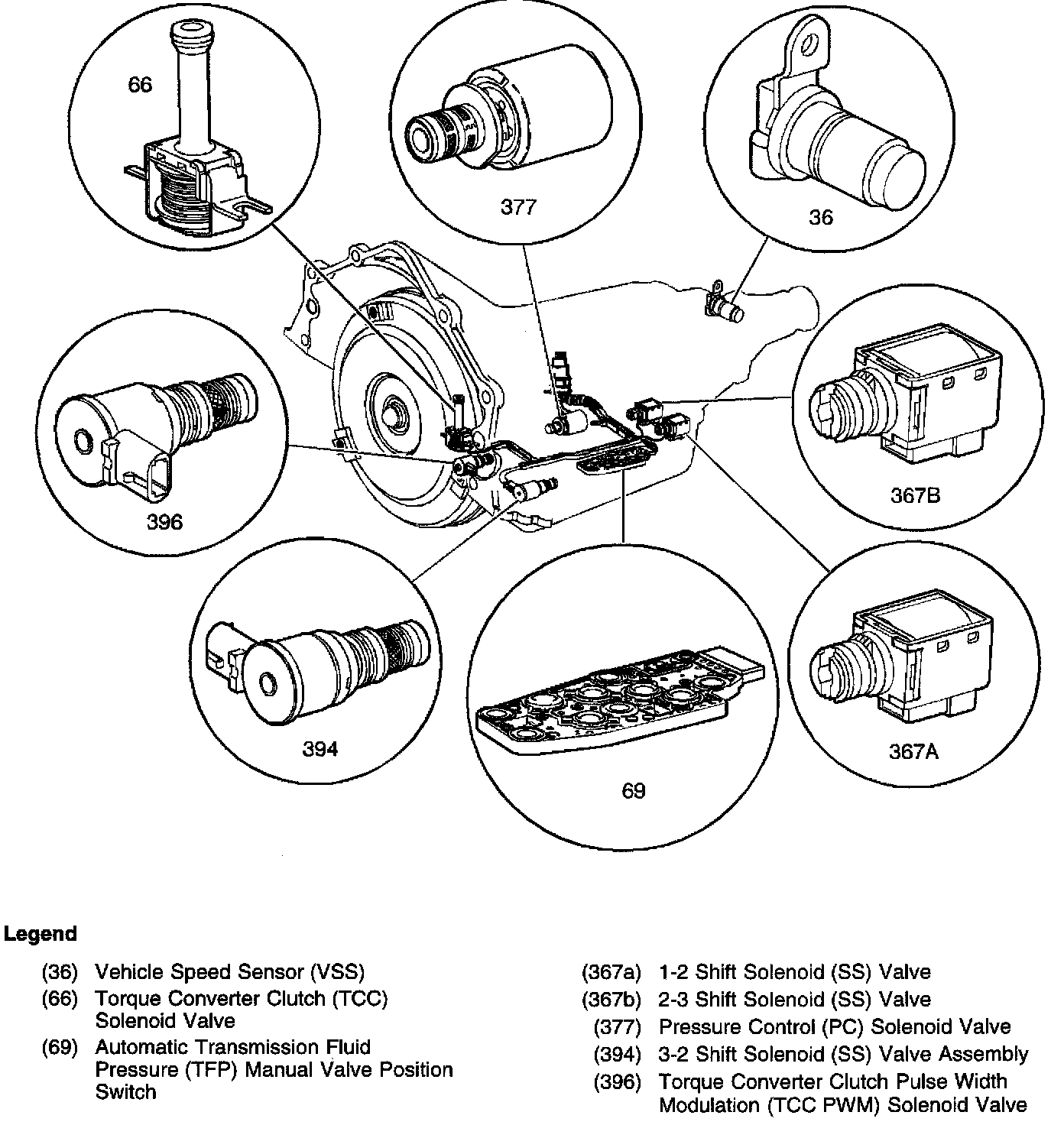

Automatic Transmission Electronic Component Views





Electronic Components

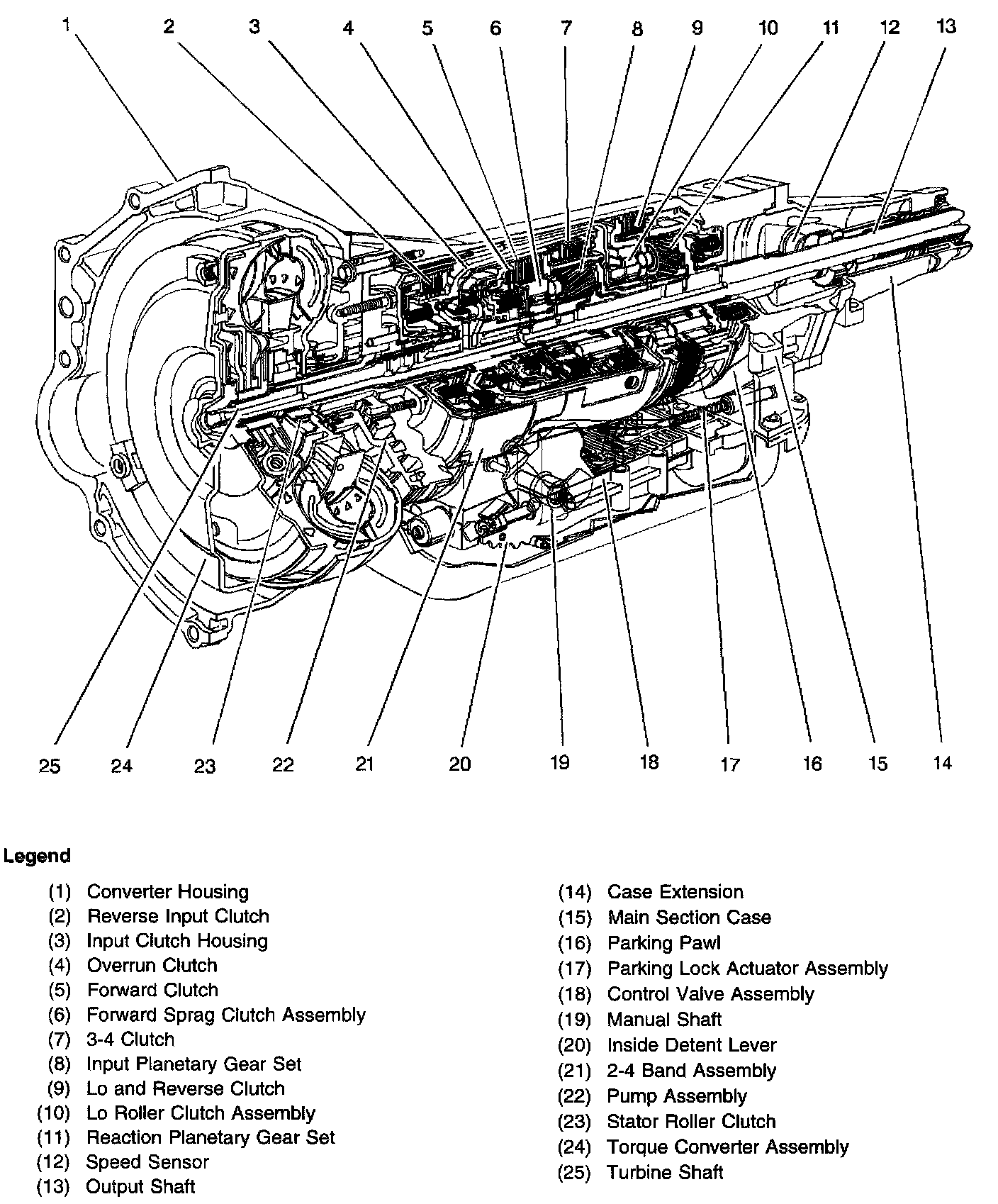

Components

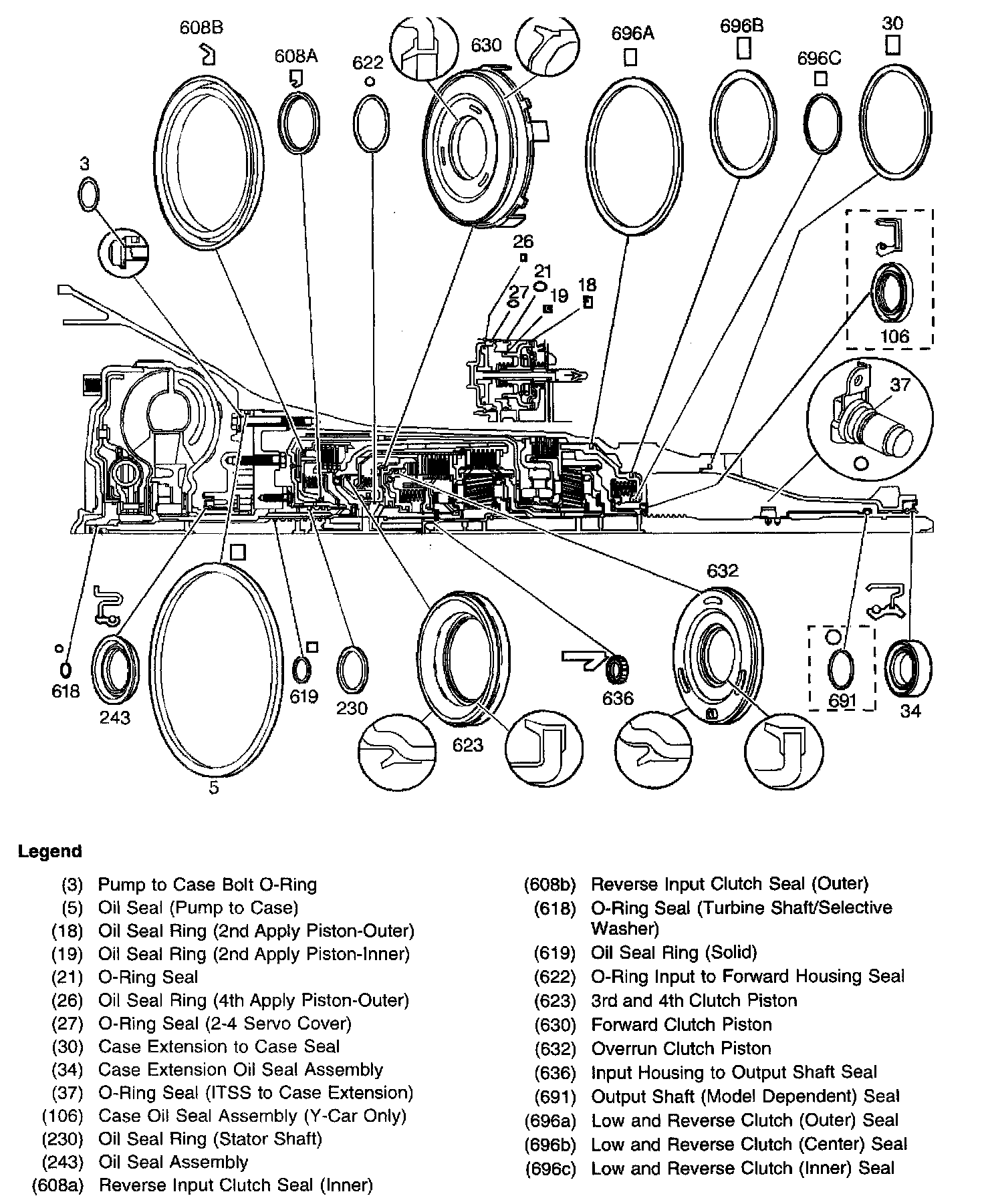

Seals

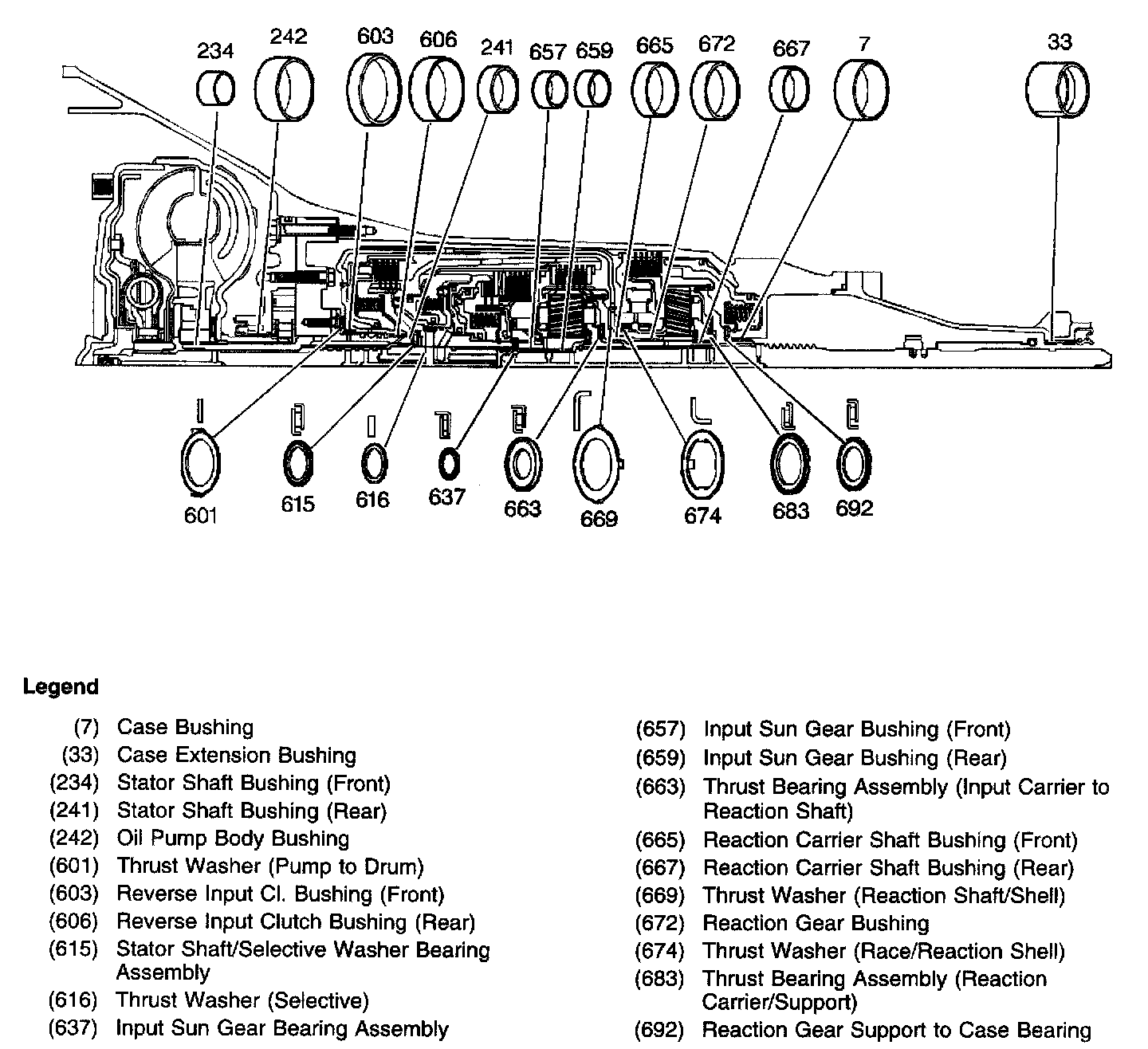

Bearings and Bushings

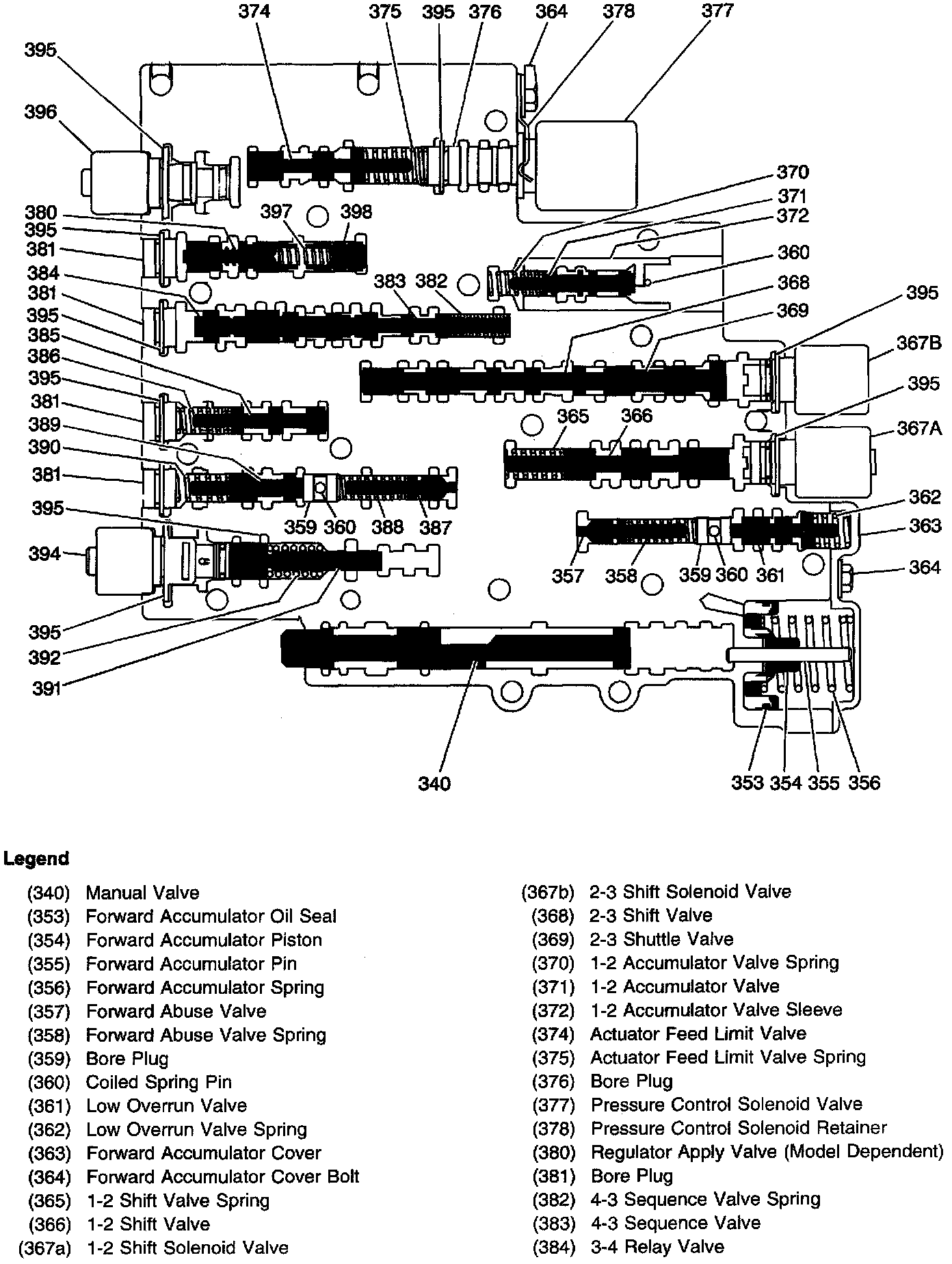

Valve Trains
