Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Master Ground List
Master Ground List
G100-W/California Emissions - G205:

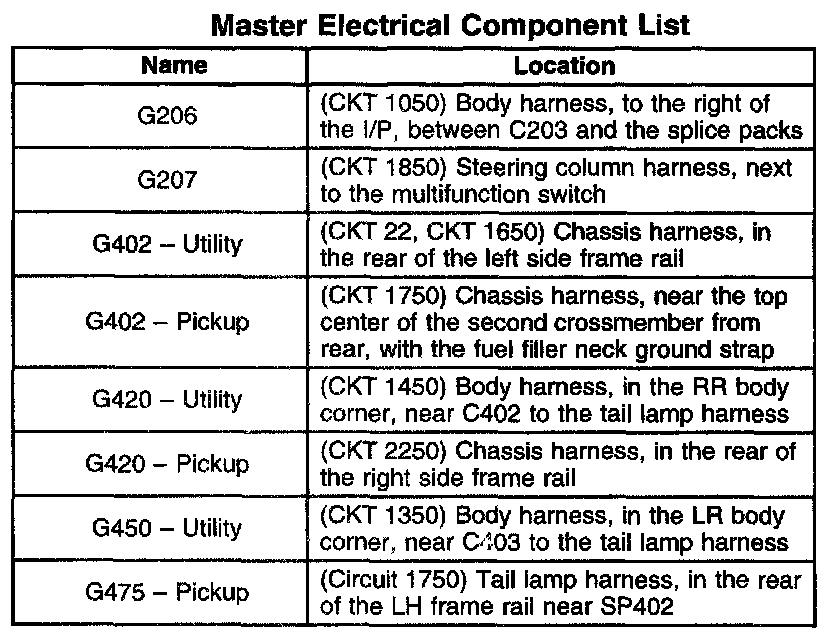

G206 - G475-Pickup:
