Home
>>
Chevy Truck
>>
2002
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Instrument Panel, LF

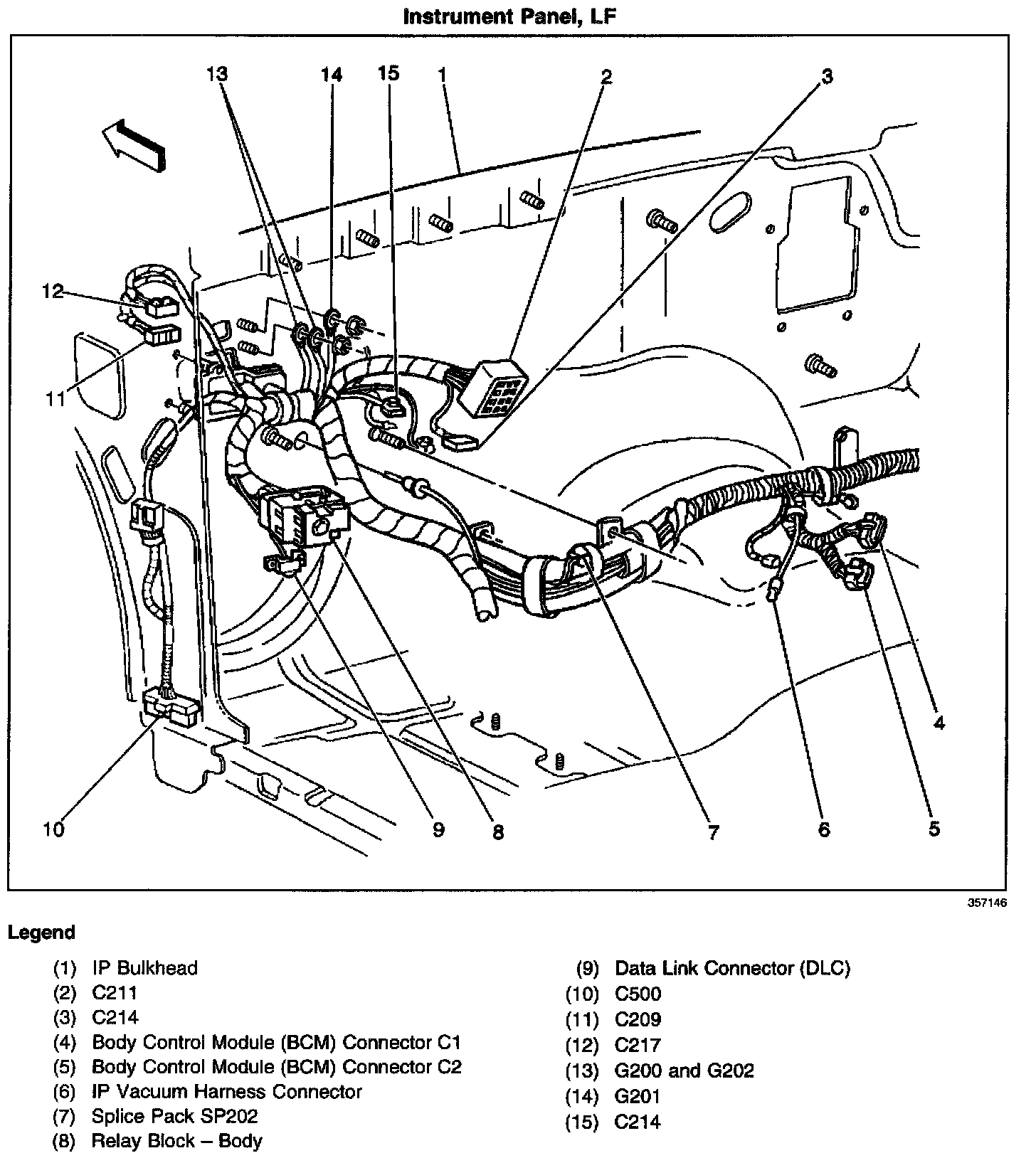

Instrument Panel, LF
Locations View:
Harness Routing Views (Instrument Panel, LF):
