Blower Motor Relay: Service and Repair

BLOWER MOTOR RELAY REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.

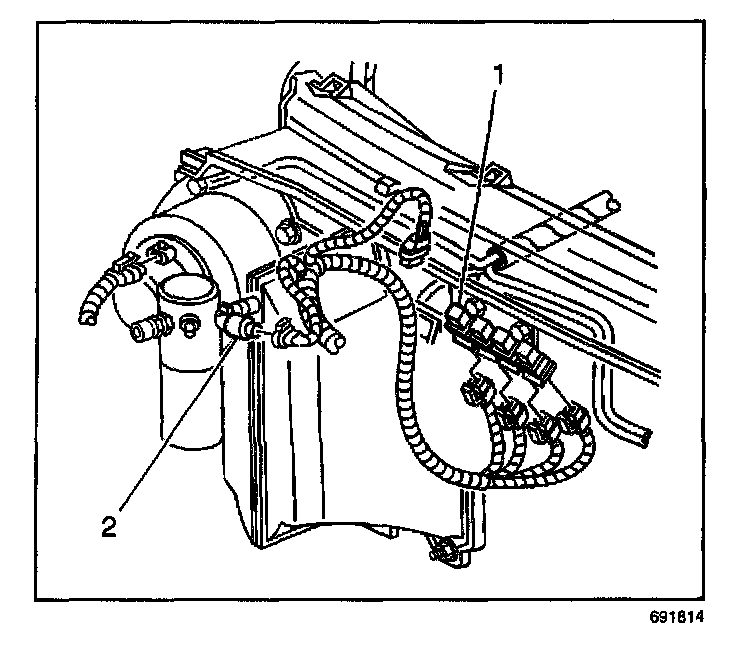

2. Remove the blower motor relay (1) from the retaining bracket.
3. Disconnect the electrical connector.
4. Remove the blower motor relay.

INSTALLATION PROCEDURE




1. Install the blower motor relay.
2. Connect the electrical connector.
3. Install the blower motor relay (1) to the retaining bracket.
4. Connect the negative battery cable.
