Heater Core: Service and Repair

HEATER CORE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the heater/vent module. Service and Repair

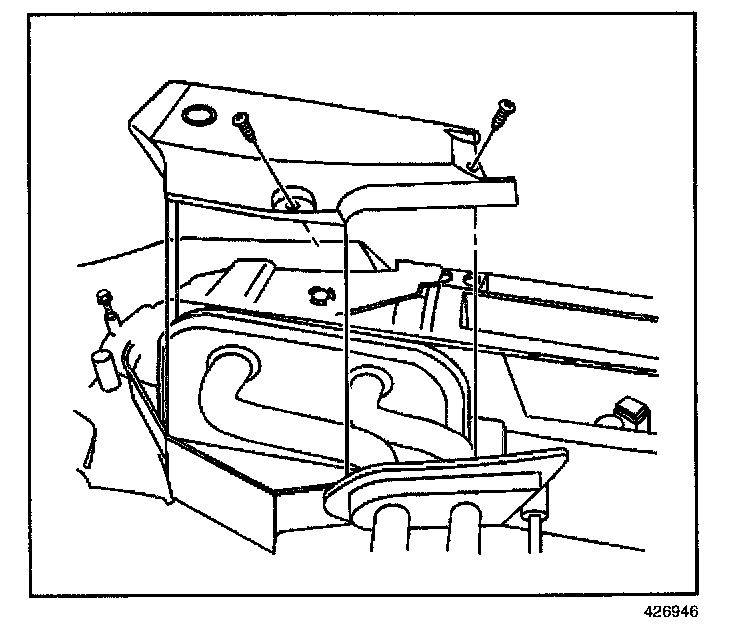

2. Remove the heater core access cover screws.
3. Remove the heater core access cover.

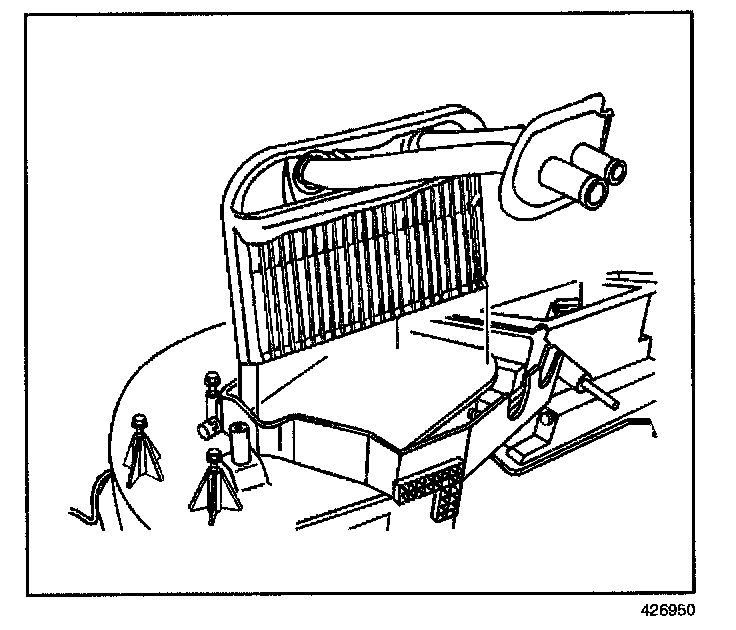

4. Remove the heater core from the heater/vent module.

INSTALLATION PROCEDURE




1. Install the heater core to the heater/vent module.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the heater core access cover.

Tighten
Tighten the heater core access cover screws to 1.9 N.m (17 lb in).

3. Install the heater/vent module.
