Relay Box: Locations
Left side of the dash, to the right of the I/P fuse block

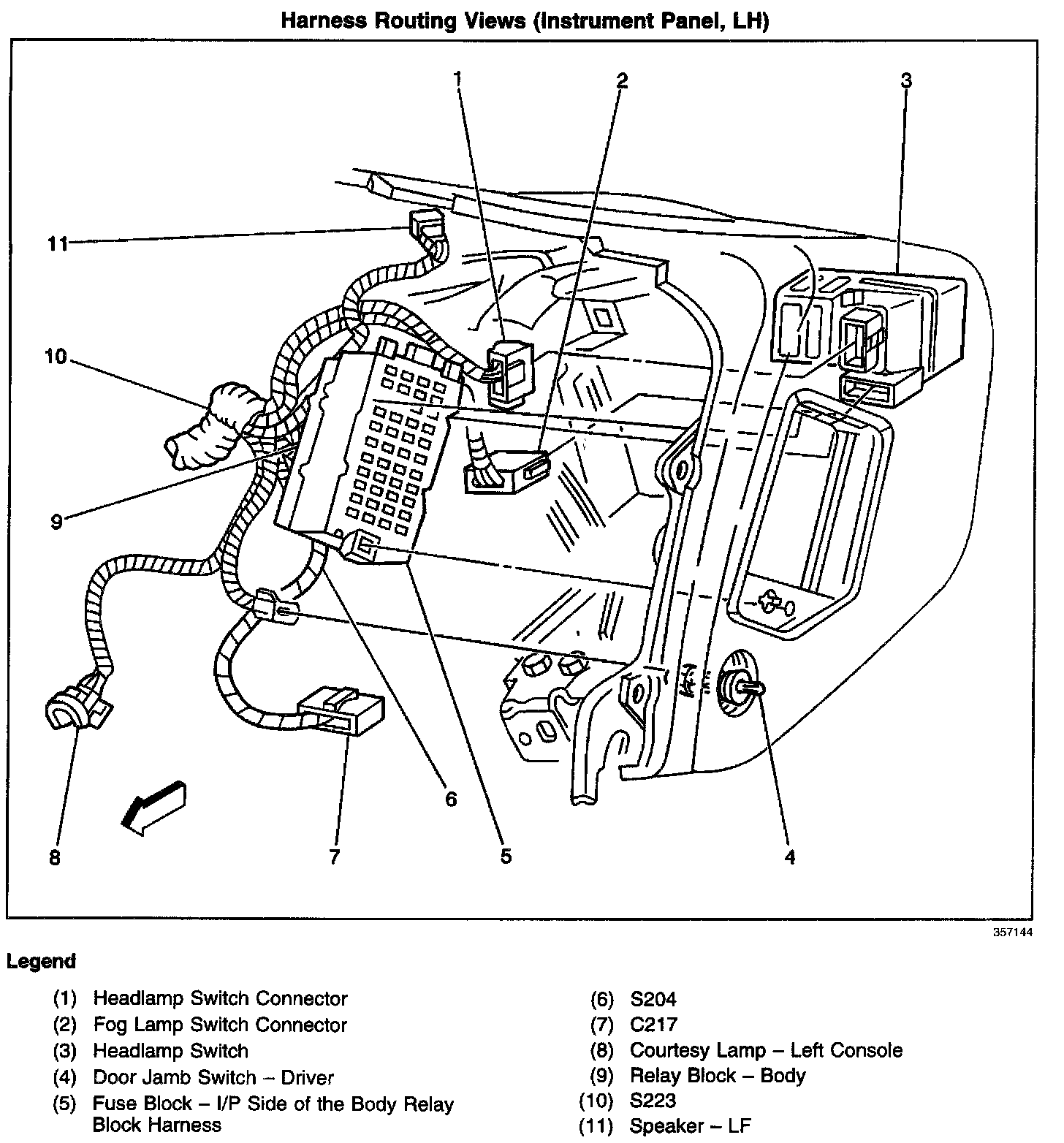

Harness Routing Views (Instrument Panel, LH):

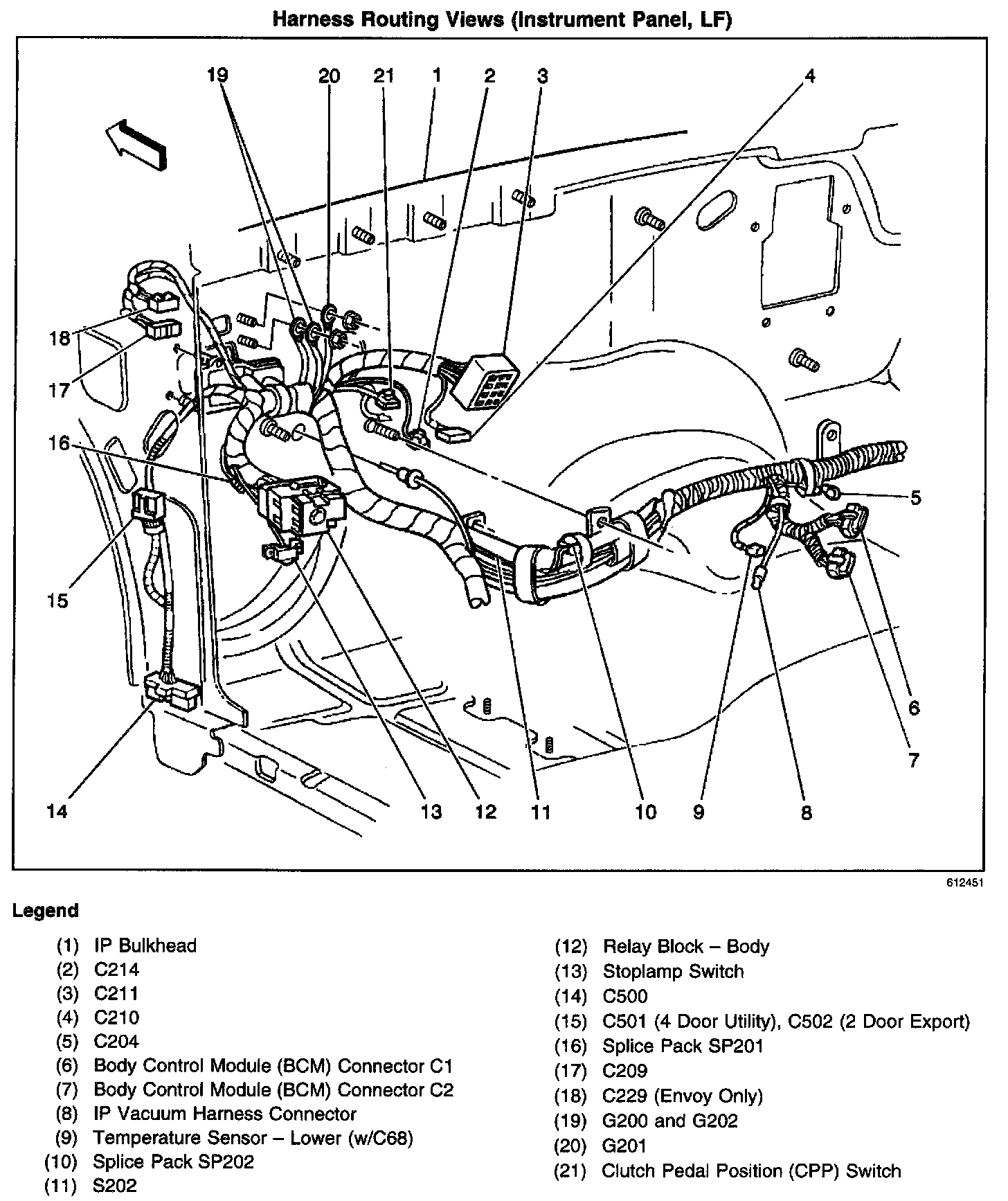

Harness Routing Views (Instrument Panel, LF):
