Oxygen Sensor
Oxygen Sensor

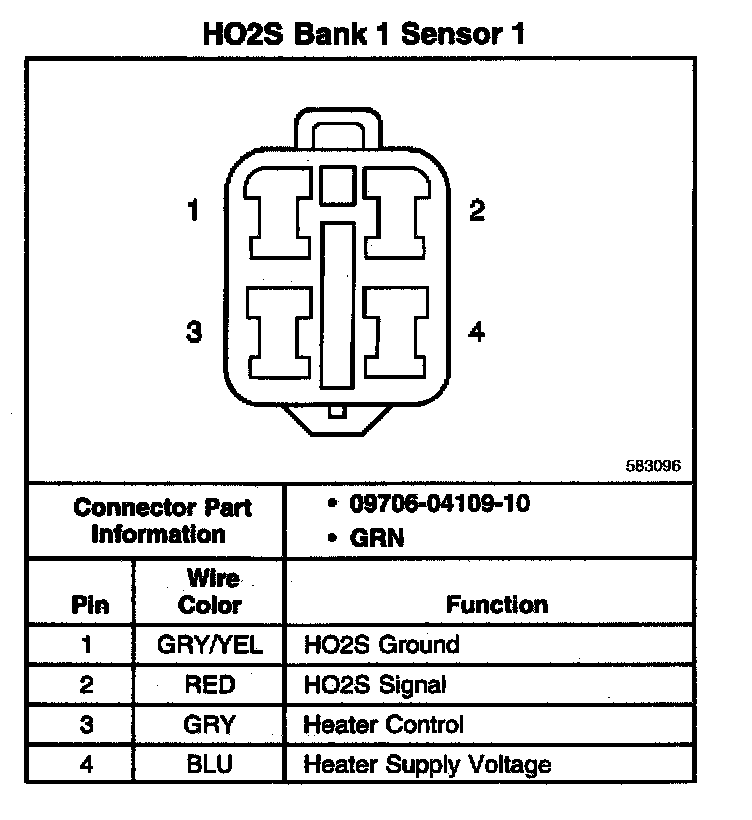

HO2S Bank 1 Sensor 1:

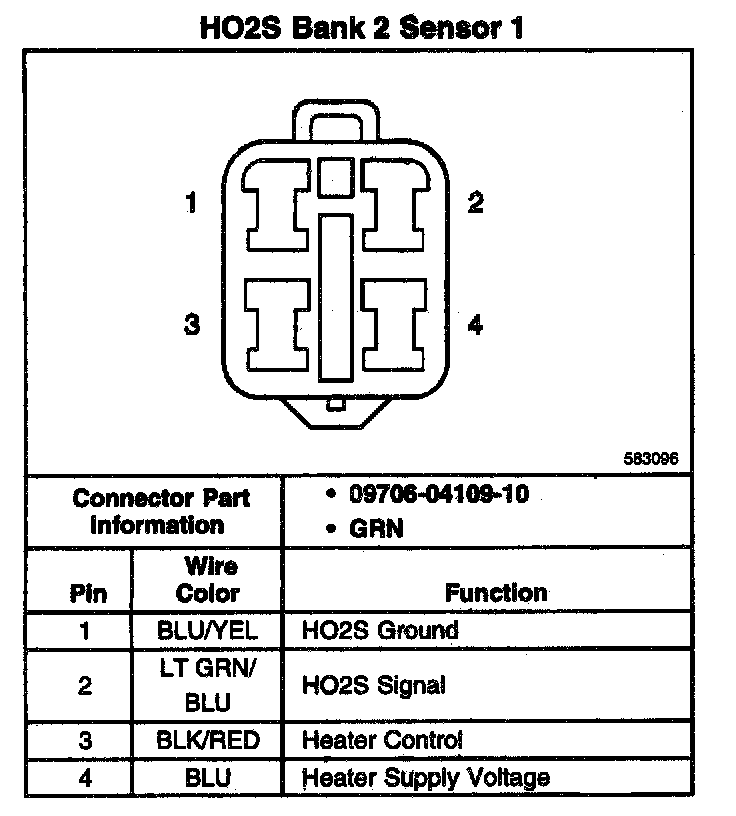

HO2S Bank 2 Sensor 1:
HO2S Bank 2 Sensor 2:

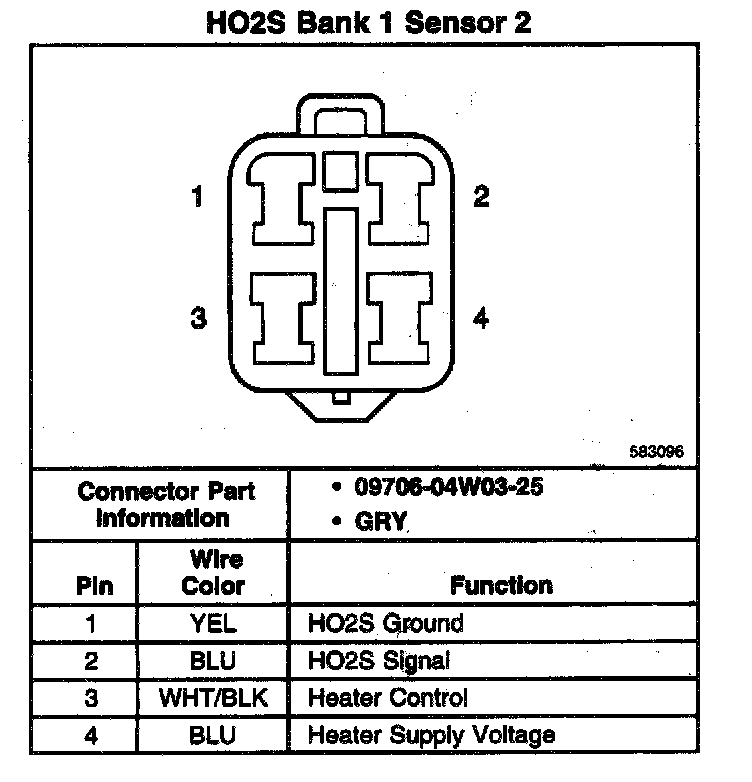

HO2S Bank 1 Sensor 2:
