Chevy Truck
>>
2002
>>
Tracker 4WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Condenser Fan Motor
Condenser Fan Motor

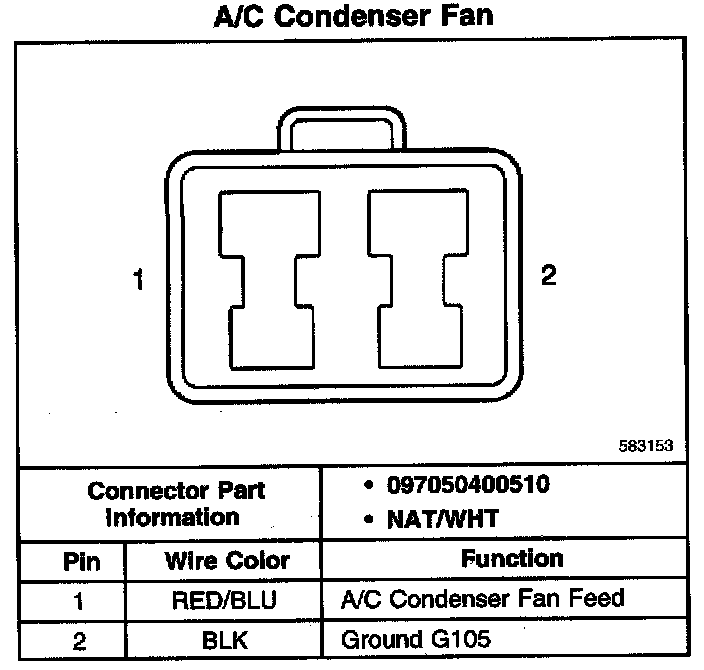

A/C Condenser Fan - HVAC Systems - Manual:

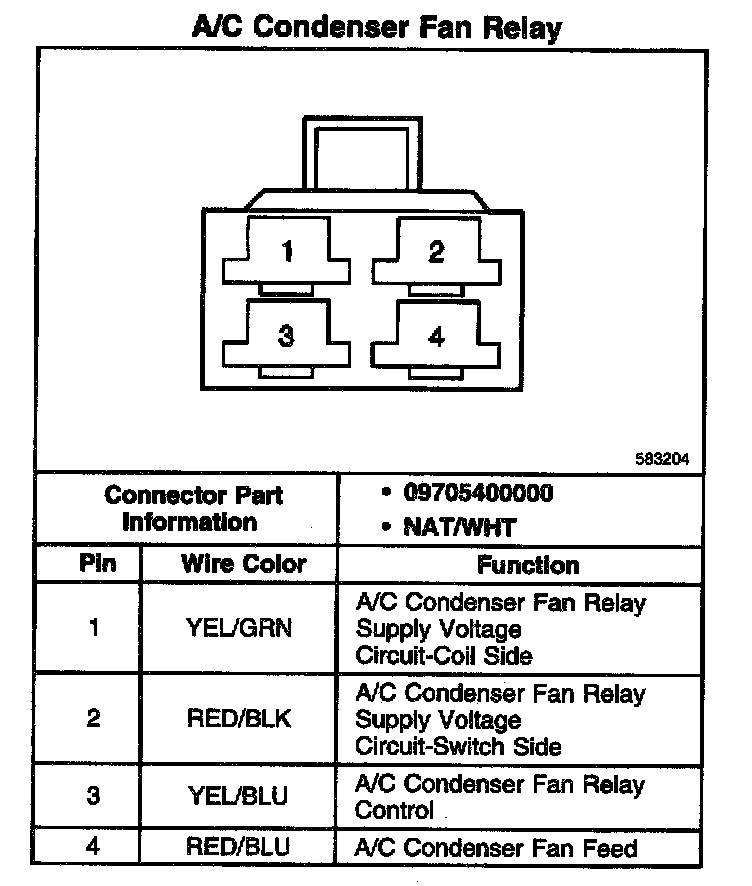

A/C Condenser Fan Relay - HVAC Systems - Manual:
