Instrument Cluster / Carrier
Instrument Cluster / Carrier
Instrument Cluster C2:

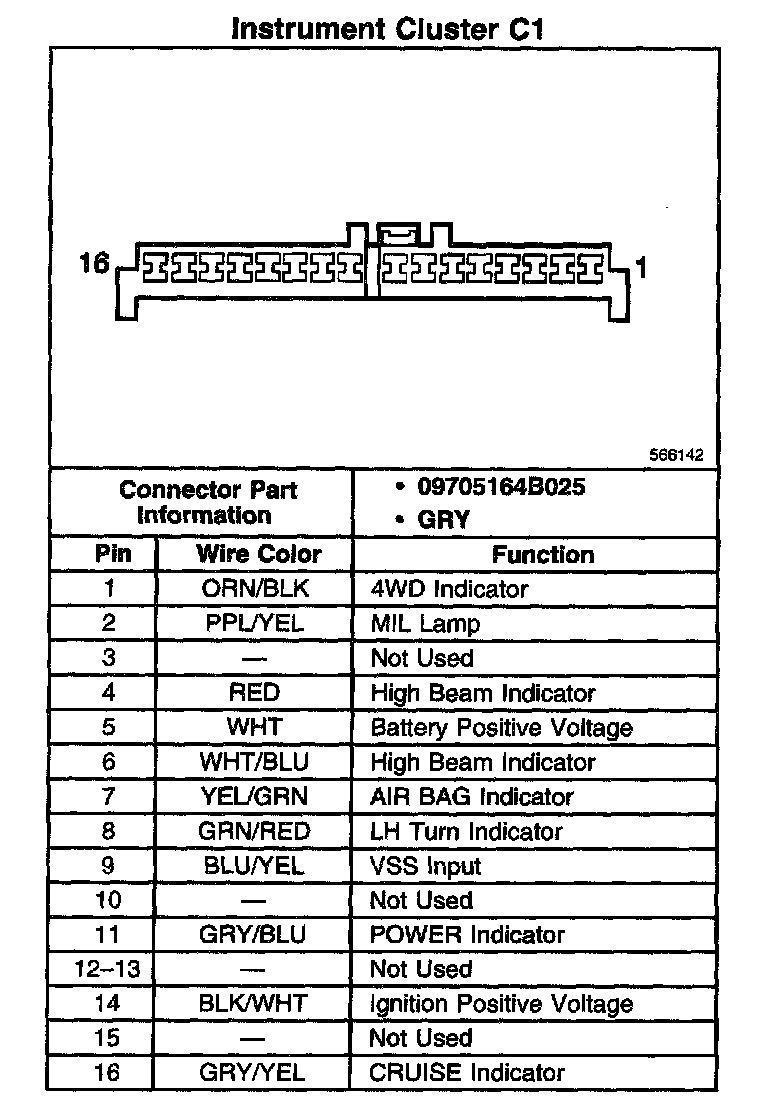

Instrument Cluster C1:

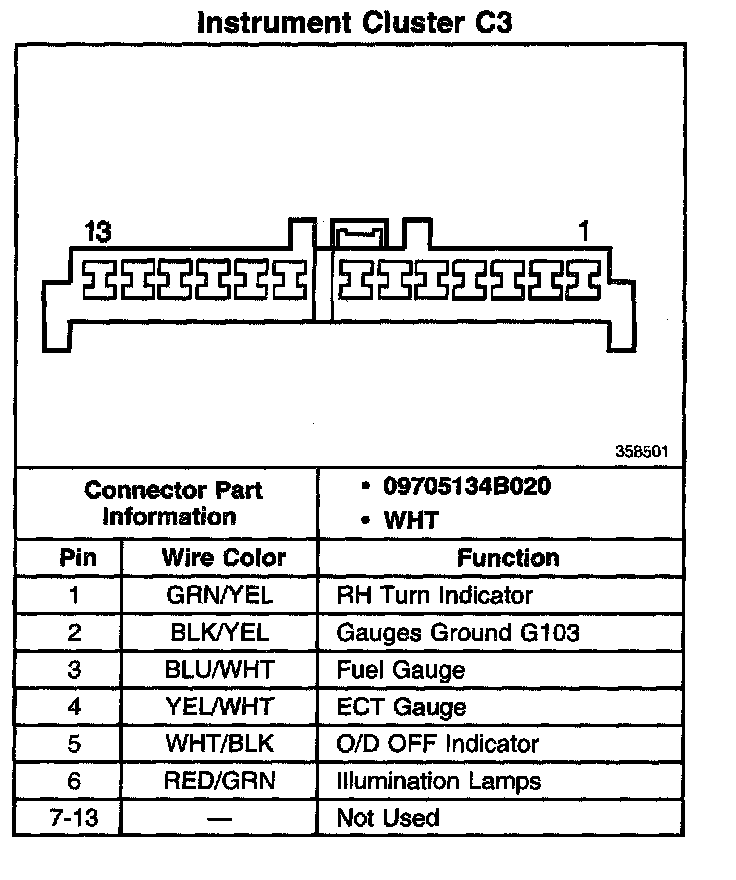

Instrument Cluster C3:
