Wheel Speed Sensor
ABS Connector End Views

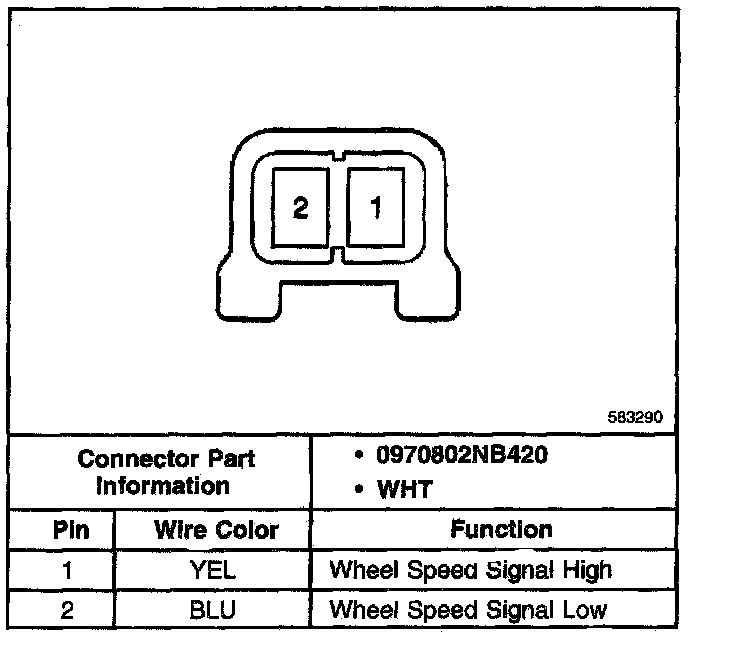

LF
Wheel Speed Sensor

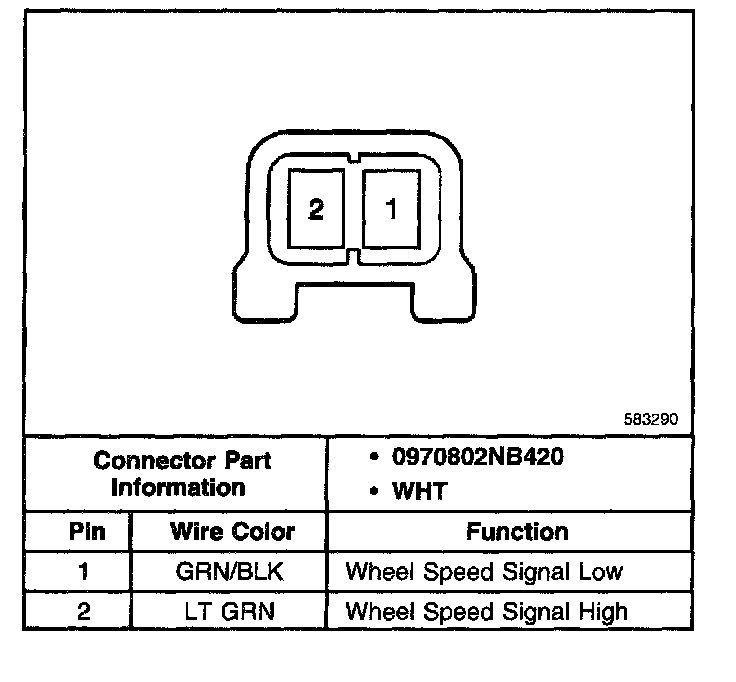

LR
Wheel Speed Sensor

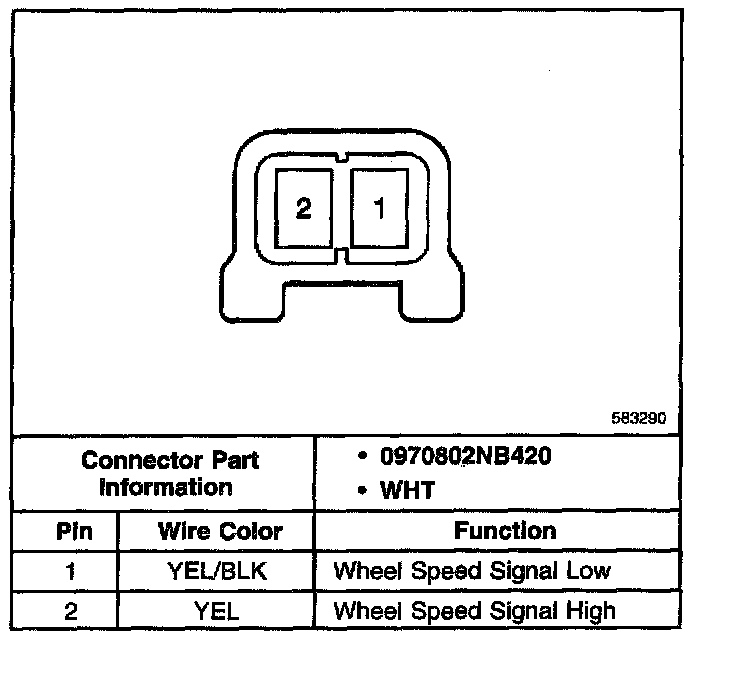

RF
Wheel Speed Sensor

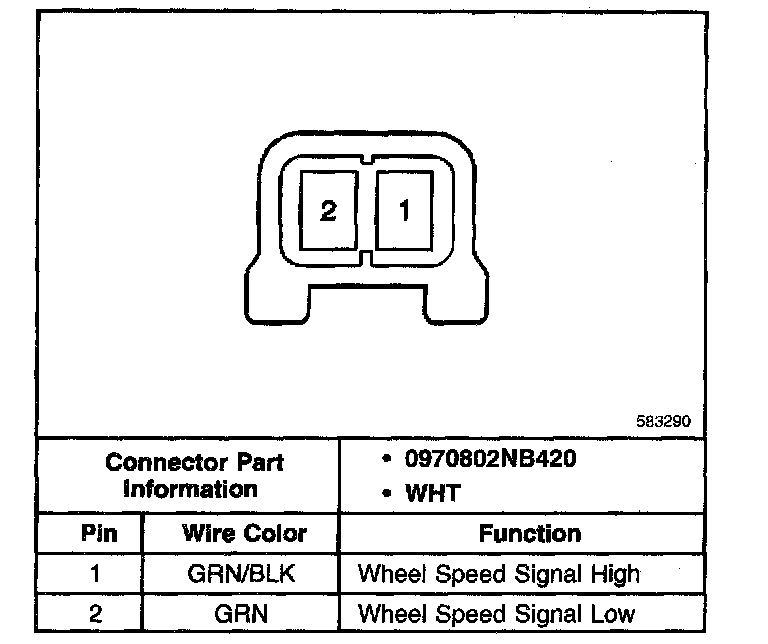

RR
Wheel Speed Sensor
