Transfer Case
Transfer Case

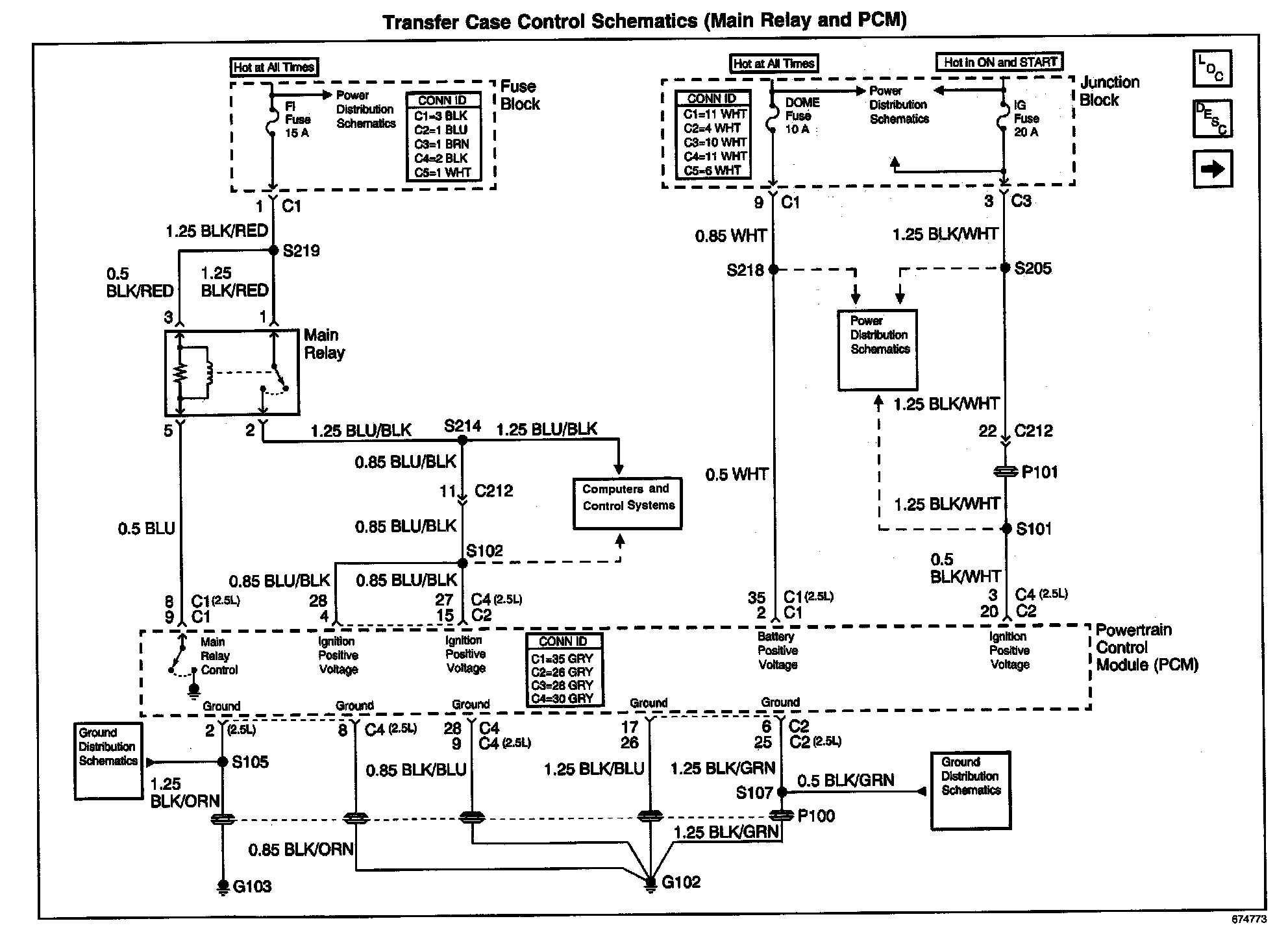

Transfer Case Control Schematics: Main Relay And PCM:

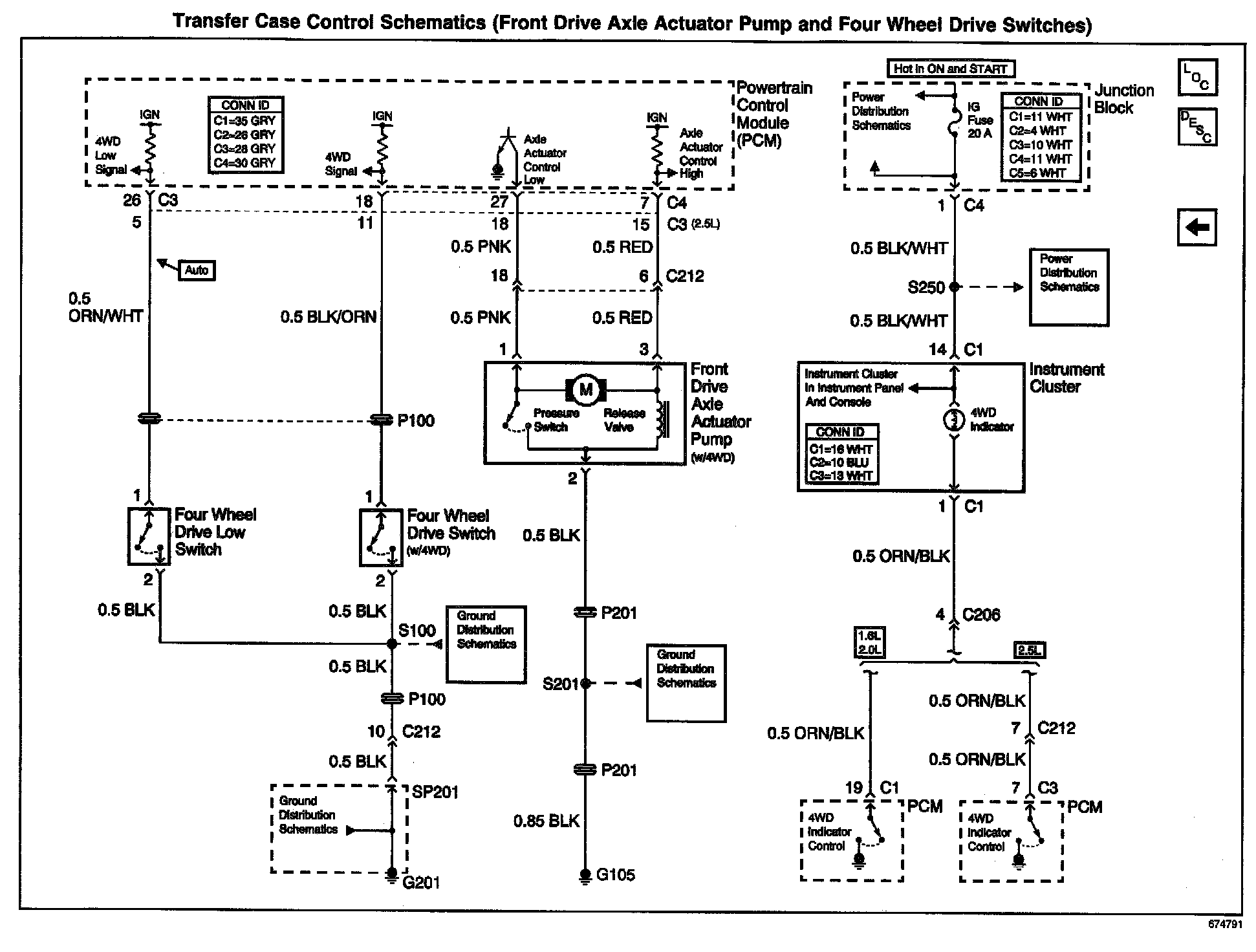

Transfer Case Control Schematics: Front Drive Axle Actuator Pump And Four Wheel Drive Switches:
