Home
>>
Chevy Truck
>>
2002
>>
Tracker 4WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

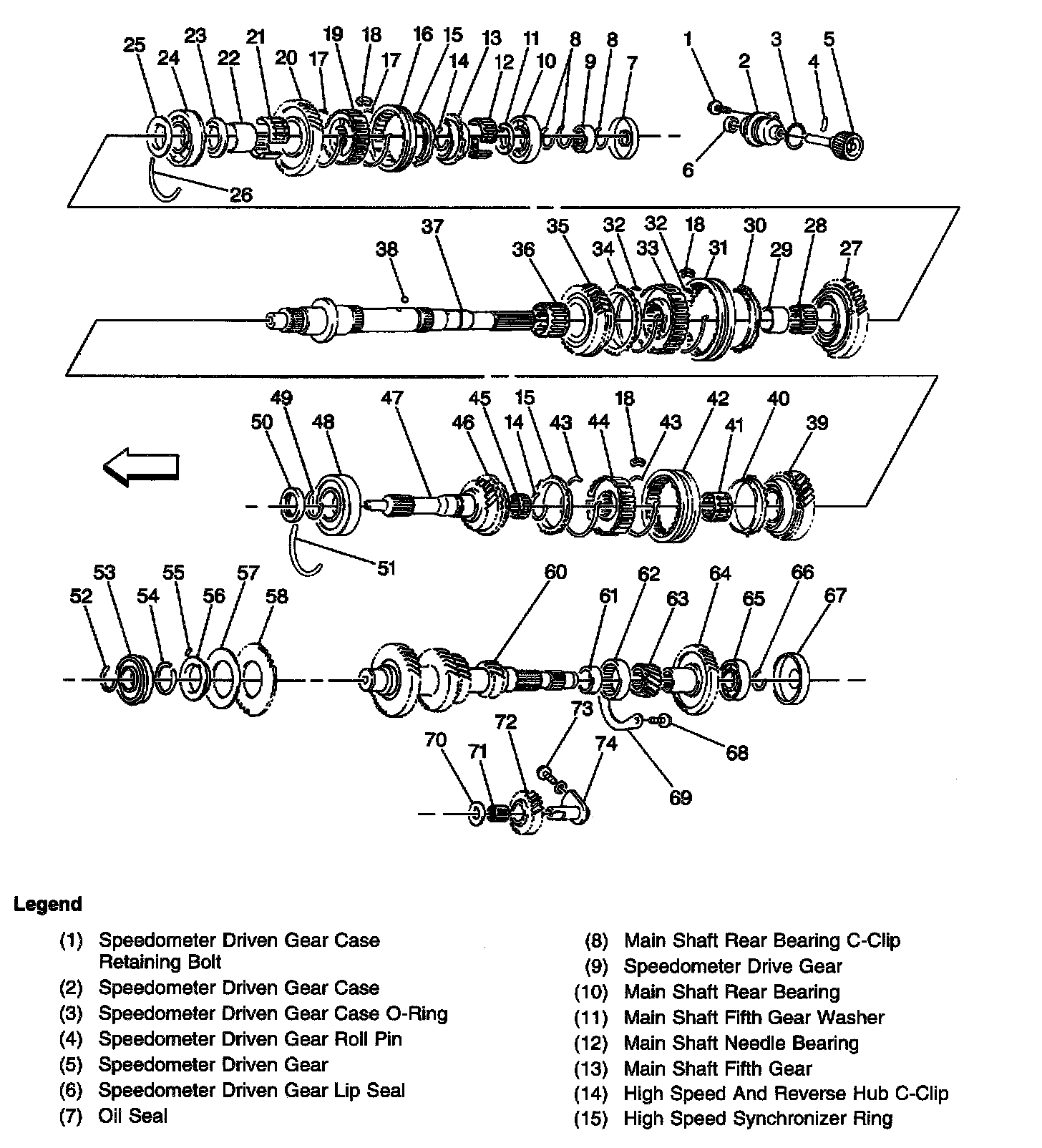

Internal Gear Components
Part 1 of 2

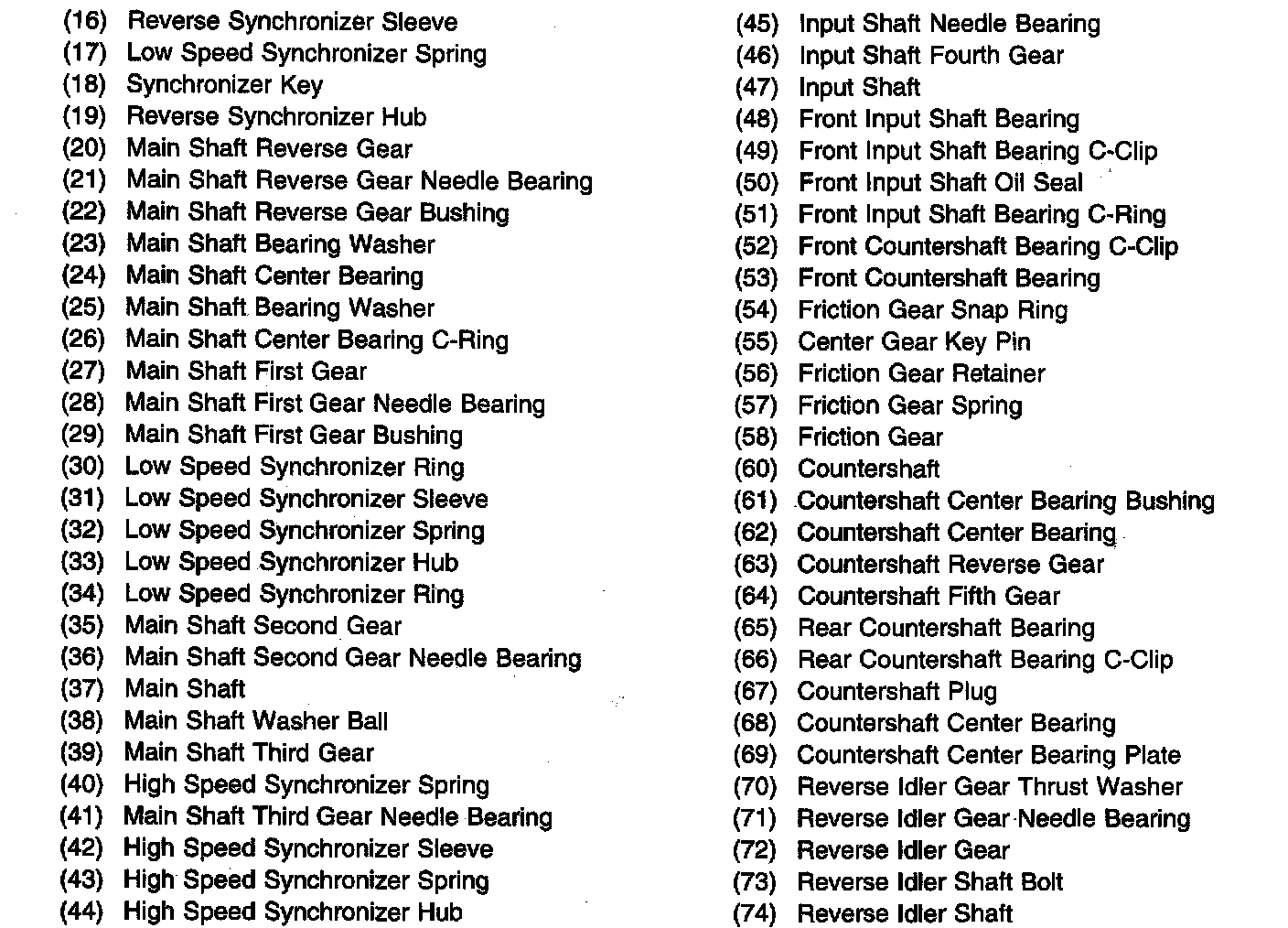

Part 2 of 2
