Main Harness

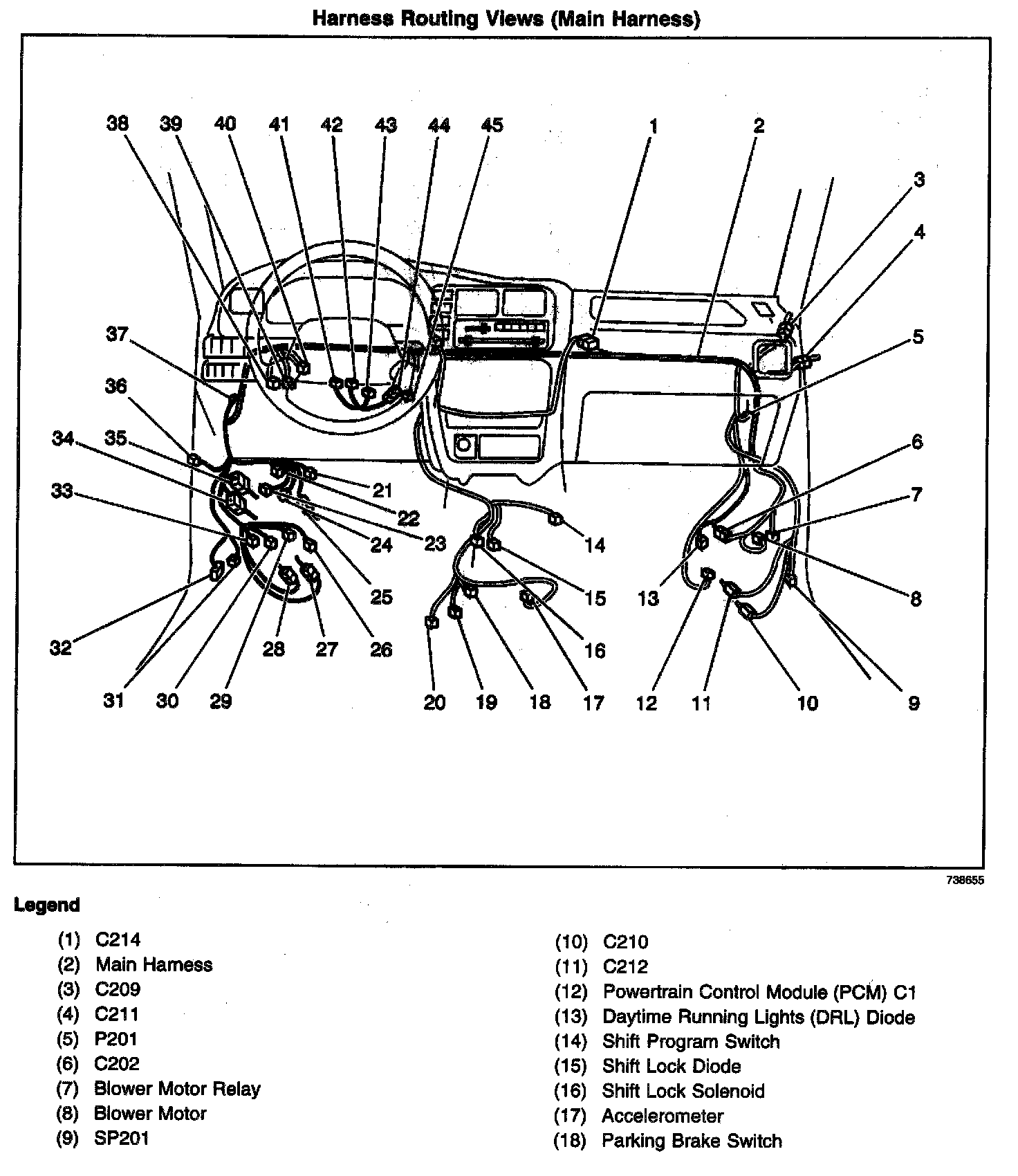

Harness Routing Views (Main Harness) Part 1:



Harness Routing Views (Main Harness) Part 2:
