Heater Core: Service and Repair

HEATER CORE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the heater case.
2. Remove the 4 screws and the 2 clamps.

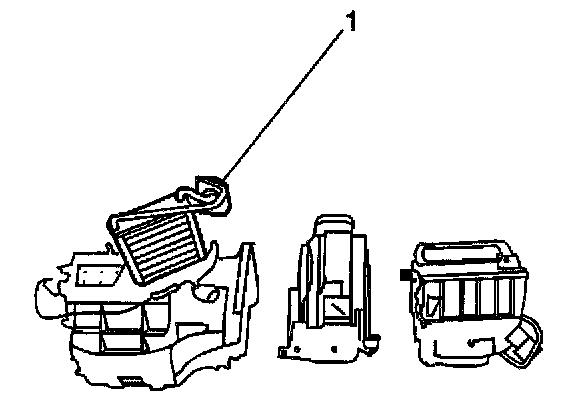

3. Lift the heater core (1) up and out of the heater case.

INSTALLATION PROCEDURE




1. Install the heater core (1) to the heater case.
2. Install the 2 clamps and the 4 screws.
3. Install the heater case to the vehicle.
