Lumbar Replacement - Front Seat

Lumbar Replacement - Front Seat

Removal Procedure

1. Remove the front seat. Refer to Seat Replacement - Front Bucket (Seat Replacement - Front Bucket) .
2. Remove the lumbar control knob. Refer to Lumbar Support Knob Replacement (Lumbar Support Knob Replacement) .
3. Remove the armrest. Refer to Armrest Replacement (Service and Repair) .
4. Remove the front seat back cover. Refer to Seat Back Cover Replacement - Front (Passenger Side) (Seat Back Cover Replacement - Front (Passenger Side))Seat Back Cover Replacement - Front (Driver Side) (Seat Back Cover Replacement - Front (Driver Side)) .

Important: The lumbar support must be in the relaxed position to remove the control cable.






5. Remove the lumbar control cable from the lumbar control.

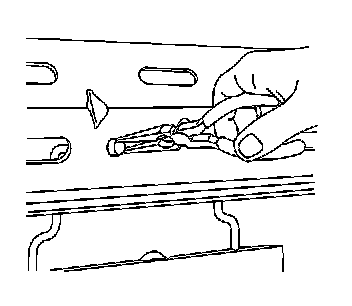

6. Remove the lumbar support from the front seat back by compressing the four lumbar support push-in retainers.




7. Remove the lumbar support from the front seat back.



Installation Procedure





1. Install the lumbar support to the mounting holes in the front seat back.
2. Install the lumbar support to the front seat back, pressing into place until fully seated.




3. Install the lumbar support cable to the lumbar support control.
4. Install the front seat back cover. Refer to Seat Back Cover Replacement - Front (Passenger Side) (Seat Back Cover Replacement - Front (Passenger Side))Seat Back Cover Replacement - Front (Driver Side) (Seat Back Cover Replacement - Front (Driver Side)) .
5. Install the front seat. Refer to Seat Replacement - Front Bucket (Seat Replacement - Front Bucket) .
6. Install the armrest. Refer to Armrest Replacement (Service and Repair) .
7. Install the lumbar control knob. Refer to Lumbar Support Knob Replacement (Lumbar Support Knob Replacement) .
