Home >> Chevy Truck >> 2002 >> Tracker 4WD V6-2.5L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp >> RH

RH

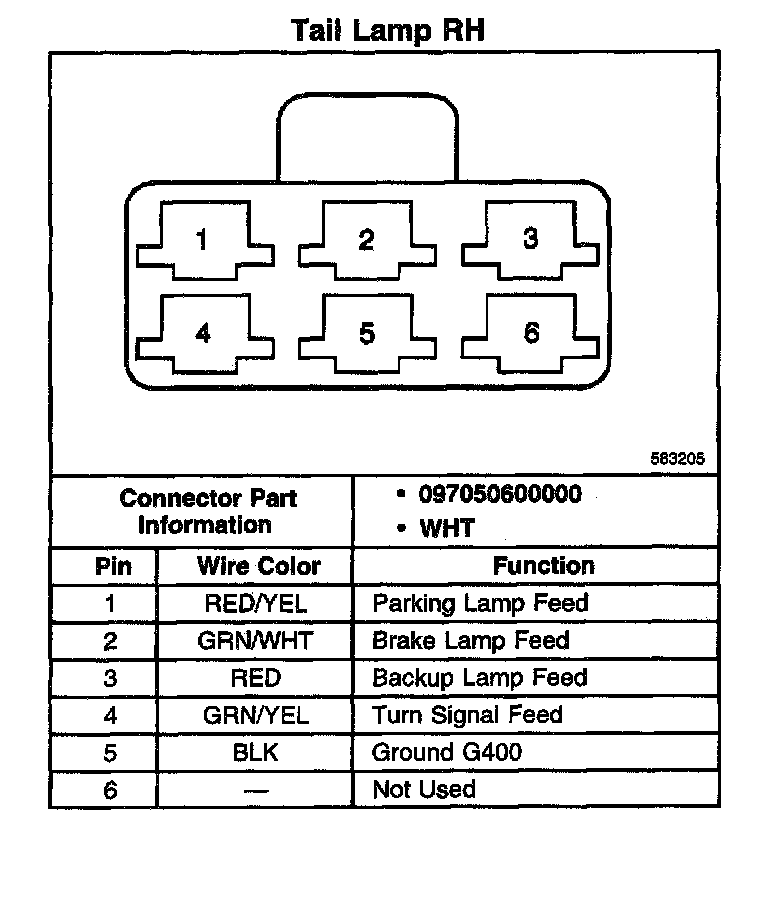

Tail Lamp RH:
