Cruise Indicator, Cruise Control Mode Switch, and Main Cruise Control Switch
Cruise Indicator, Cruise Control Mode Switch, and Main Cruise Control Switch

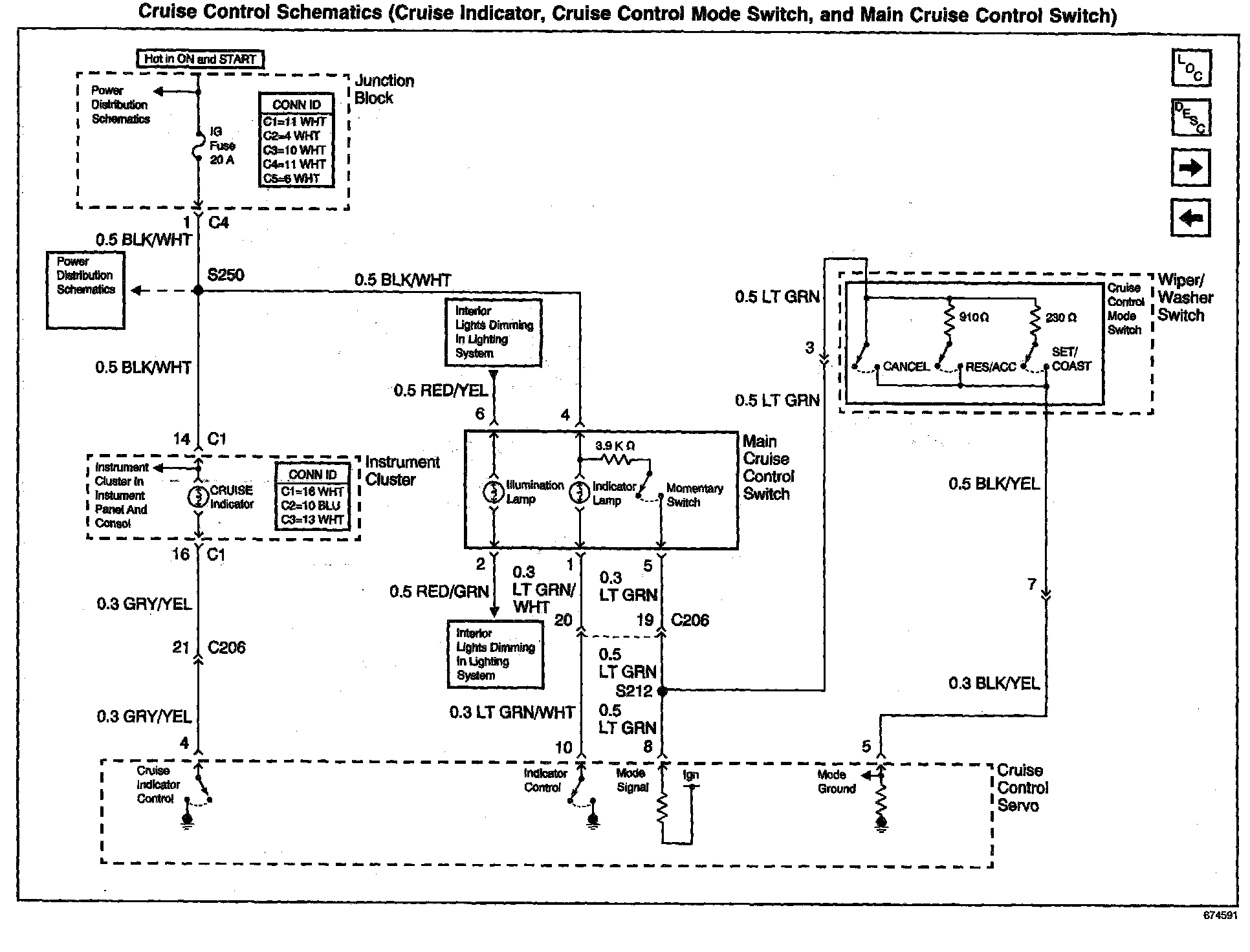

Cruise Control Schematics: Cruise Indicator, Cruise Control Mode Switch, And Main Cruise Control Switch:
