Keyless Entry

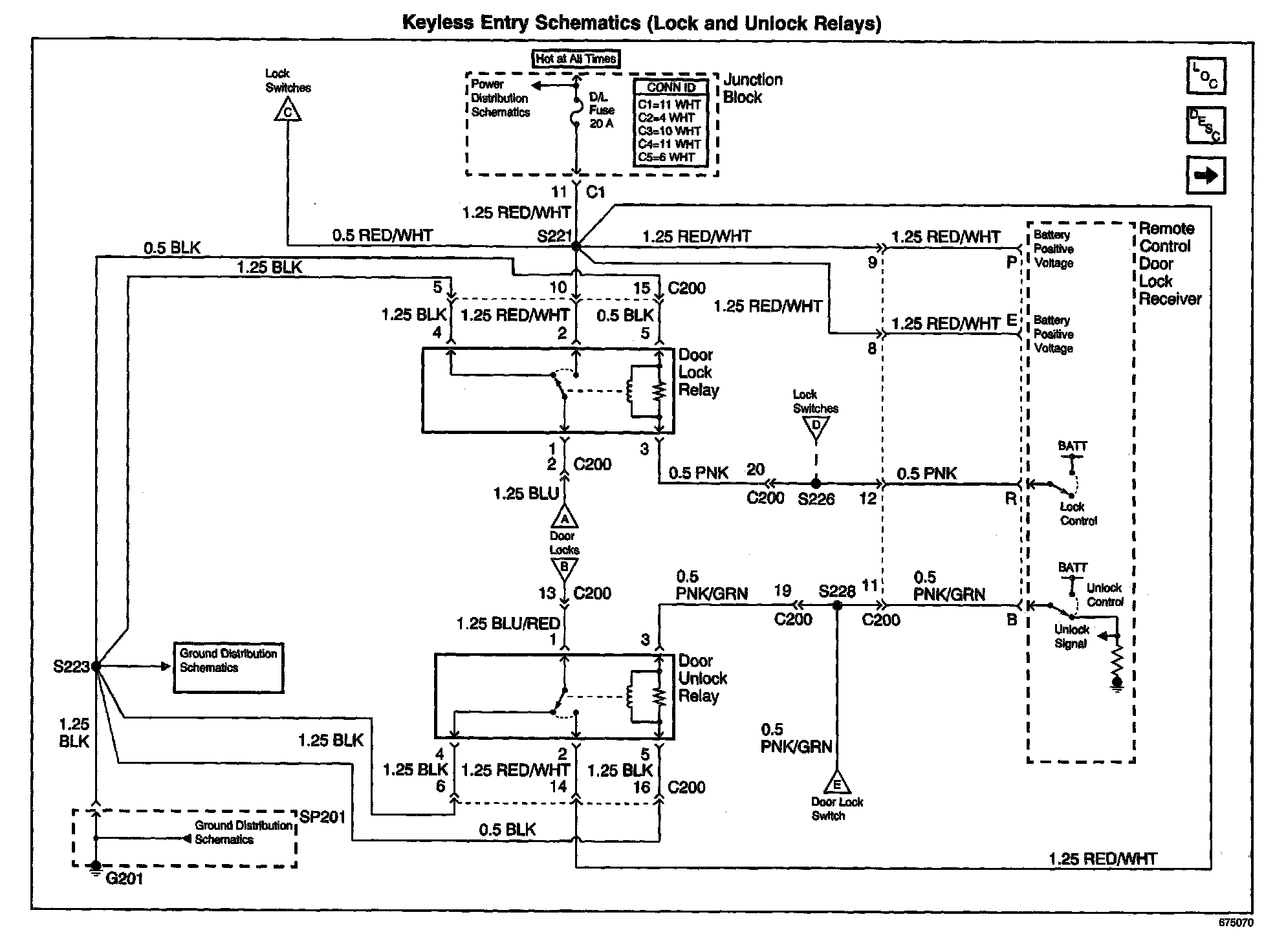

Keyless Entry Schematics: Lock And Unlock Relays:

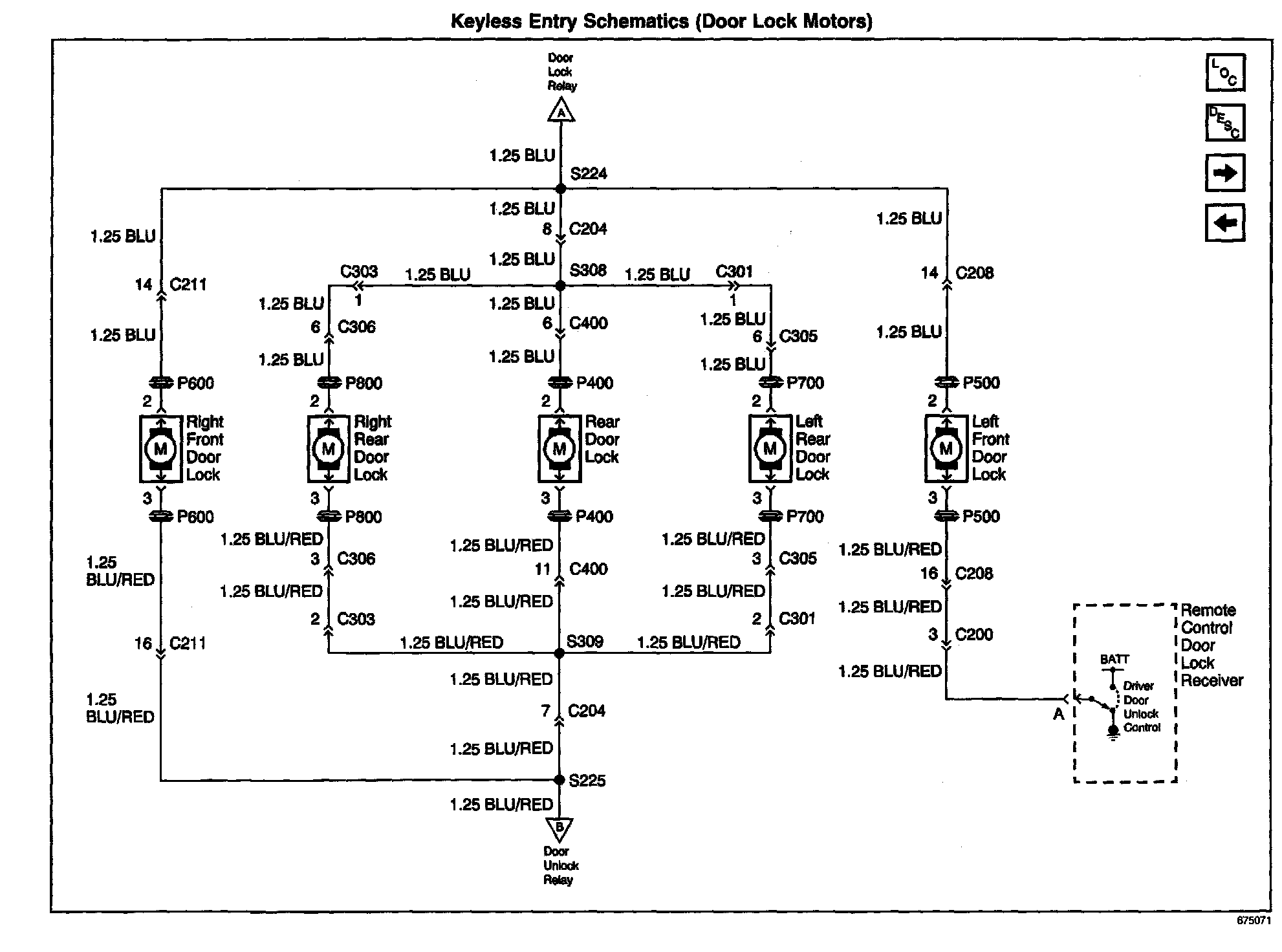

Keyless Entry Schematics: Door Lock Motors:

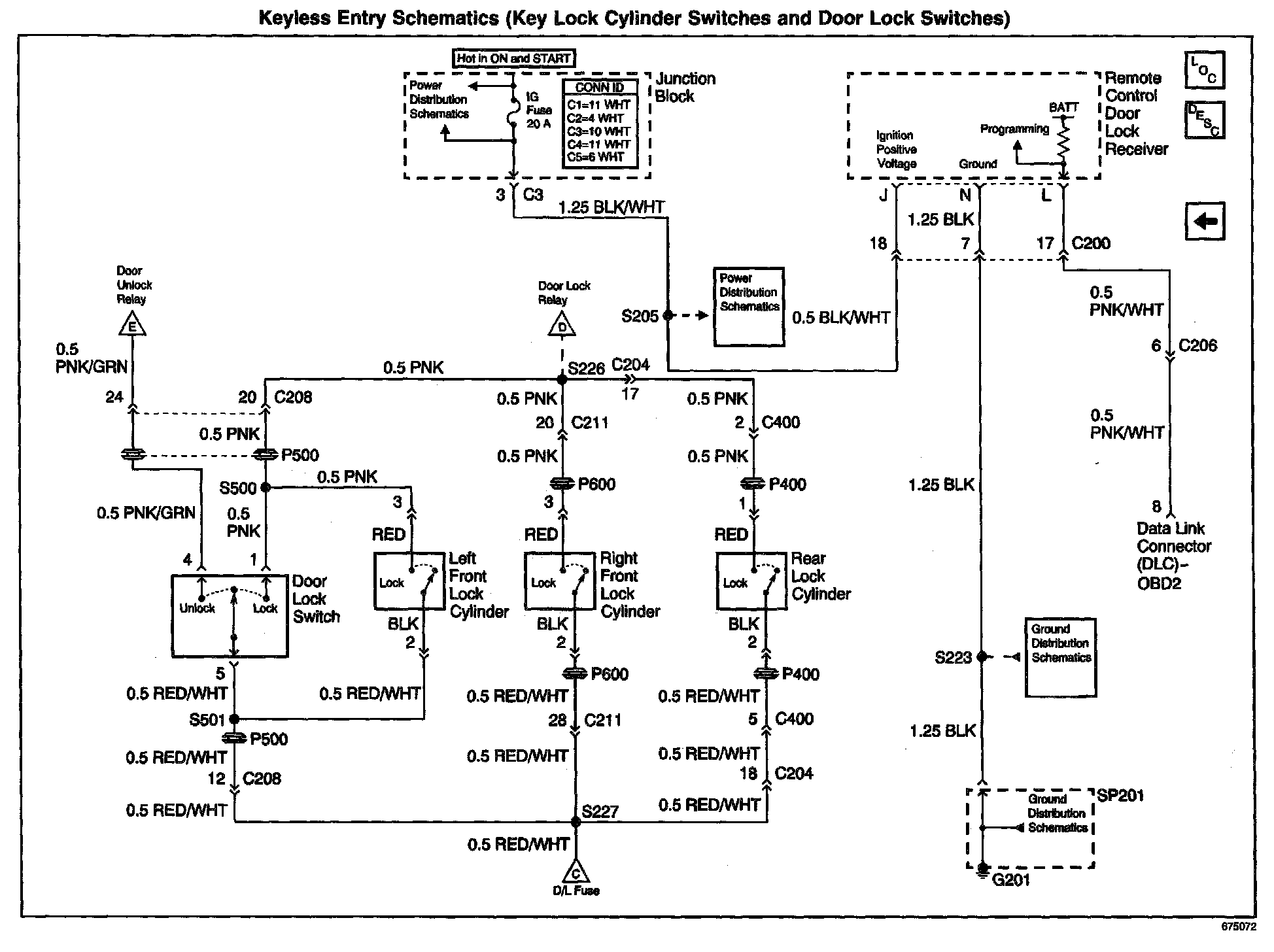

Keyless Entry Schematics: Key Lock Cylinder Switches And Door Lock Switches:
