Chevy Truck
>>
2002
>>
Tracker 4WD V6-2.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Power Locks
Power Locks

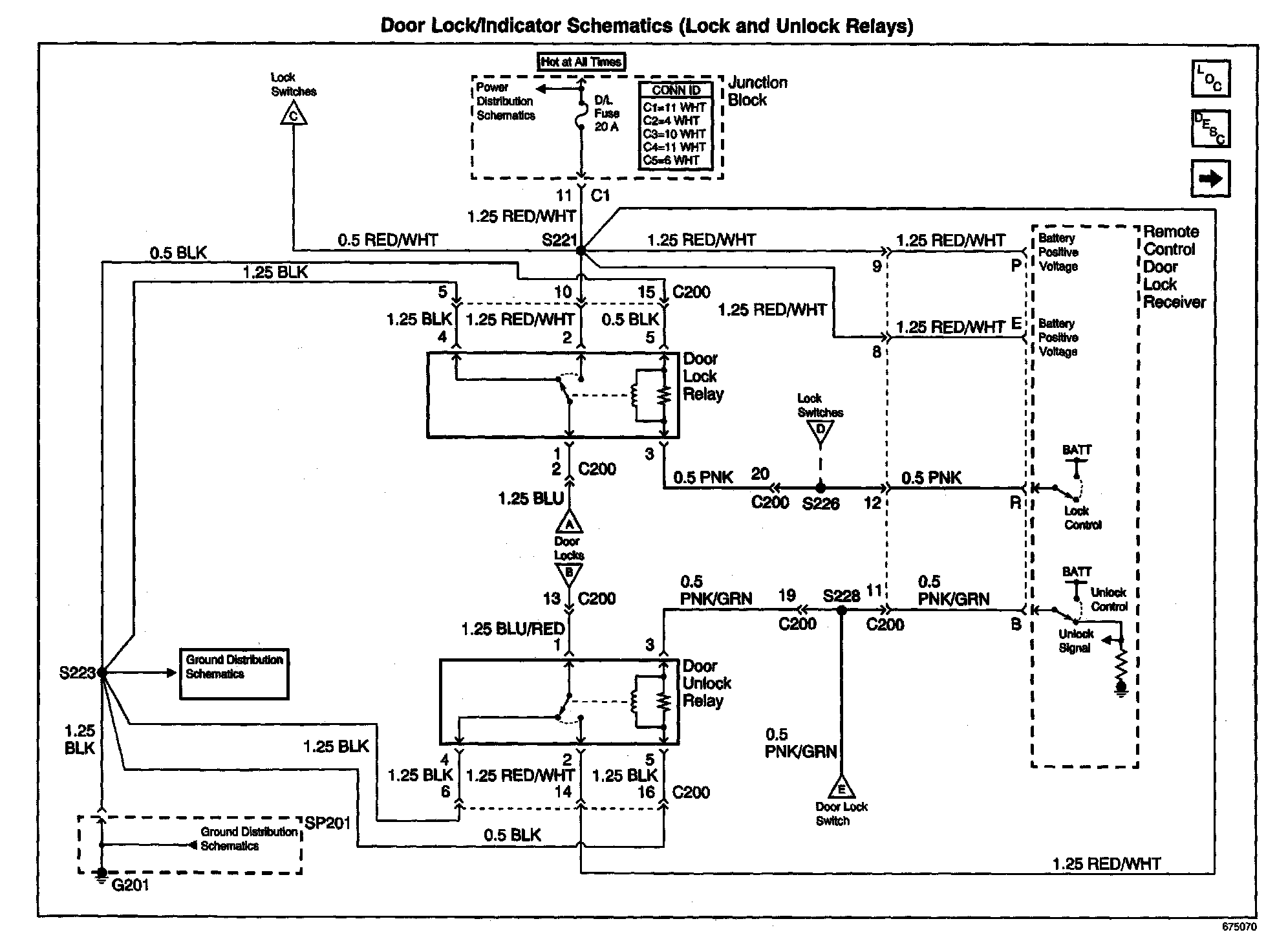

Door Lock/Indicator Schematics: Lock And Unlock Relays:
