73. Oil Pump Installation

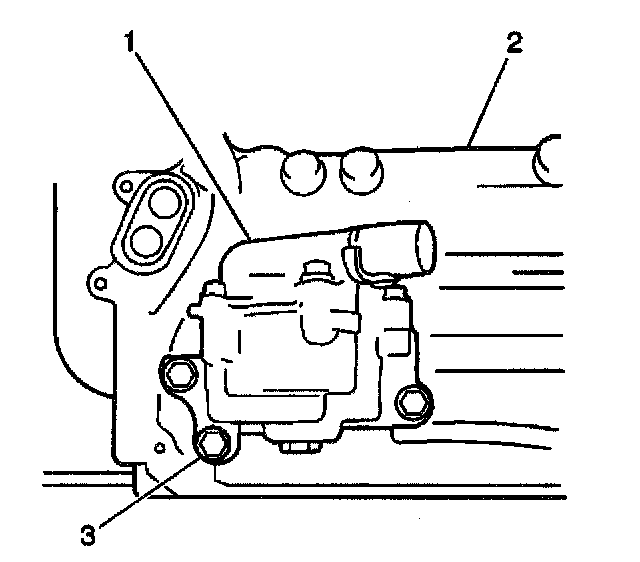

Oil Pump Installation1. Install the oil pump with the chain on the sprocket and secure with the 3 bolts verifying; the long bolt (3) is in the proper location.
- Tighten the bolts to 27 Nm (19.5 ft. lbs.).

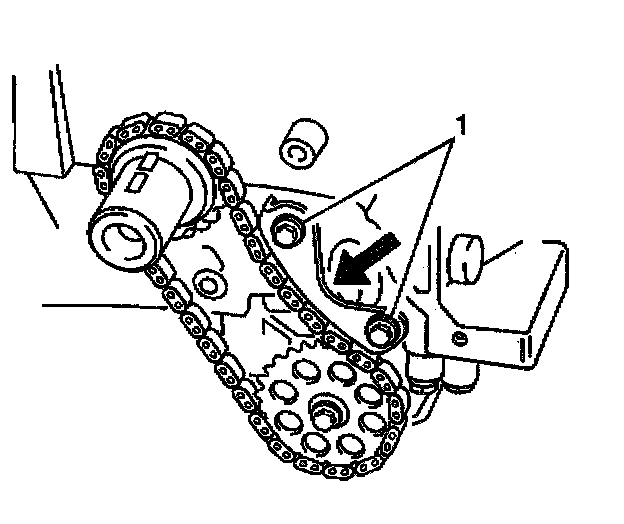

2. Push the center of the oil pump chain guide with a force of 0.5 - 0.6 N (0.11 - 0.13 lb.) and secure the guide with the 2 bolts (1).
- Tighten the 2 bolts to 11 Nm (7.5 ft. lbs.).
