Instrument Cluster Indicators

Indicators:

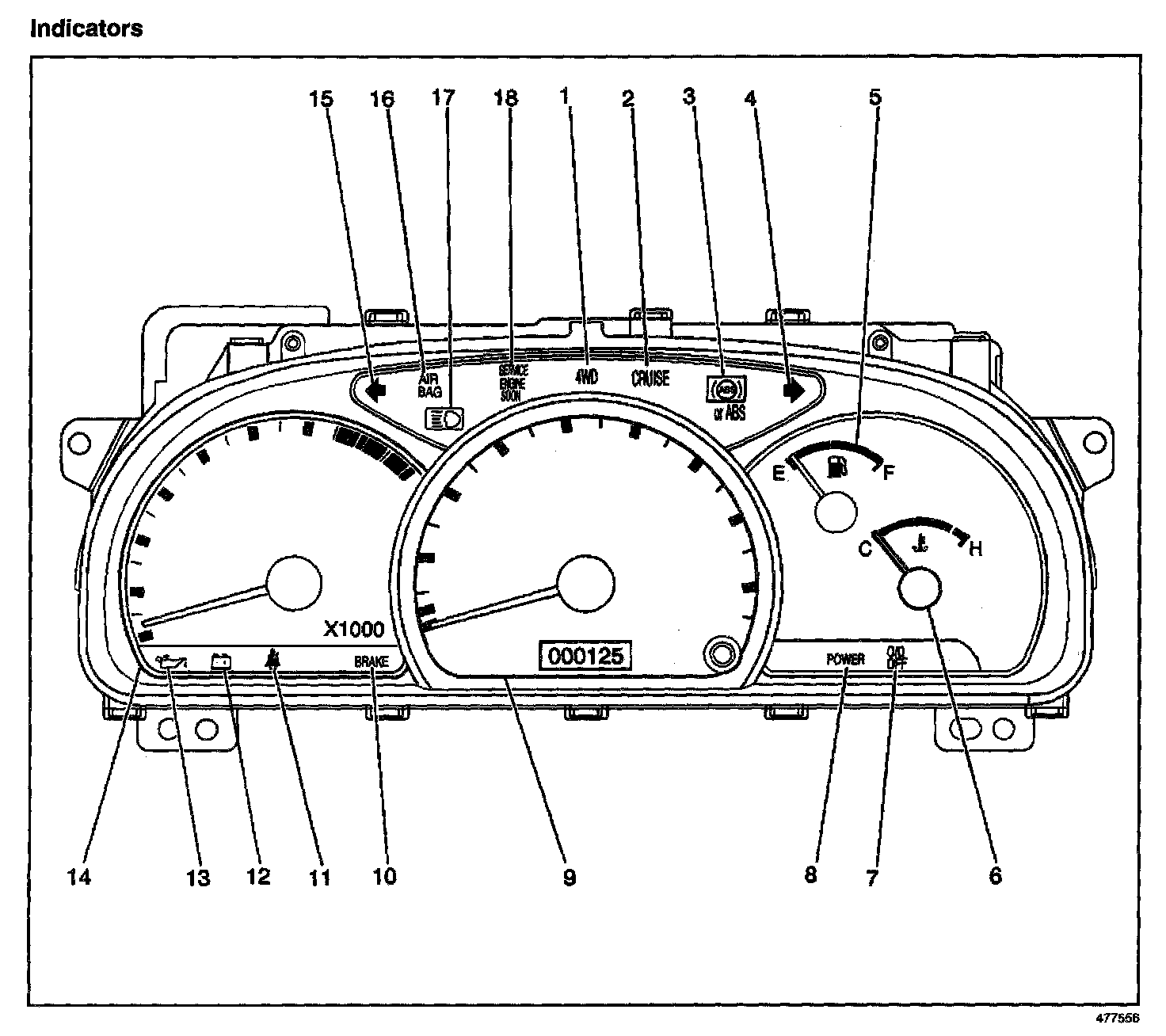

The instrument panel cluster includes the following indicators:
^ ABS (3), if the vehicle is equipped with an antilock brake system
^ AIR BAG (16)
^ BRAKE (10)
^ Charging system (12)
^ CRUISE (2), if equipped
^ Fasten seat belt (11)
^ High beam (17)
^ O/D OFF (7), if the vehicle is equipped with the 4-speed A/T
^ Oil pressure (13)
^ POWER (8), if the vehicle is equipped with the 4-speed A/T
^ SERVICE ENGINE SOON (18)
^ Turn signals (4,15)
^ 4WD (1), if equipped

The indicator bulbs are serviceable from the rear of the instrument cluster. Refer to Instrument Cluster Lamp Replacement.

The instrument cluster indicators may differ slightly from model to model, depending on the following factors:
^ The transmission selection
^ The options
^ The model selection
