Electronic Noise Suppressor: Service and Repair

NOISE SUPPRESSOR FILTER REPLACEMENT

REMOVAL PROCEDURE

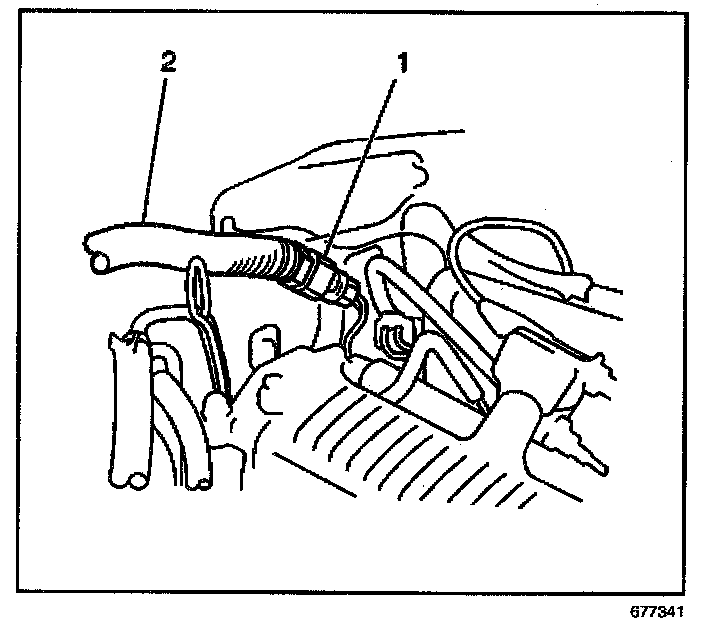

1. Locate the noise suppressor filter (1) taped to the engine harness (2) behind the right cylinder head.
2. Remove the noise suppressor filter (1) from the harness electrical connector.

INSTALLATION PROCEDURE

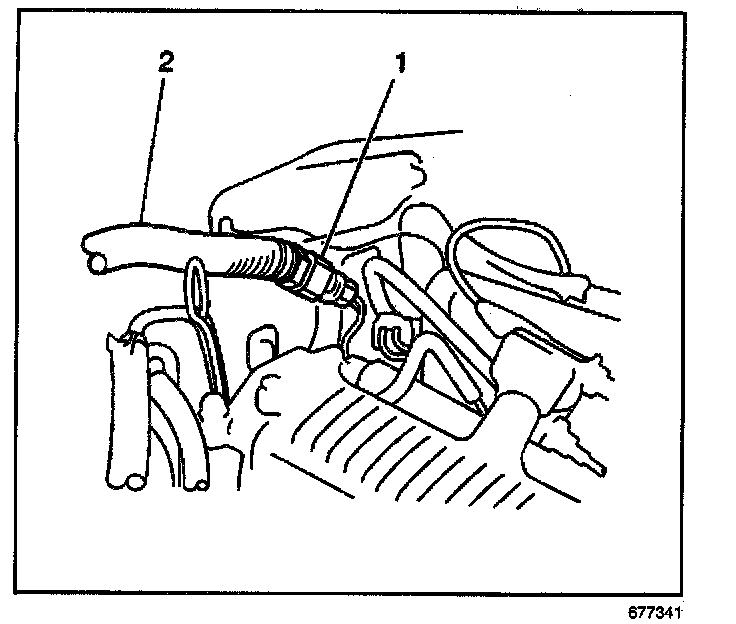

1. Install the noise suppressor filter (1) to the electrical connector located in the electrical harness (2).
2. Secure the noise suppressor filter (1) to the harness with electrical tape as necessary.
