Transmission General Information

This automatic is a full automatic type with three speeds plus overdrive. The torque converter is a three element, one step and two phase type and is equipped with an electronically controlled lock up mechanism. The internal drive components consist of 3 sets of planetary gear units, 3 disc type clutches, 4 disc type brakes and 3 one-way clutches.

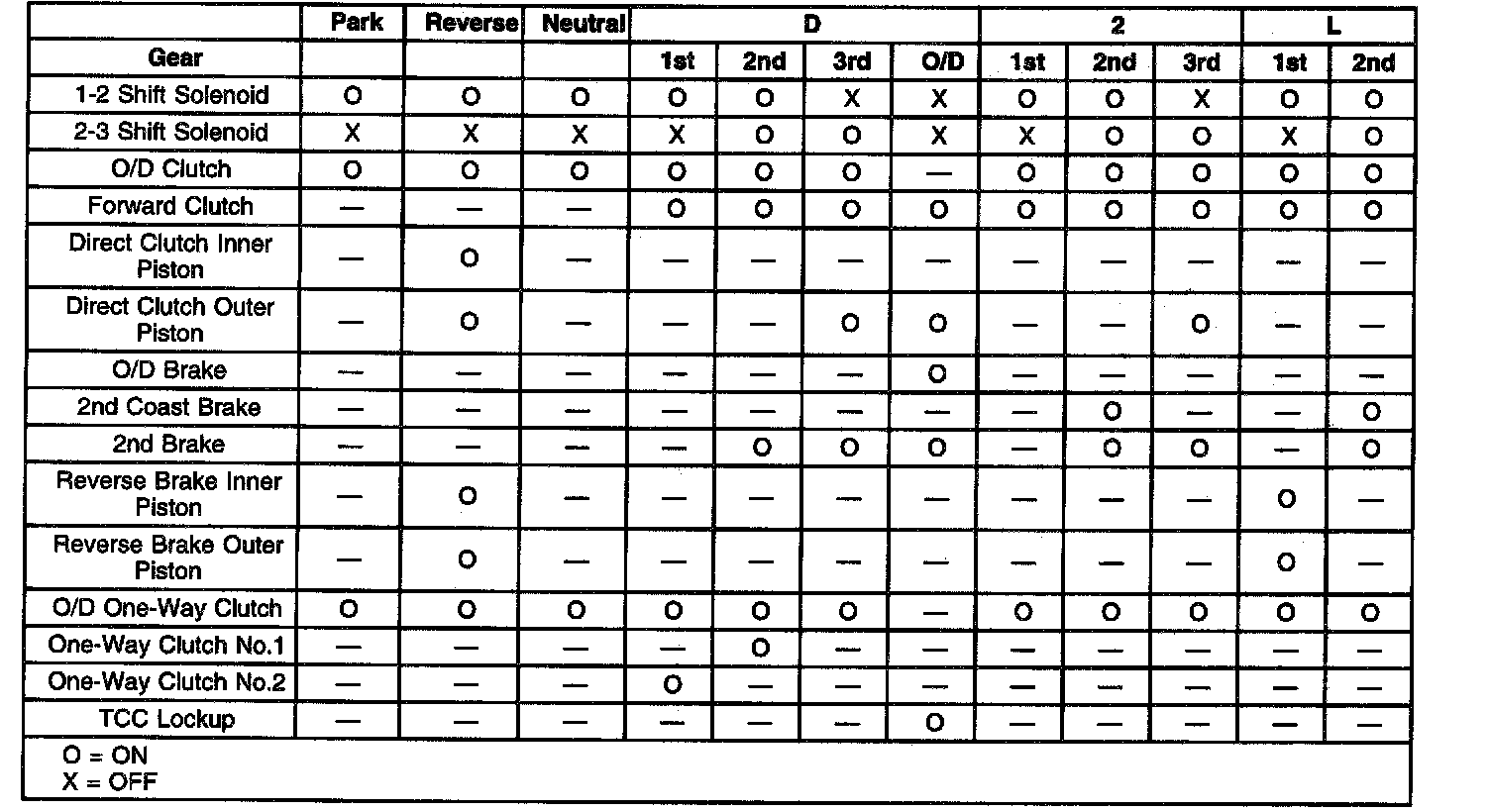

Transmission Component Application Chart
