Component Locations

Automatic Transmission Electronic Component Views

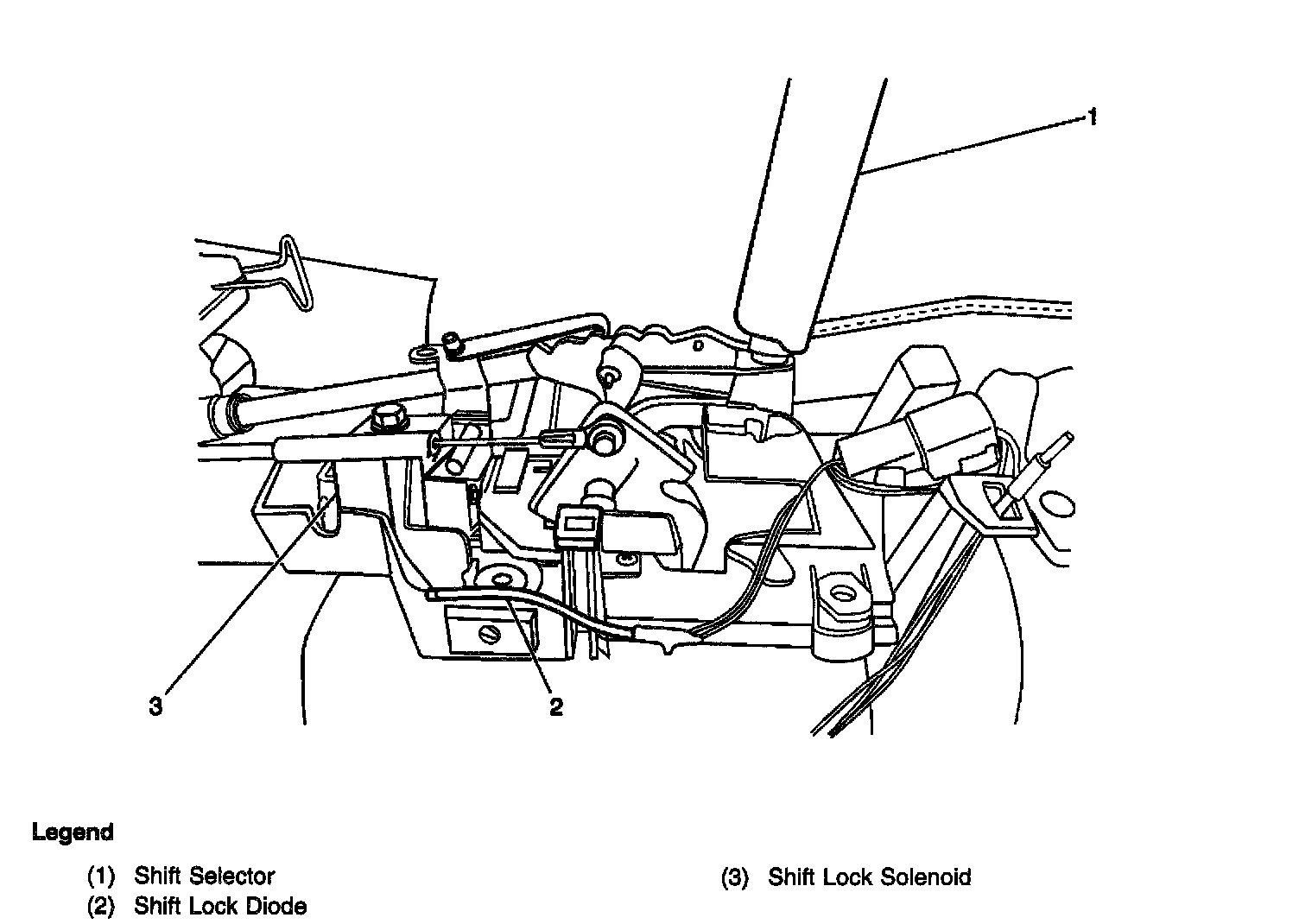

Center Floor Console

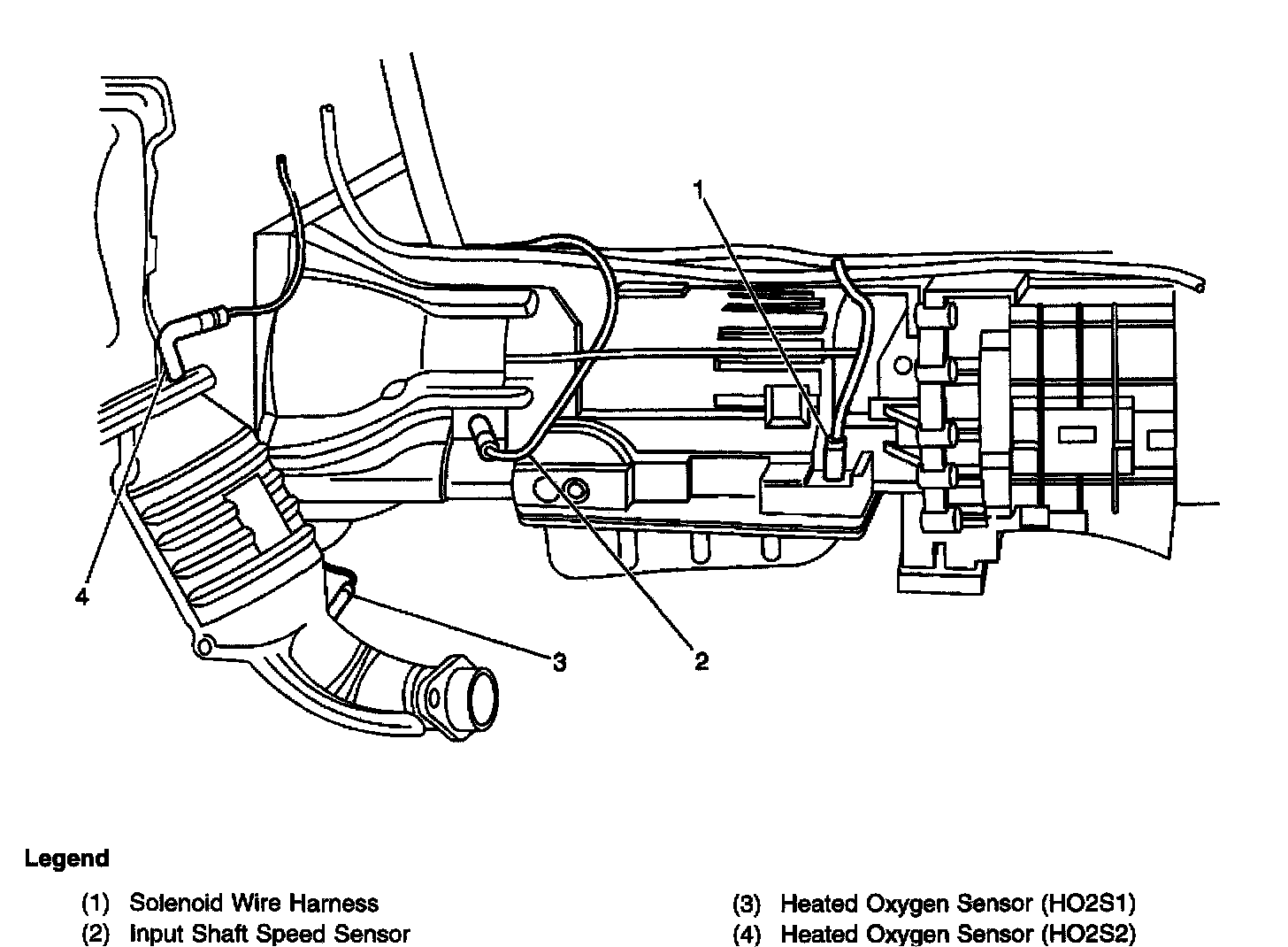

Transmission - Left Side

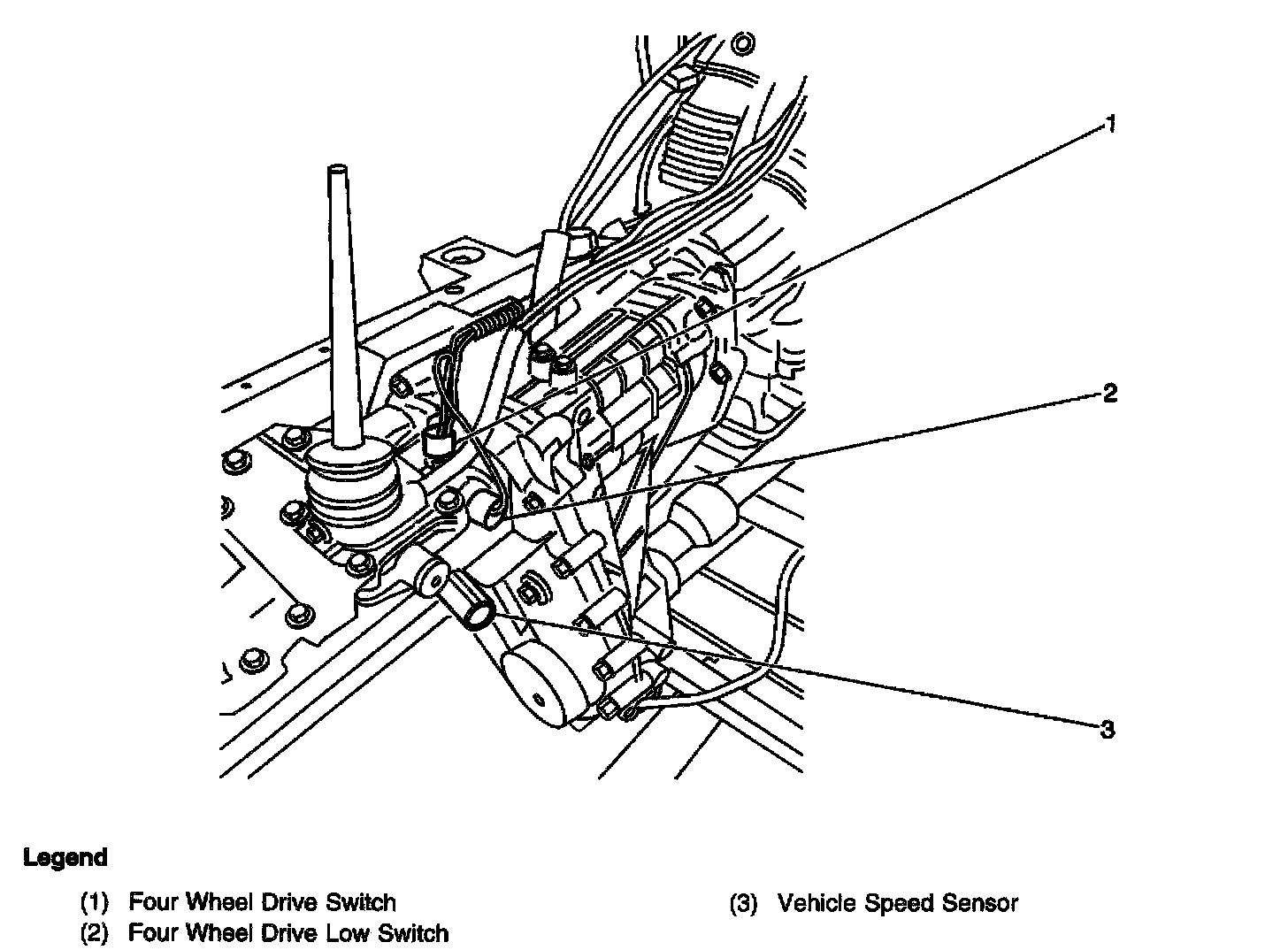

Transfer Case
