Connector Locations

Automatic Transmission External Component Connector End Views

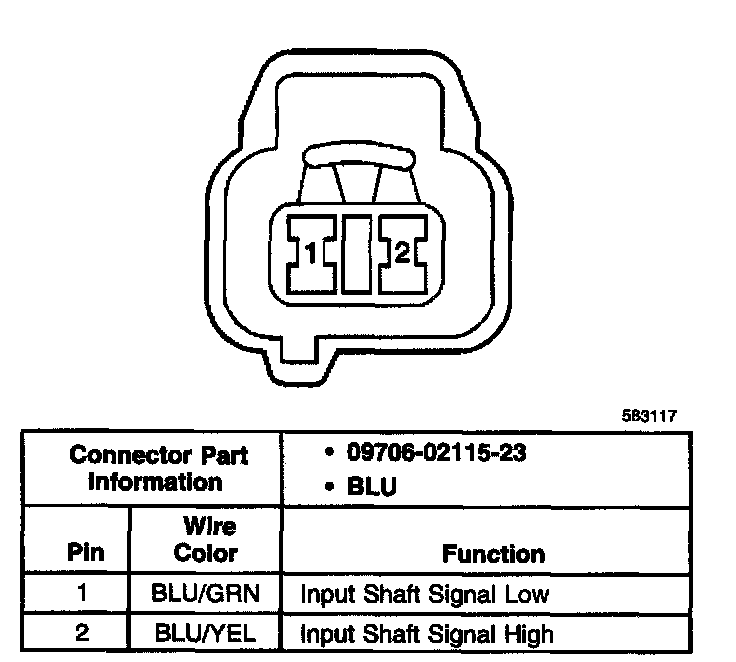

Input Shaft Speed Sensor

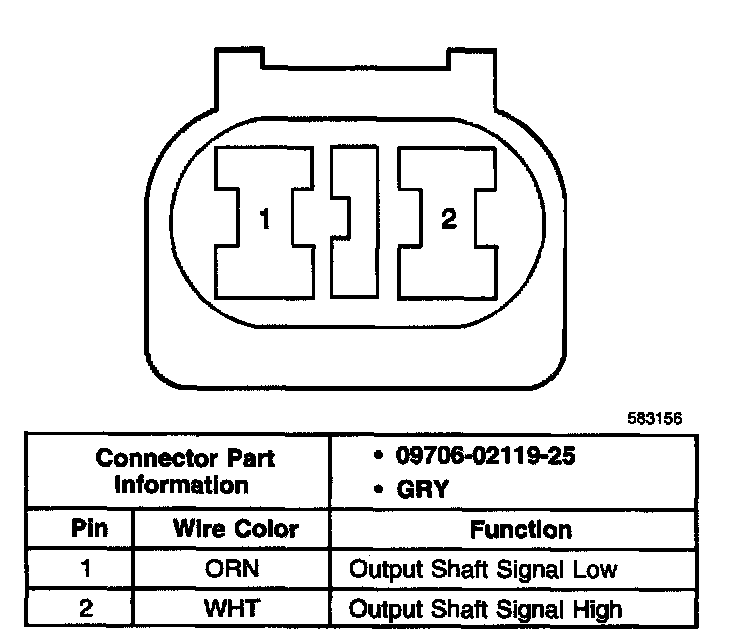

Output Shaft Speed Sensor

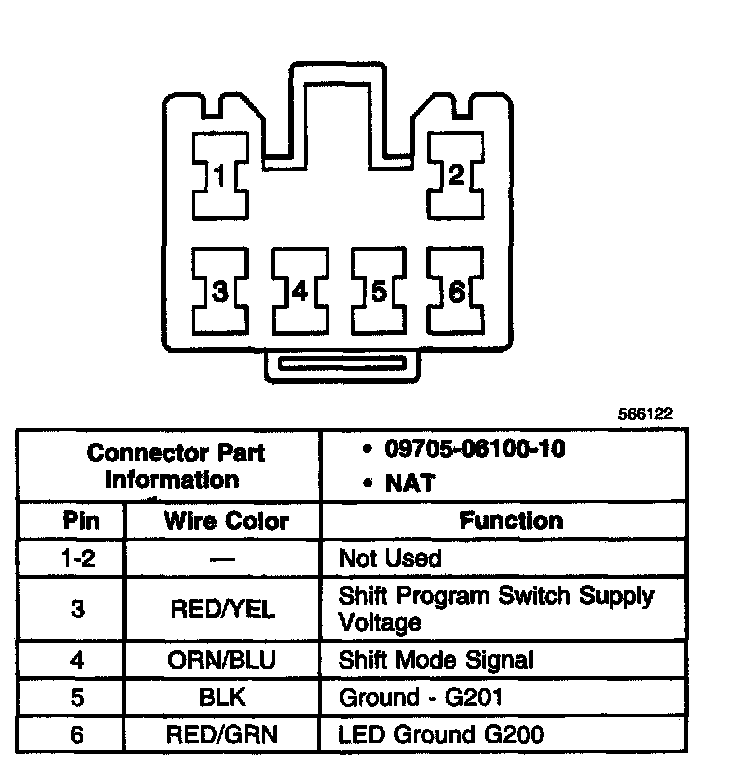

Shift Program Switch

Transmission Range Switch

Transmission Shift Solenoid

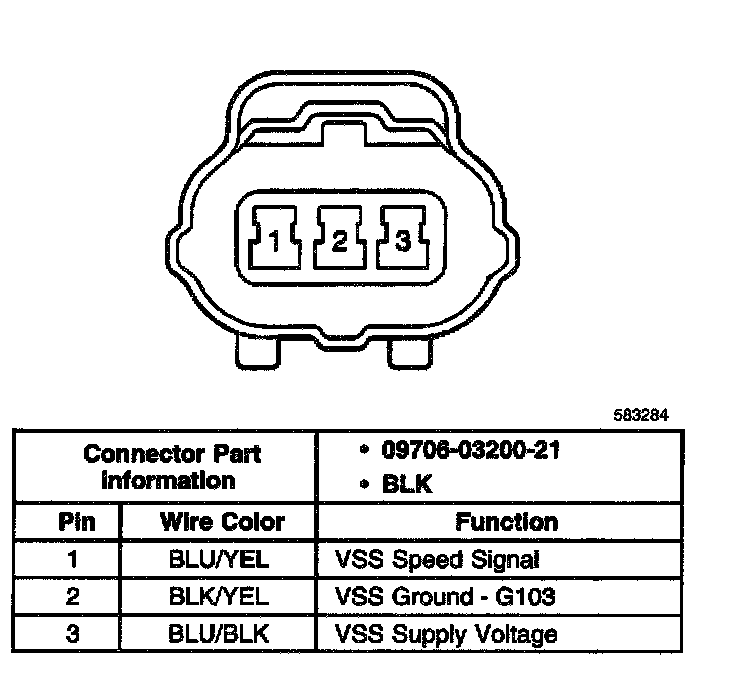

Vehicle Speed Sensor
