Seat Back Extension Panel Replacement - Rear No. 2

REMOVAL PROCEDURE

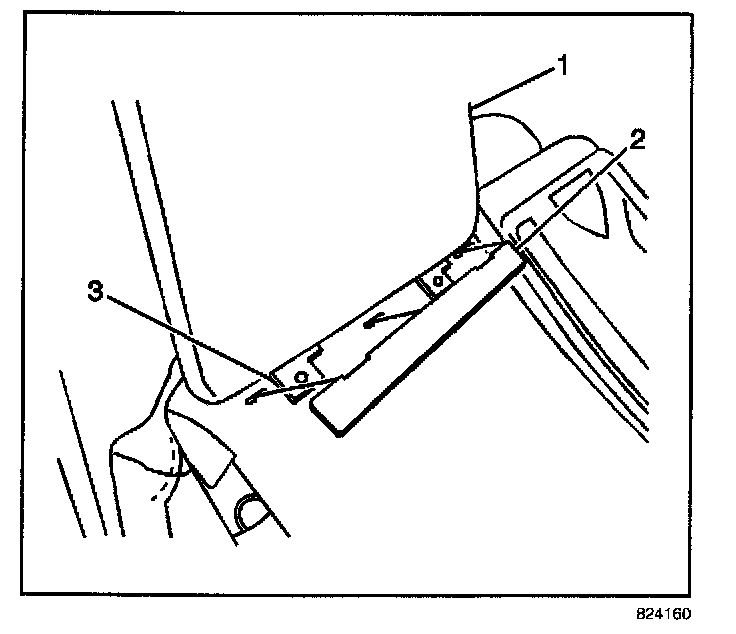

1. Remove the extension panel hinge finish cover (2).
2. Remover the screws (3) securing the extension panel (1) to the seat back.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

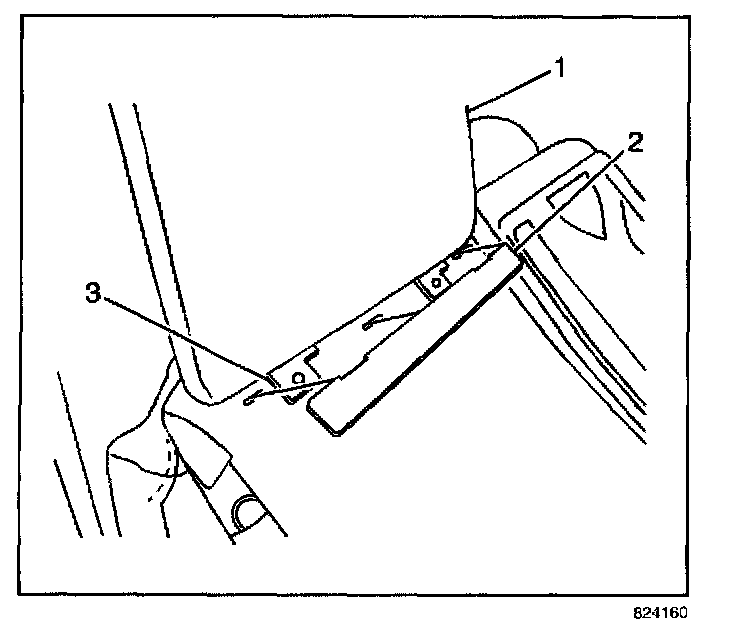

1. Install the screws (3) securing the seat back extension panel (1) to the seat back.

Tighten
Tighten the rear seat back extension panel mounting screws to 10 N.m (88 lb in).

2. Install the extension panel hinge finish cover (2).
