Intake Air Temperature Sensor

Air Temperature Sensor - Lower Left:

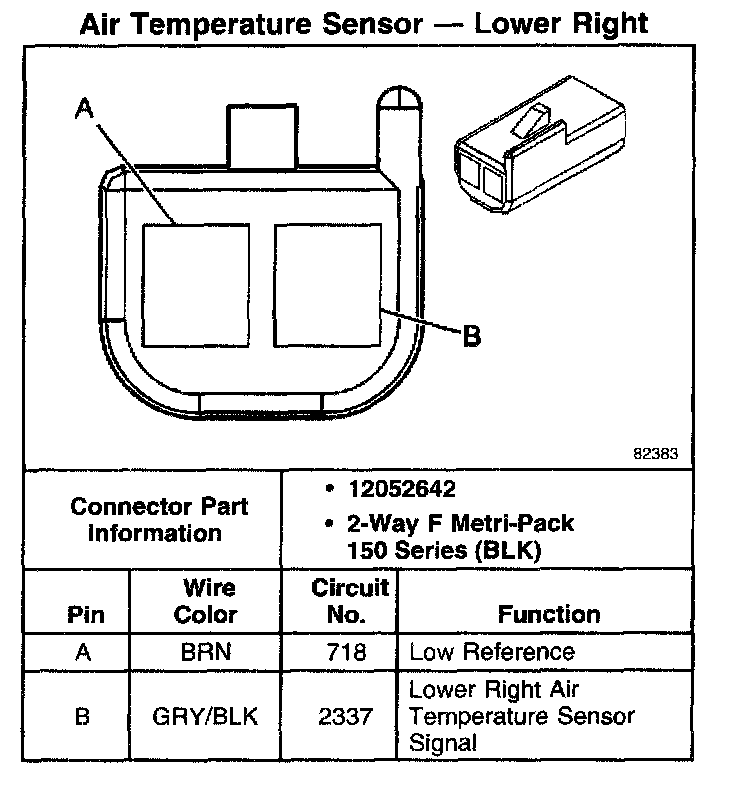

Air Temperature Sensor - Lower Right:




Air Temperature Sensor - Upper Left:

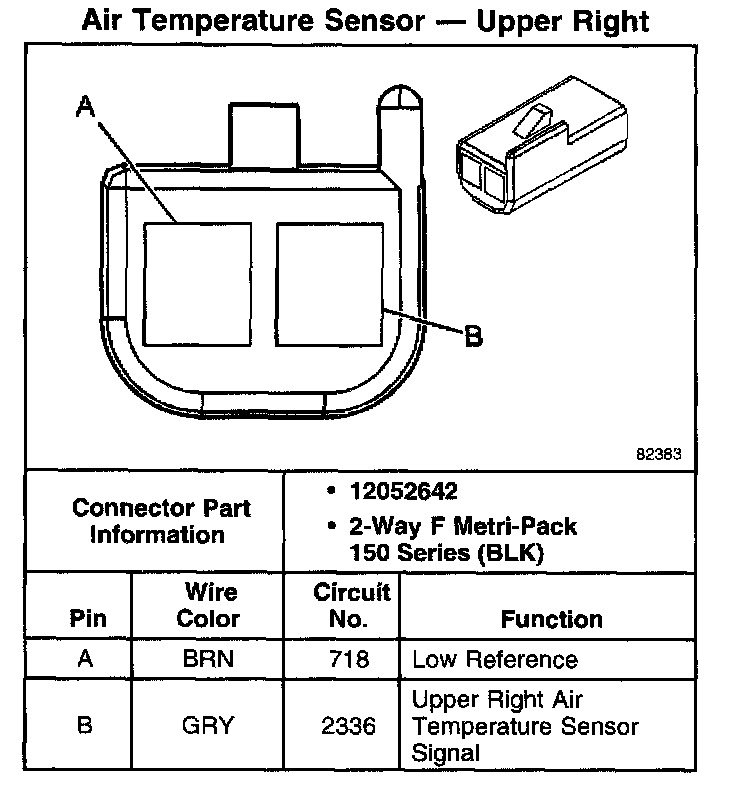

Air Temperature Sensor - Upper Right:

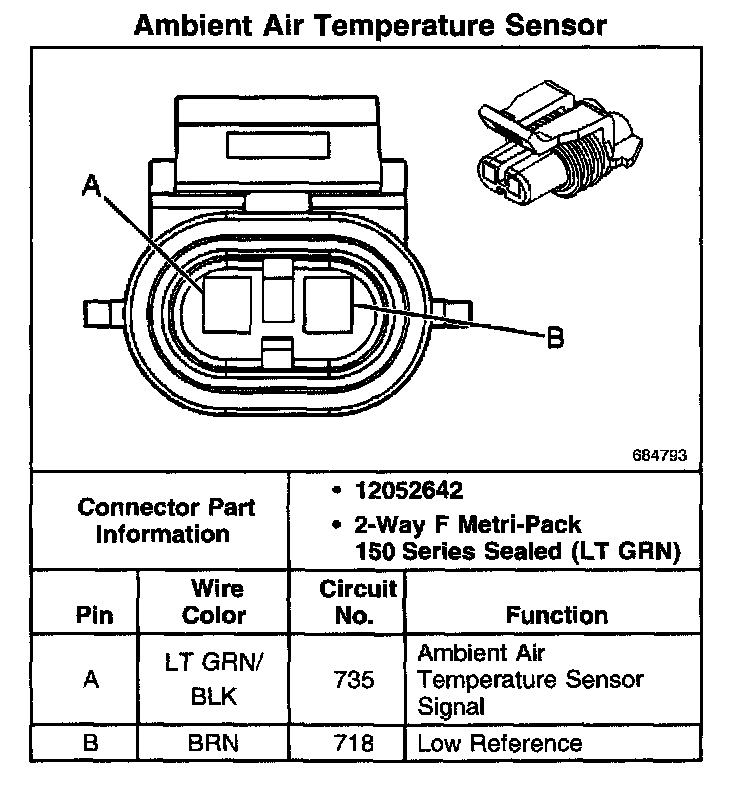

Ambient Air Temperature Sensor:
