Instrument Harness, Left I/P
Instrument Harness, Left I/P

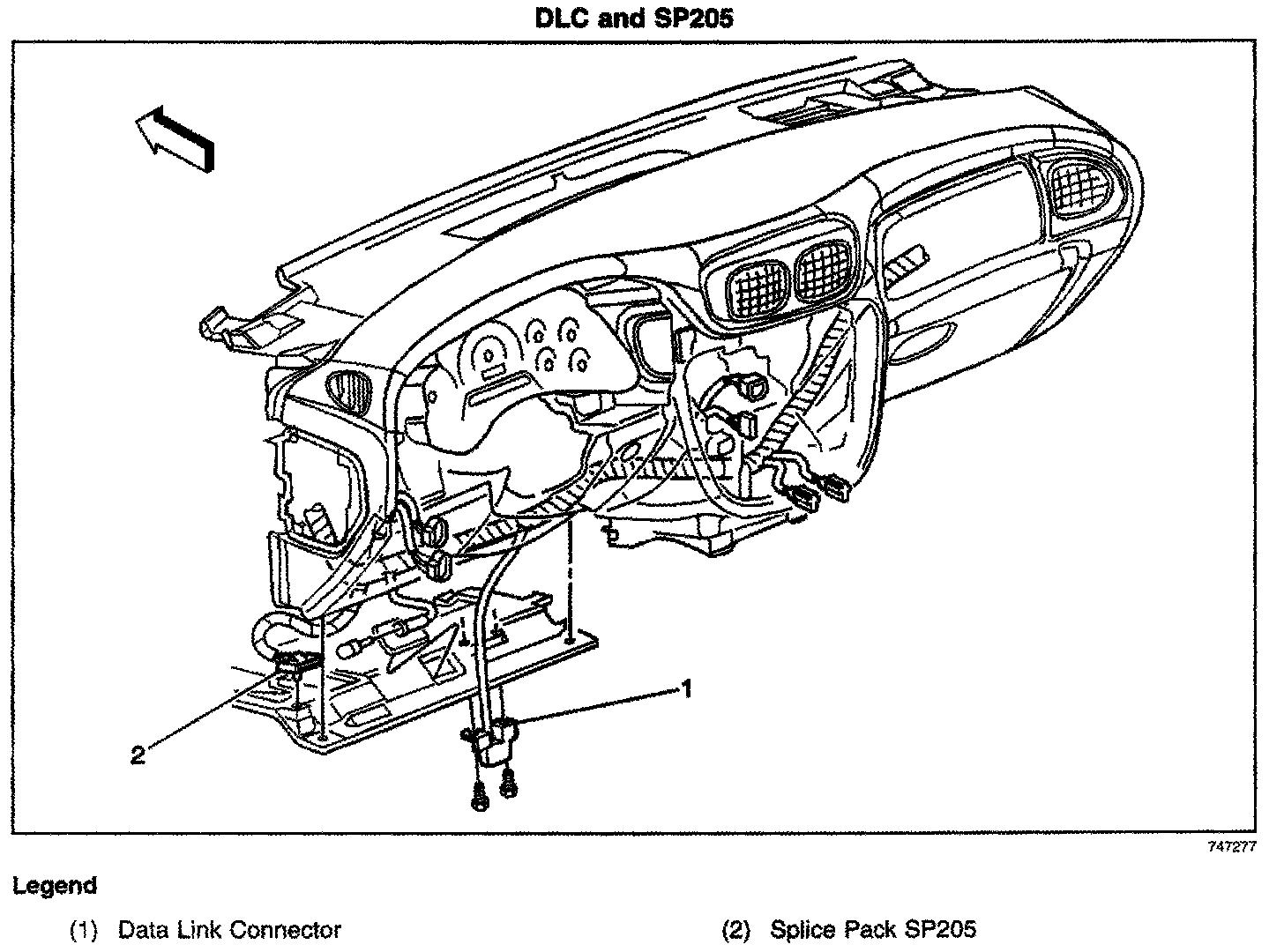

Harness Routing Views (Instrument Harness, Left I/P):
Locations View:
