Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Instrument Panel (I/P) Compartment Lamp Inoperative
Instrument Panel (I/P) Compartment Lamp Inoperative

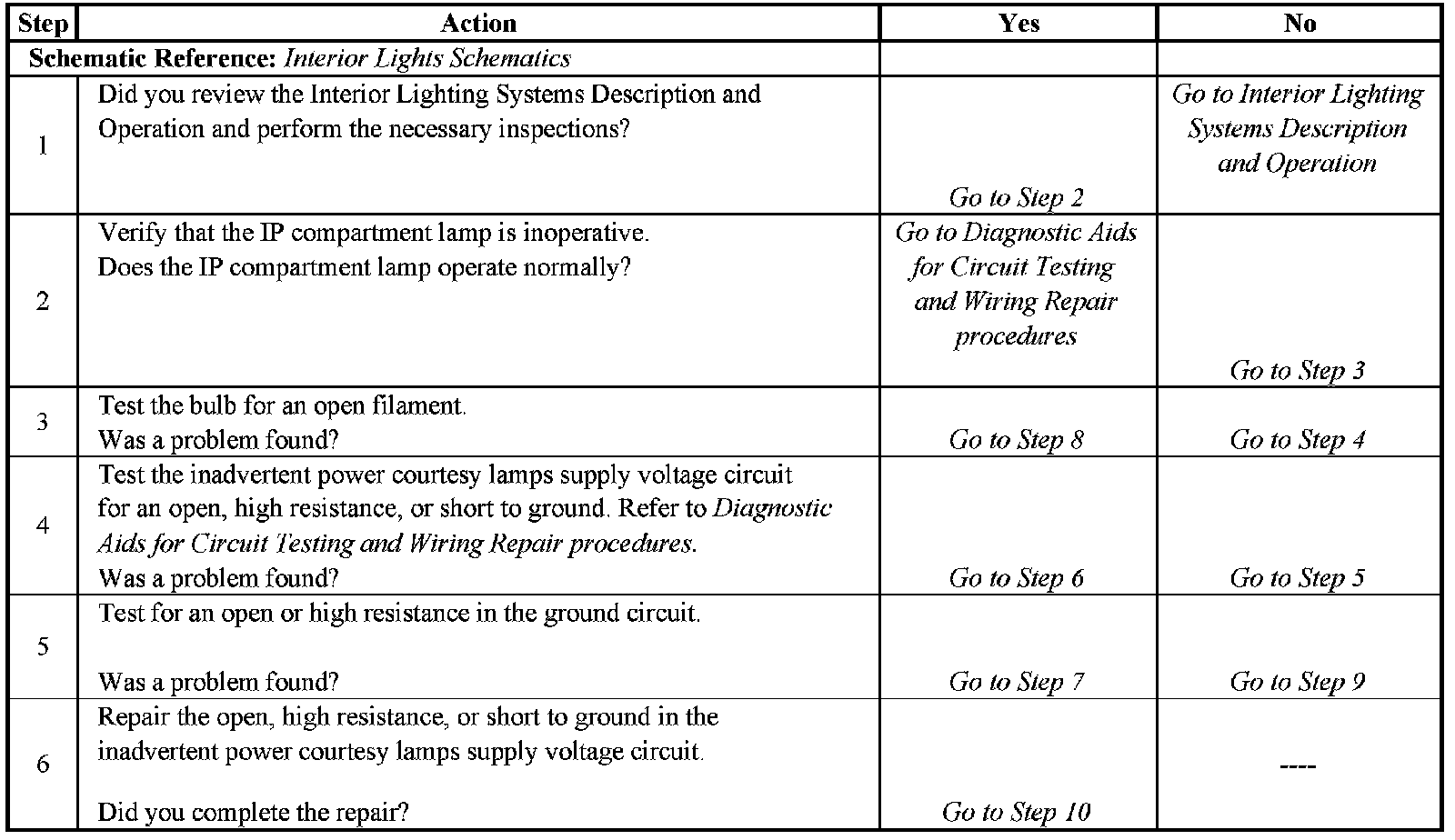

Instrument Panel (I/P) Compartment Lamp Inoperative - Steps 1-6:
Instrument Panel (I/P) Compartment Lamp Inoperative - Steps 7-10:
