Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move With Brake Pedal Depressed
Shift Lever Does Not Move with Brake Pedal Depressed
Test 1-5

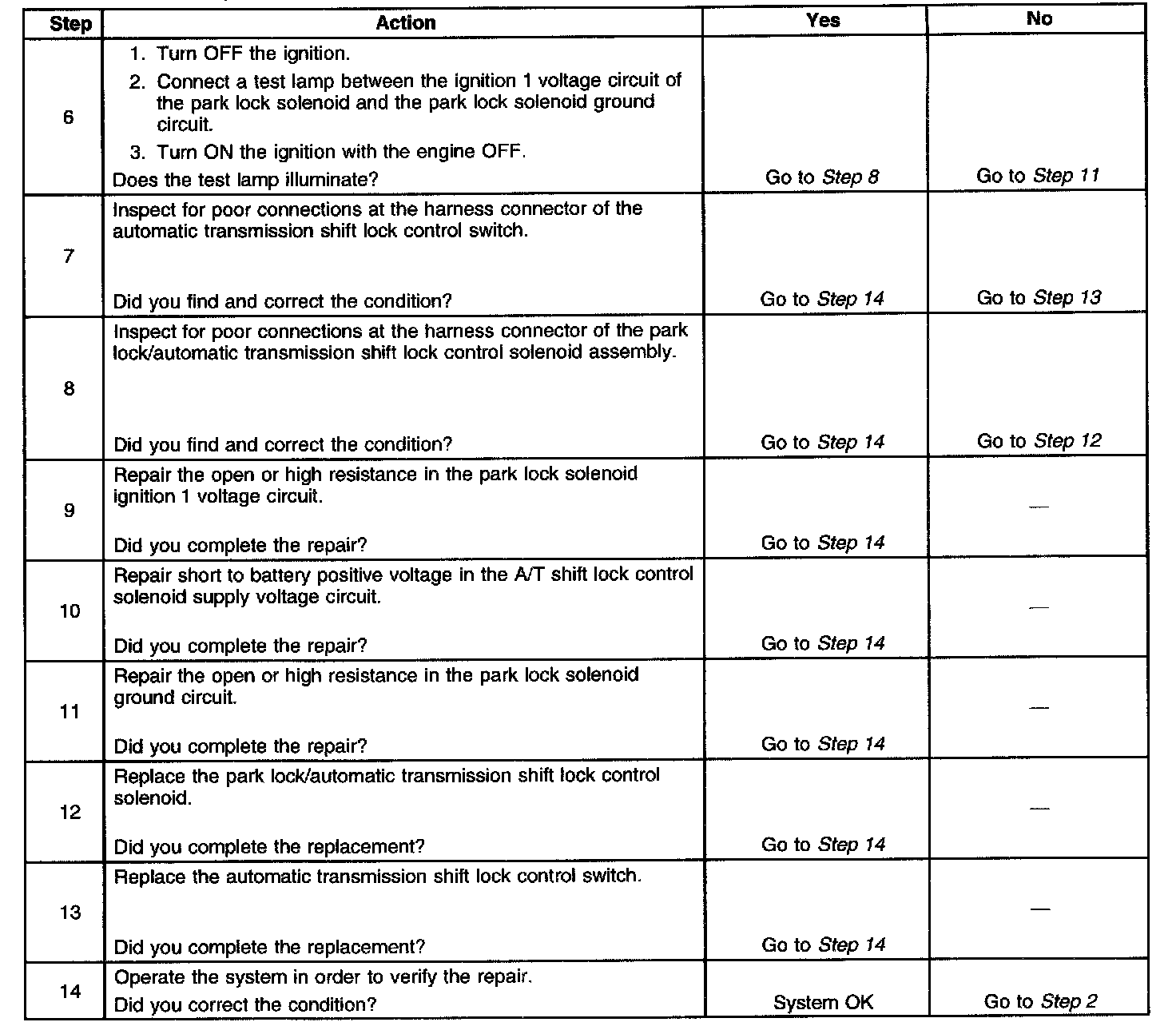

Test 6-14
