Wipers Inoperative - One or More Modes

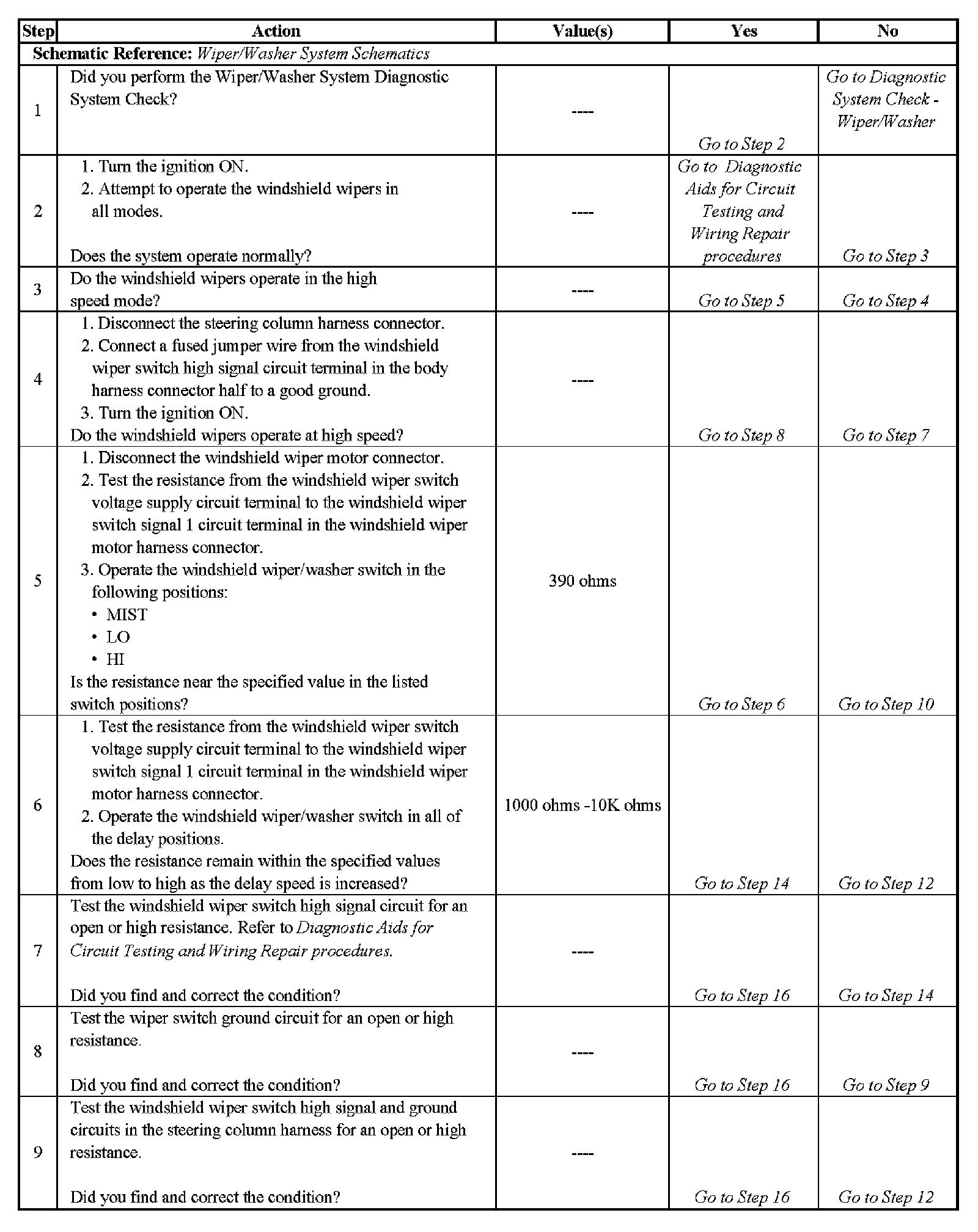

TEST DESCRIPTIONWipers Inoperative - One Or More Modes - Steps 1-9:
Wipers Inoperative - One Or More Modes - Steps 10-16:
The numbers below refer to the step numbers on the diagnostic table.
5. This step tests for continuity through the 390 Ohms resistor in the windshield wiper/washer switch.
6. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from low to high as the delay speed is increased.
