C309 (Long Wheelbase)
C309 (Long Wheelbase)

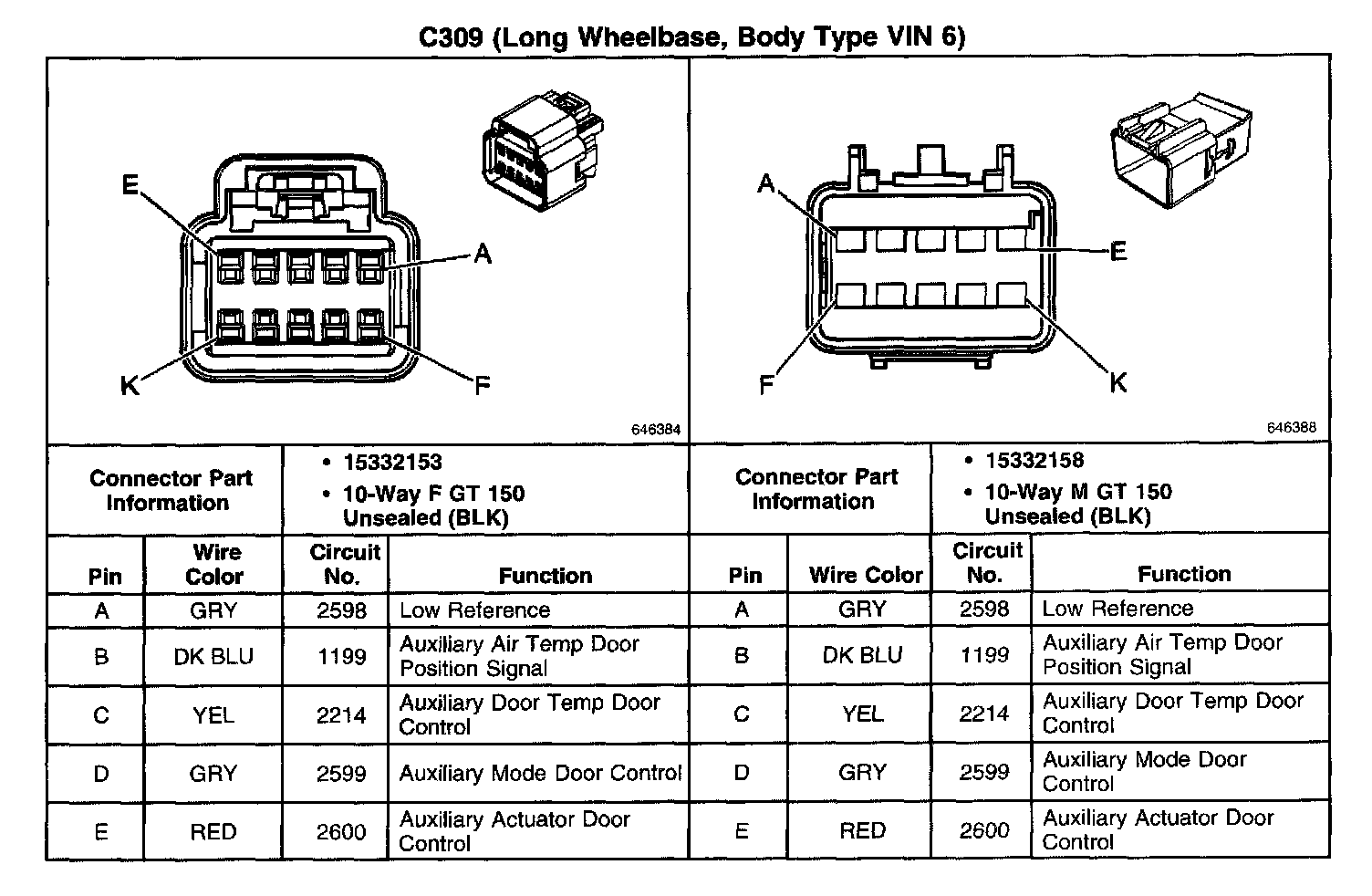

C309 (Long Wheelbase Body,Type VIN 6) Part 1:

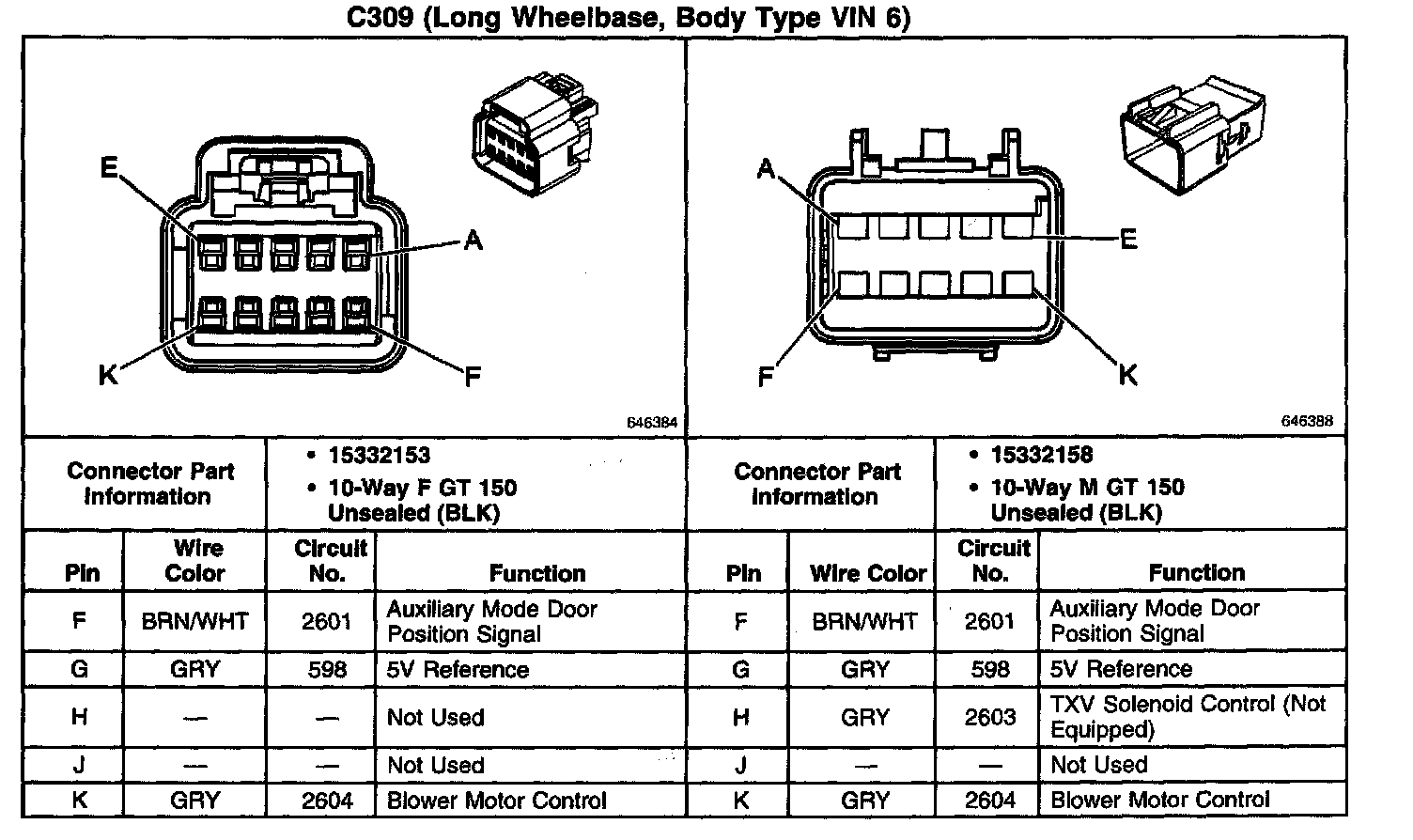

C309 (Long Wheelbase, Body Type VIN 6) Part 2:
