Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Lumbar Adjuster Switch - Driver (W/Memory Seat)

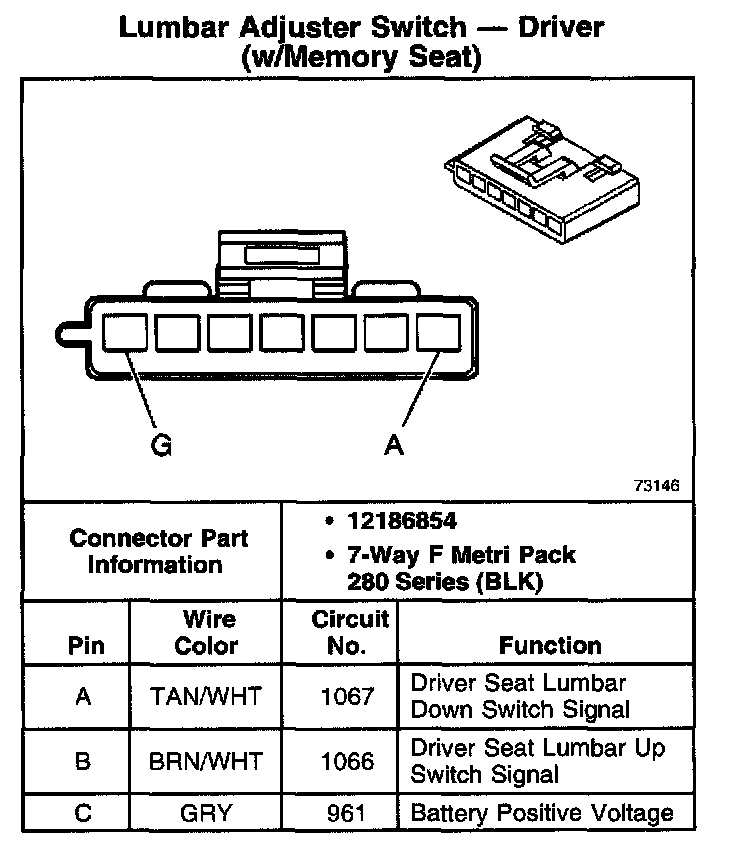

Lumbar Adjuster Switch - Driver (W/Memory Seat)
Lumbar Adjuster Switch - Driver (W/Memory Seat) Part 1:
Lumbar Adjuster Switch - Driver (W/Memory Seat) Part 2:
