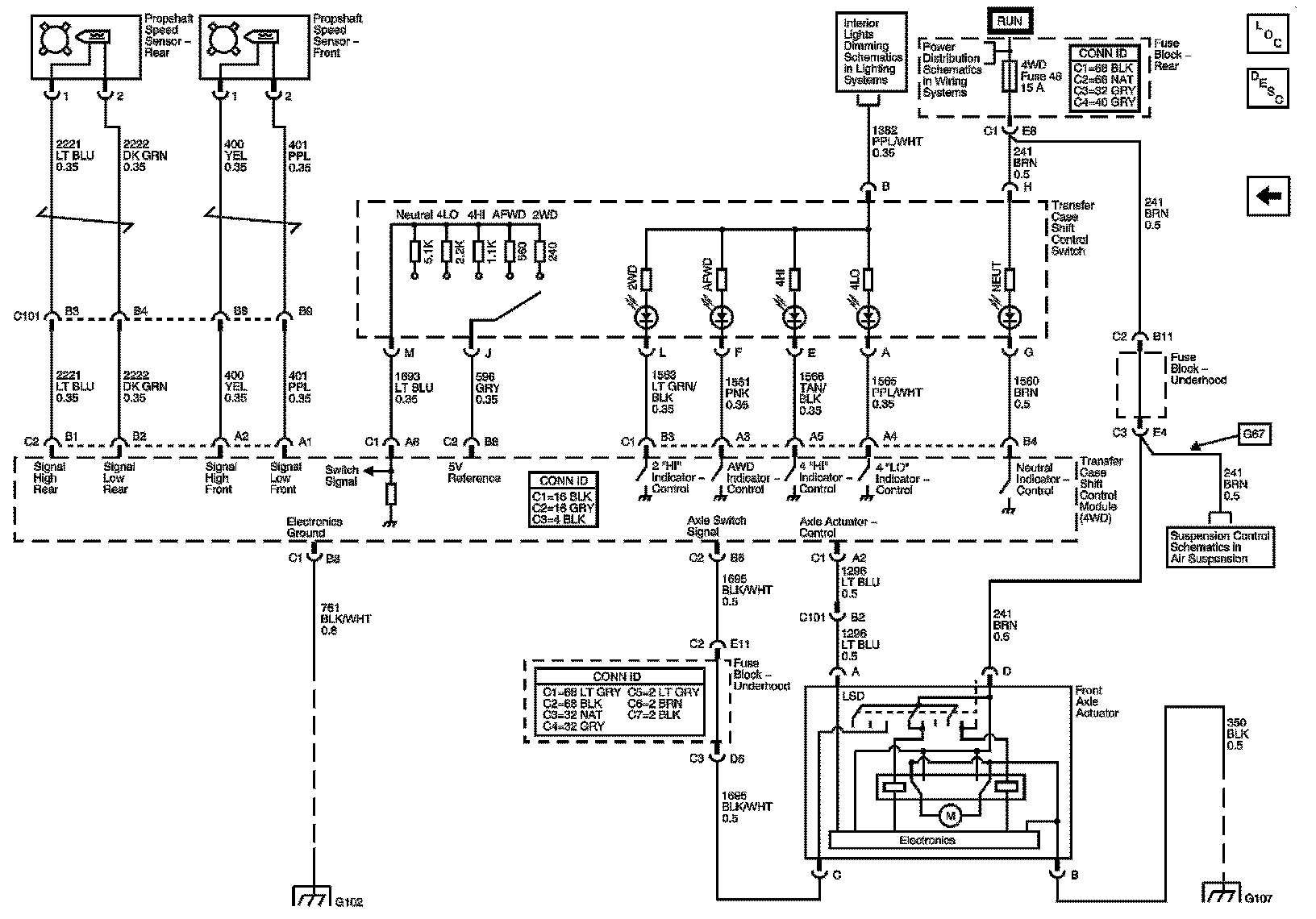

Transfer Case Control Schematics (Indicators, Speed Sensors, and Front Axle Actuator)
Transfer Case Control Schematics (Indicators, Speed Sensors, and Front Axle Actuator)
