Chevy Truck
>>
2002
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Quarter Glass Actuators
Quarter Glass Actuators

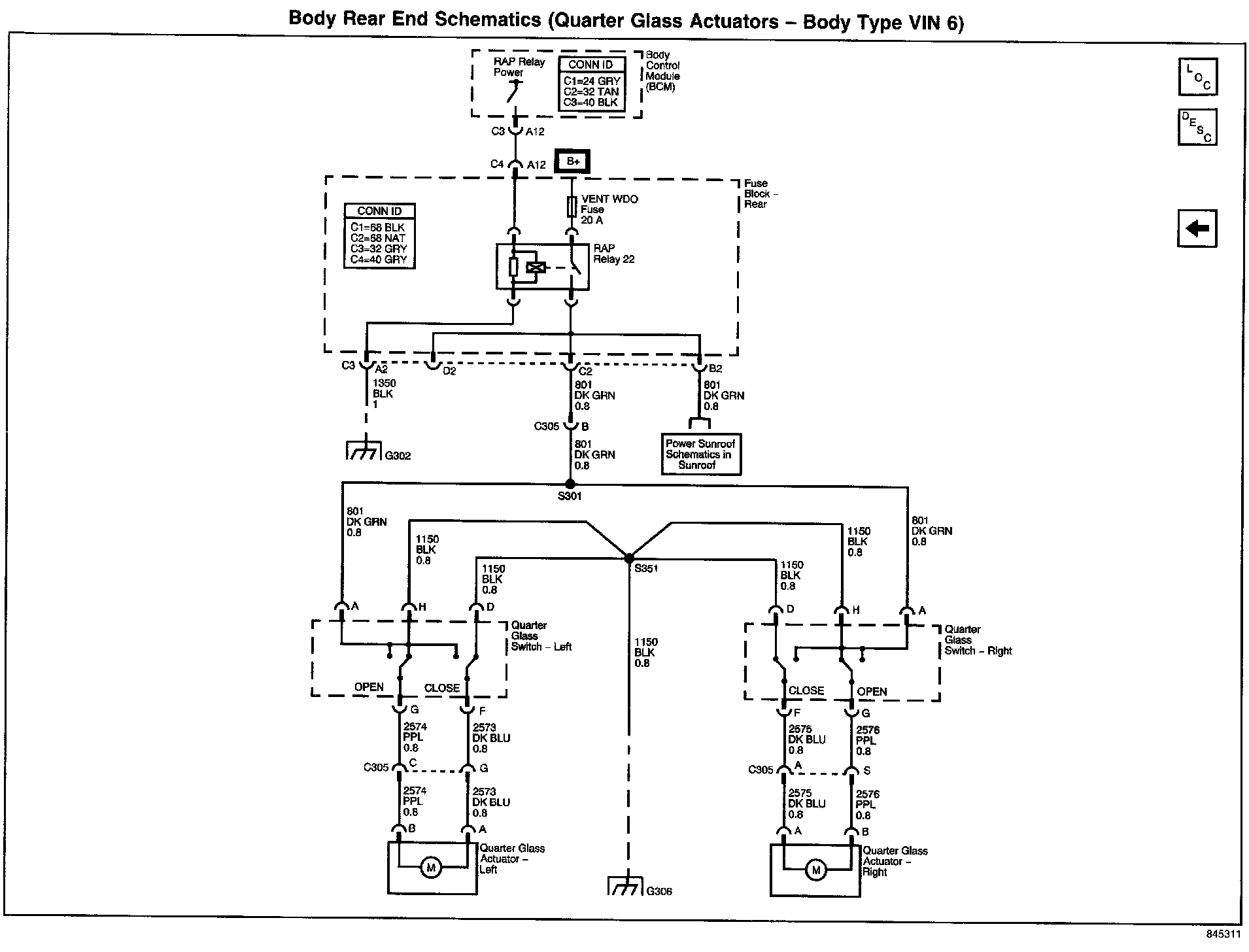

Body Rear End Schematics: Quarter Glass Actuators - Body Type VIN 6:
