Courtesy Lamps Inoperative
Courtesy Lamps Inoperative - Steps 1-4:

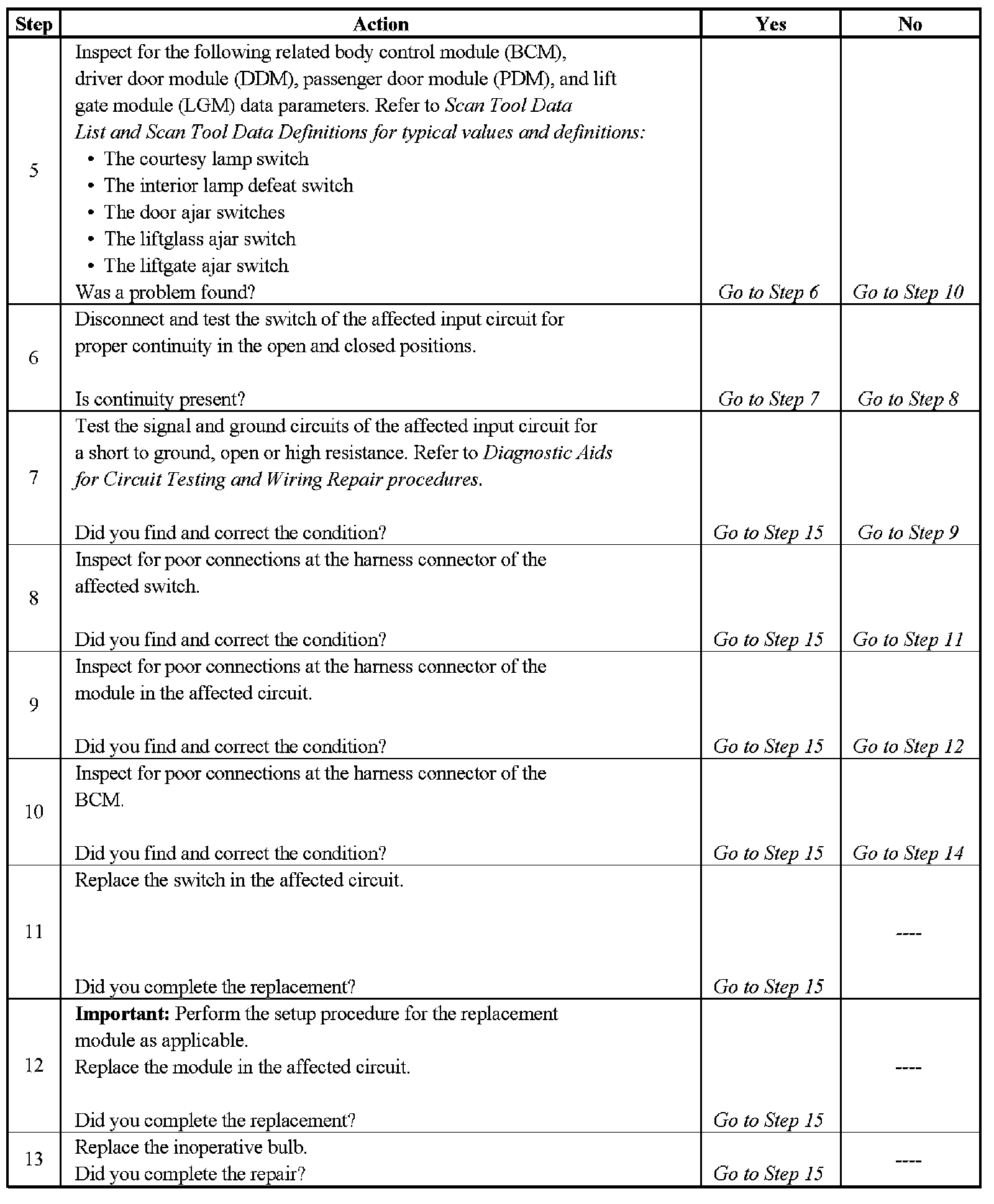

Courtesy Lamps Inoperative - Steps 5-13:

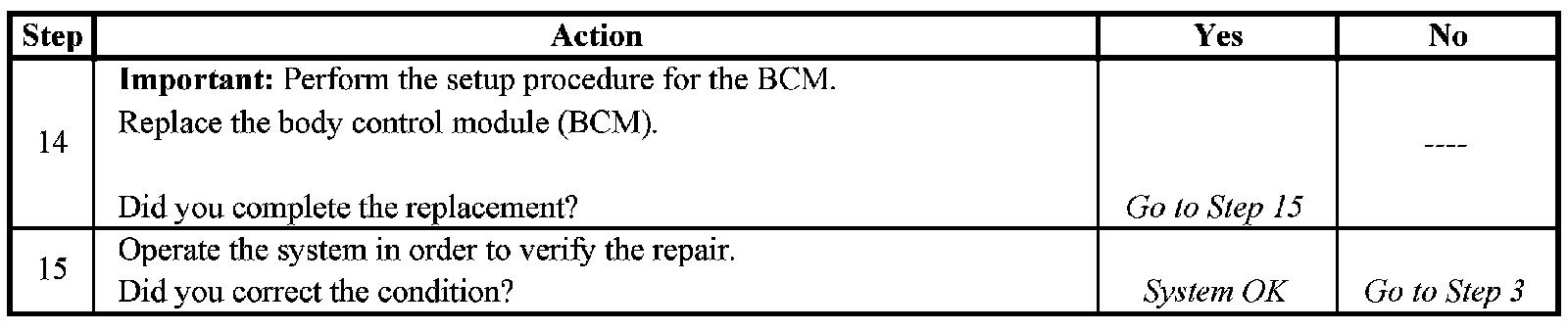

Courtesy Lamps Inoperative - Steps 14-15:
