Transfer Case: Locations

Transfer Case Control Component Views





Engine, Lower Right

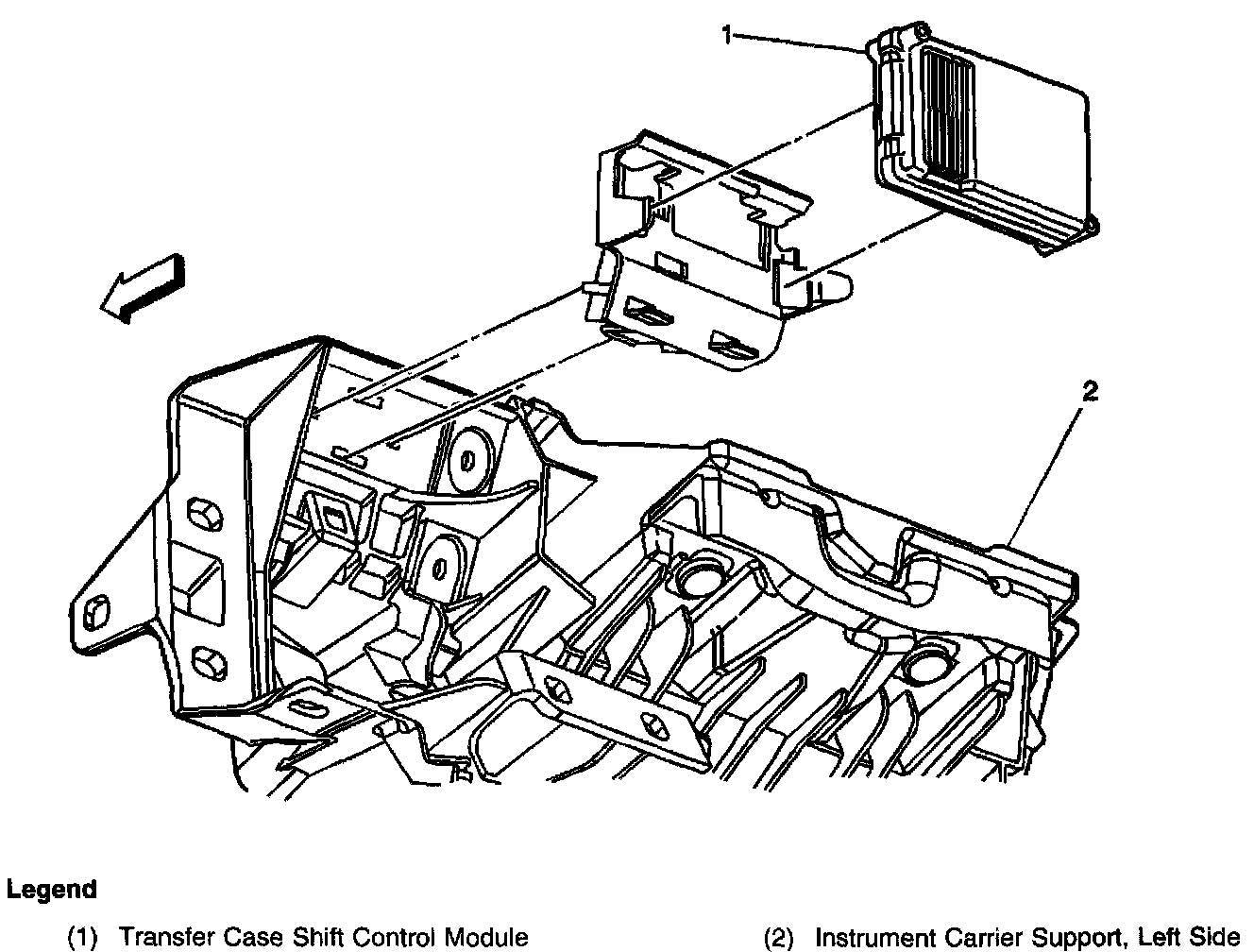

Instrument Carrier Support, Lower Left

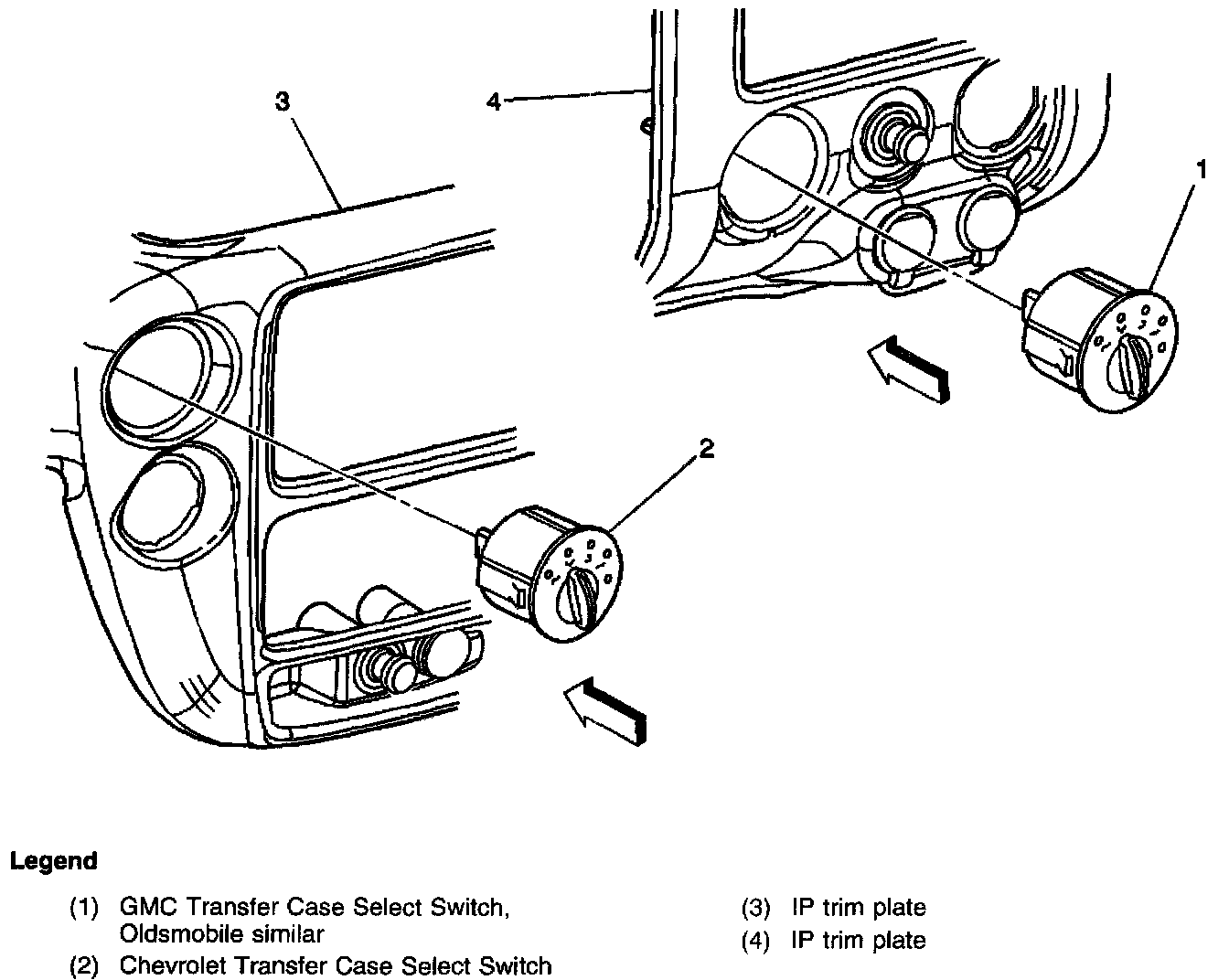

Transfer Case Select Switch





Transfer Case
