Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

IMPORTANT:Perform the following in order to avoid misdiagnosis.
- Inspect for proper operation of brake lamps.
- Inspect throttle linkage for mechanical binding which could cause the system to malfunction.
- Inspect cruise control cable adjustment, should have minimum slack.
- EMI on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
The vehicle speed is greater than 40 km/h (25 mph).

TEST

Steps 1 - 3:

Steps 4 - 8:

Steps 9 - 15:

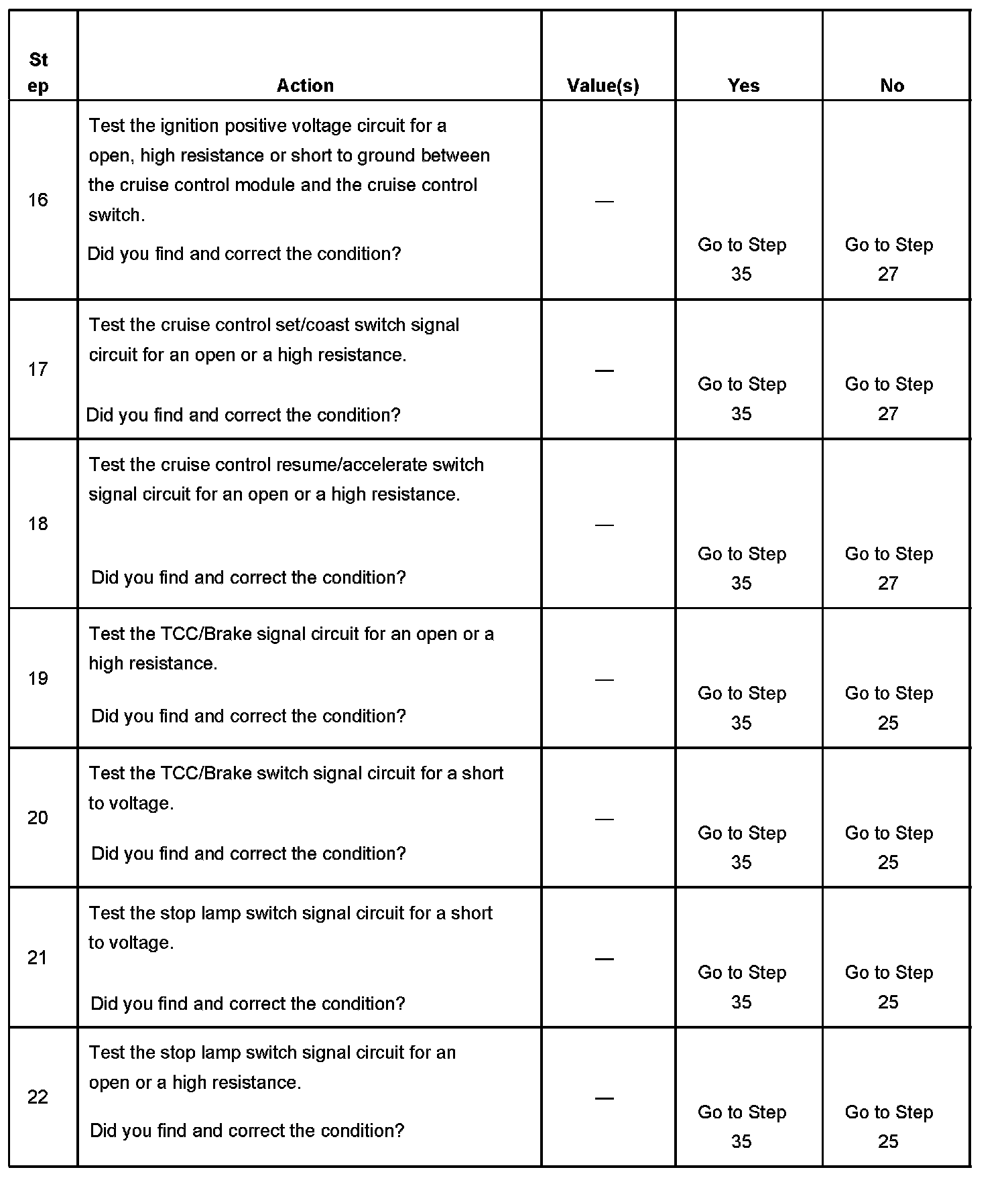

Steps 16 - 22:

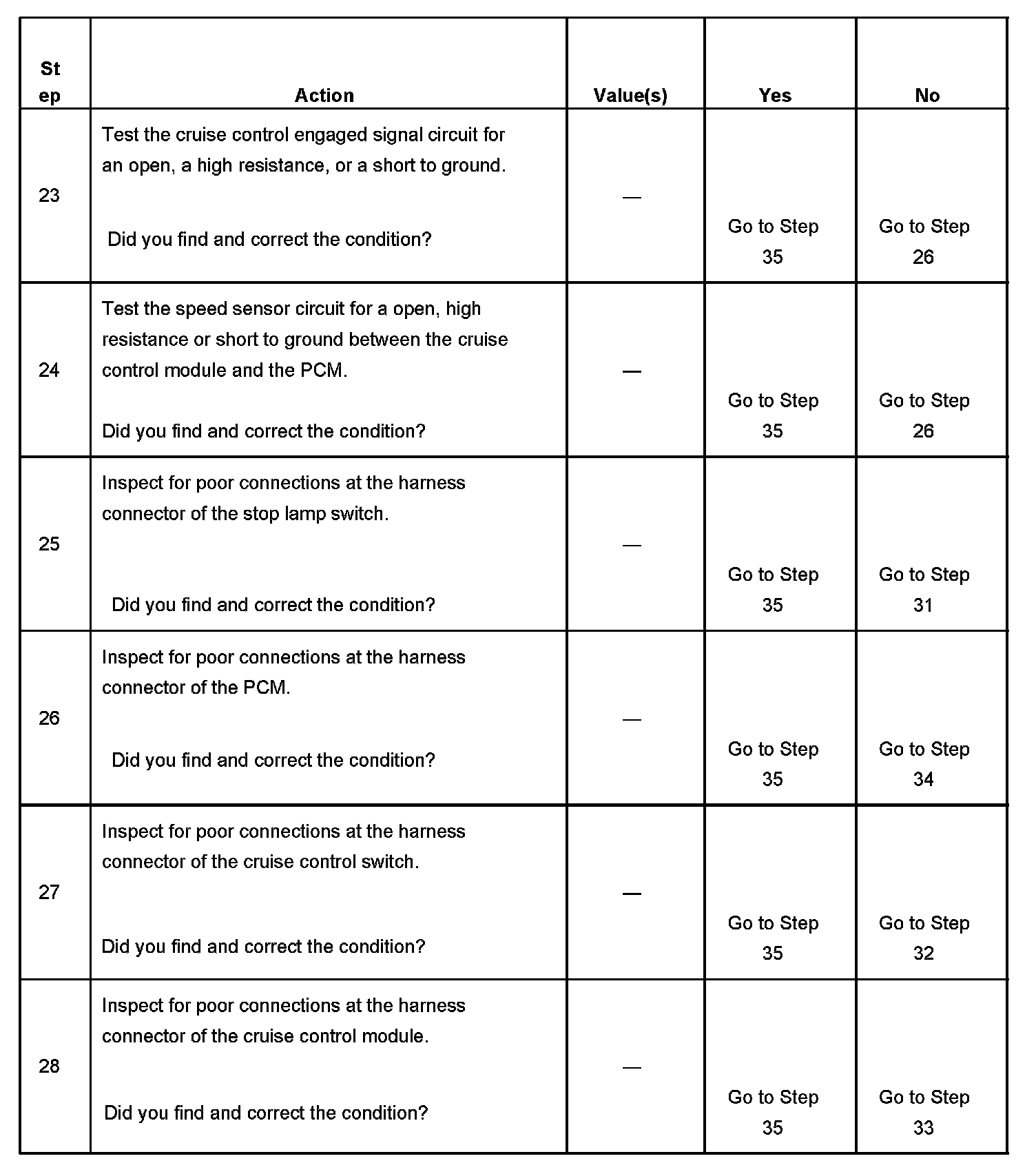

Steps 23 - 28:

Steps 29 - 35:
